Auralex Studiofoam Wave Panels

Auralex Studiofoam Wave Panels
0.0

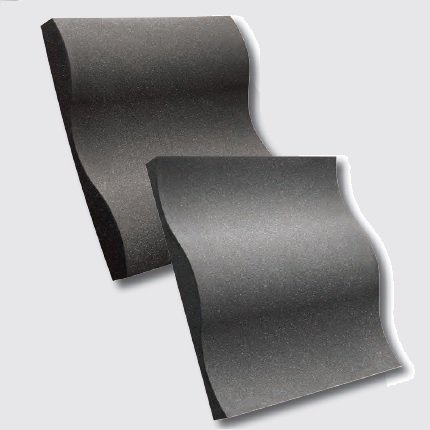

Studiofoam Wave Panels feature a dynamic wave pattern that rises from 1" to 3" thickness which helps control unwanted mid or high-frequency reflections and standing waves in a variety of professional and residential settings.

PRICED PER CASE:

  • 16 PANELS PER CASE
  • 64 SQ. FT. COVERAGE PER CASE
  • PANEL DIMENSIONS: 2' X 2' X 3"
  • AVAILABLE IN CHARCOAL

FREE SHIPPING! See Shipping and Returns Tab below for additional information.

Price: $469.99
Qty
Save to wishlist
Made in USA
SKU AUR-SFWAVE
Description

Studiofoam Wave Panels offer an upscale alternative for low-cost soundproofing.  Wave panels are made from solid, open-celled Polyurethane, designed using special Eco-friendly materials which cause less global warming emissions and boast improved performance and durability over conventional petroleum-based foams.  Studiofoam meets or exceeds the requirements of the demanding professional in terms of both product quality and testing data, both acoustical and flammability (see Product Data Tab for acoustical testing data.)

The unique, undulating pattern of the Wave panels, help reduce excessive reverberation and flutter echo in both home and professional mixing rooms, leaving you with a pleasing, natural sound.  Panels rise from 1" to 3" thickness providing smoothly varying absorption across the frequency spectrum, lending a controlled sense of openness to your acoustic space.

Studiofoam panels are painted throughout the material thus ensuring a uniform color even when trimming of cutting panels to fit your decor'.  Panels are flexible and easy to trim preferably with an electric carving knife for optimal, aesthetic appeal.  Panels are uniformly cut thereby providing a seamless installation and professional appearance.  Installation is easy using either Foamtak Spray Adhesive or Tubetak Pro Adhesive

Features:

  • NRC rating: .80
  • Controls harsh high-frequency reflections and flutter echoes.  Lends a controlled sense of openness to your space.
  • Class B Fire-Rating
  • Produced with special Eco friendly materials for 36% less green house emissions and dependency on fossil fuels
  • Improved performance and durability over conventional solvent foams
  • Withstands environmental conditions - won't crumble over time
  • Flexible, bounces back to shape when pressed against

Applications:

  • Project Studios
  • Vocal Booths
  • Live Rooms
  • Listening Rooms
  • Home Theaters

FREE SHIPPING!  See Shipping and Returns Tab above for additional information.

For our extensive lineup of Auralex soundproofing panels, click here.

Product Data

For a printable version of Product Data for Studiofoam Wave, click here.

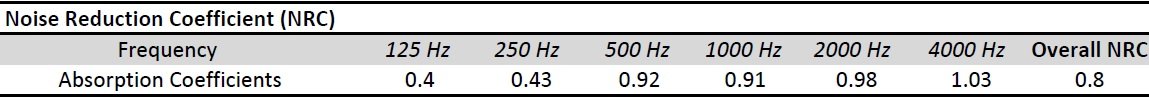

Acoustic Performance:

Studiofoam Wave Acoustic Performance

Cleaning and Maintenance Information:

Since Studiofoam is an open cell material, we strongly advise against getting it wet.  Any moisture trapped in the cells can mold and create more cleanliness issues, although it will not affect performance.  For cleaning the foam you can dry dust or use an upholstery attachment on a vacuum cleaner.

Installation Guide

For a printable version of Installation Instructions for Auralex Studiofoam Panels, please visit.

  • Prior to mounting, mark desired panel locations on the wall with small pencil marks or masking tape.
  • If you need to cut your Studiofoam, it is recommended to use a straight edge and an electric carving knife.  Don't force the knife; let the blades do the work.

EZ-Stick Pro:

Clean attachment points on the wall surface with Isopropyl alcohol (avoid household cleaners), wipe gently and let dry.  Separate the EZ-Stick Pro Tabs from each other.  Remove one of the paper release liners from the strip.  Apply the tabs on the rear of the panel near the outside edges, orient vertically for maximum holding strength.  Remove the second paper release liner from the backside of the tab, position the panel with the target location on the wall and press firmly to attach.  Use 4 tabs for a 2'x2' Studiofoam panel and 6 tabs for a 2'x4' panel.

Tubetak Pro Liquid Adhesive & Foamtak Spray Adhesive:

Both are contact adhesives, so wait a period of time after applying it to the back of the panel before trying to adhere the panel to the wall.

  • Tubetak Pro (caulk gun required) typically works better if it is spread thin, use a putty knife if needed.  If the adhesive seems to take a while to dry (cure time can be dependent on humidity and other environmental factors), you may consider supporting the panel in place with a T-pin or finish nail.
  • If you are using Foamtak (US only), hold the can 12 to 18" away from the Studiofoam and shake the can from side to side to yield a spider web pattern.  For best results apply to both surfaces, allow 45 seconds to tack and then apply.  For a more temporary bond apply the Foamtak to one surface only.  Storing the Foamtak upside down between applications may allow a more consistent spray pattern.  You can use the Studiofoam carton as spray shields for a cleaner installation.  Stacking two Studiofoam cartons can provide a convenient work surface.

TEMP Tabs:

TEMP Tabs are a semi-permanent mounting kit that is a great way to temporarily install your Studiofoam.  Removing the tabs causes some minimal damage to walls that may require spot repairs.

Other Mounting Options:

  • T-Pins or Finish Nails can be used to tack the panels in place for a quick installation with minimal wall damage.  Sometimes larger nails or panel movement can cause the foam to tear, so this is usually best as a temporary installation method.
  • Studiofoam can be mounted to a backing (such as pegboard, Corex, cardboard, plastic, plywood, etc) before installing it on a wall.  This assembly allows for added durability when relocating/repurposing Studiofoam panels.

Notes:

  • EZ-Stick Pro Tabs may not adhere well to some vinyl wallpapers.  Apply to surfaces above 50° F (10° C).  Adhesive could soften and lose adhesion above 105º F (40° C).  EZ-Stick Pro Tabs are considered permanent and will damage the wall surface when removed.
  • Both Tubetak Pro and Foamtak are considered permanent installations.  Removing a panel after the adhesive has cured can result in some damage to the Studiofoam and the mounting surface.  Auralex is not responsible for any damage to walls, floors, ceiling or the overall structure that occurs doing installation or removal of our products.  Try using a flat edge knife to carefully scrape the panel away from the wall to minimize tearing, and then use a citrus-based adhesive remover.
Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product usually ships within 4-7 days.
    • FREE SHIPPING on this product - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
  • Returns:
    • We will accept returns up until 60 days from the date of purchase.  The boxes need to be unopened with no damage and a 25% restocking fee will be charged.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • We will provide you with a shipping address when giving you an RMA number.
    • Return shipping is customer's responsibility.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
