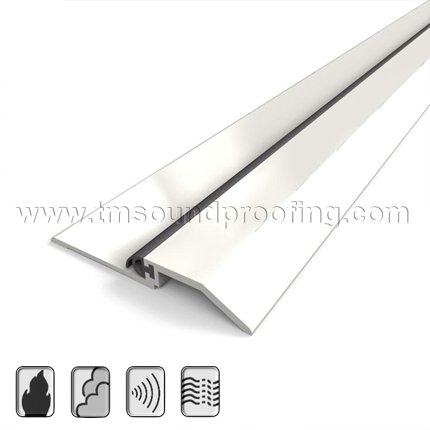

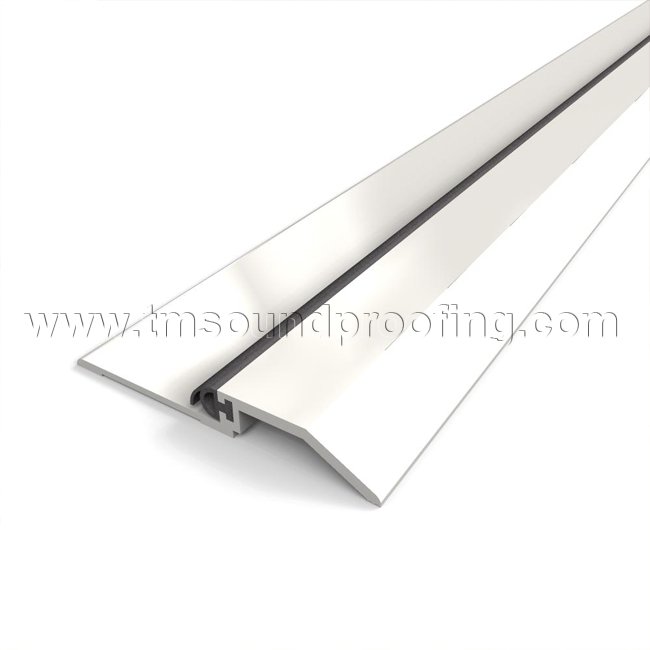

Soundproof Door Saddle 1/8" Height

Soundproof Door Saddle 1/8" Height

Heavy Duty Soundproof Door Saddle will seal gaps from 1/8" to 1/2" gap. Neoprene rubber gasket compresses against door to create a soundproof seal. Available in Aluminum Mill Finish, in standard stock sizes.

Special Discounts apply to orders over $500.00! See Product Descriptions for details.

Price: $39.99
Save to wishlist
Made in USA
Fast turnaround

This solid, heavy gauge, sound rated door saddle with a neoprene gasket is great for sealing the gaps at the bottom of doors. The saddle fits under doors with a small gap clearance of 1/8” and up to 1/2" and features an enhanced neoprene bulb and finger gasket. The protruding rubber finger design ensures an airtight seal, even when door is misaligned due to natural warping or poor installation. Saddle is smoke and fire rated.

Saddle is made of .125” thick aluminum, and has passed the ANSI Standard Load Test to prevent bending and warping, even through constant usage. For extra protection (ideal for commercial traffic) Full Body Strength option is offered. Epoxy abrasives can also be applied to create a non-slip surface, ideal for environments where moisture is present. Contact us at 845-388-1200 for details and pricing.

A Note on FinishesAluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. All Zero's anodized products are anodized to 204 (dipped four times).

Installation instructions and screws provided.

Additional Options: Additional Finishes (Dark Bronze Anodized and Bronze Mill Finish) and Custom Sizes up to 120" is available for purchase through our office. Please contact us at 845-388-1200.

Saddle and Door Bottom Combined:

This saddle can be used on its own, or for maximum sound-control properties, can be combined with other products. The specially designed shoulder on this saddle can accommodate our best-selling surface mounted soundproof door bottoms. The saddle would boost door bottom performance if the door bottom is used over an even surface, such carpet. You should also consider using this saddle if door is placed over an uneven surface (you can use acoustic caulk for slight gaps between the floor and saddle).

Before Completing You Order:

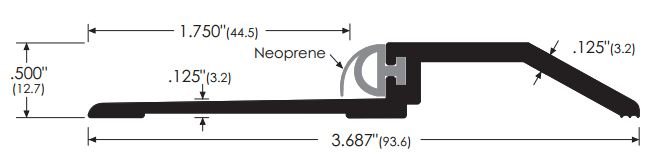

Ensure your door is compatible; The bottom of your door will need .125" clearance from the floor and not more than .5” inch. For exact measurements, see our product specs. Measure the length of your door and select the necessary size above.

Special Discounts on Our Door Hardware:

No Coupon Code Needed. Discount automatically applied when added to shopping cart.

Spend $500.00, get 5% off plus free shipping
Spend $1000.00, get 10% off plus free shipping

See our Monthy Specials and Discounts for more great Soundproofing Savings!

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Installation Guide

Installation Instructions - Soundproof Threshold,

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Standard stock sizes (available above) ships within 1 business day.
    • Before purchasing large quantities please call our office to verify stock.
    • For custom options purchased through our office, please allow  7-14 business days to ship.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.
  • Returns:
    • Product can be returned if in brand new condition up to 30 days from date of purchase.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. Return address will be provided along wiht RMA number.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.

Send to friend
: *
: *
: *
Related products
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
  • Easy To Install (3)
  • Attractive (2)
  • Heavy Duty (2)
best uses
  • Interior Doors (3)
  • Exterior Doors (1)

Reviewed by 3 customers

Displaying reviews 1-3

By W

from D.C. Met. Area

About Me Casual Do-It-Yourselfer

Verified buyer
Perfect solution for a front door with a gap underneath
  • Attractive
  • Easy To Install
best uses
  • Exterior Doors
  • Interior Doors
Comments about Soundproof Door Saddle 1/8" Height:
I got the door saddle cut to the size of my door opening at a local hardware store and installed it on a stone entranceway with one strip of double-sided tape. It works perfectly, and I like the free movement that I now have when I open the door - the door sweeps I had been using would rub against my hallway floor because it's slightly uneven. I also spray-painted the aluminum bar with black paint to match the color of my stone entranceway. It functions well and looks great.
Bottom Line Yes, I would recommend this to a friend

By Framo

from Wooster, Ohio

About Me Avid Do-It-Yourselfer

Verified buyer
Worked like a charm
  • Easy To Install
  • Heavy Duty
best uses
  • Interior Doors
Comments about Soundproof Door Saddle 1/8" Height:
Seal door bottom for recording studio
Bottom Line Yes, I would recommend this to a friend

By ts

from brooklyn, ny

About Me Professional

Verified buyer
  • Attractive
  • Easy To Install
  • Heavy Duty
best uses
  • Interior Doors
Comments about Soundproof Door Saddle 1/8" Height:
provides goos seal on base of door in conjunction with auto closer
Bottom Line Yes, I would recommend this to a friend
Displaying reviews 1-3
Recently Viewed

Customers Questions and Answers

1) Gabe J: Hello, I purchased one of your 1/8th inch soundproof door saddles, and I have an installation question. Should the top of the saddle run underneath the door stop, or should I cut the saddle so that it fits within the door stop? It would be easy to cut an extra .25" or so off the bottom of the door stop, and just install the saddle with the top of the saddle sitting underneath the door stop, and I think it would look neater.

Trademark Soundproofing Reply: Hi Gabe, Either way would work fine for sound control, just run a bead of clear silicone between the saddle and the door stop moulding for a complete seal.

2) Yvonne R: I had a double door, one is stationary, but can be open if I wanted. the other one is for open & closing. Can I buy the 2 of 36" put one to each door.

Trademark Soundproofing Reply:

Hi Yvonne, You can do that. Alternatively you can contact us and we can have a custom size done for you which will be one piece long enough for both doors. Thank You.

3) Paul S: Hi Is this door saddle available in longer lengths to suit a double door? Thanks for your time Paul

Trademark Soundproofing Reply: Hi Paul, Yes it is. You can email or call us for pricing and to place an order.

4) david: Hello, does this get screwed to the floor or is it made to be glued? I need something that can be screwed into place. Thanks

Trademark Soundproofing Reply: This product comes with pre drilled counter sunk holes and screws.

5) Christina: Which allows for less sound transmission this threschold or an automatic gasket?

Trademark Soundproofing Reply: If you can keep a tight seal from the threshold to the door that would work.

6) Charles S: Can this soundproof door saddle 1/8" height be found in 8'-10' lengths?

Trademark Soundproofing Reply: Yes. Custom sizes can be placed with one of our sales reps. Please call the office 845-388-1200.

7) WL: Can this door saddle be installed over a stone entranceway with an adhesive agent?

Trademark Soundproofing Reply: Yes.

8) Noy: Can this be cut I need 30"? Thanks!

Trademark Soundproofing Reply: Yes. You can order a custom size please give us a call at 845-388-1200

9) Robert B: I am interested in buying thresholds, sku DSZ564A36. Is 36" the longest you sell? If so, I'm going to need 12 units. I'm hoping you offer longer thresholds. Please let me know. Thanks, Robert

Trademark Soundproofing Reply: Hi Robert. We offer custom sizing please contact our office at 845-388-1200

10) Nathan: Hello, wondering how this can be attached to a concrete floor?

Trademark Soundproofing Reply: You can drill holes and use concrete anchors to secure it.

11) Leesa: Would this work for an entryway between carpet and a wooden floor? the carpet is about 1/4" higher than the wooden floor.

Trademark Soundproofing Reply: If when you screw it down it will compress the carpet so that the saddle is more or less even at both ends, it will work.
