Acoustic Vision Lite - 4484

This product has been discontinued.

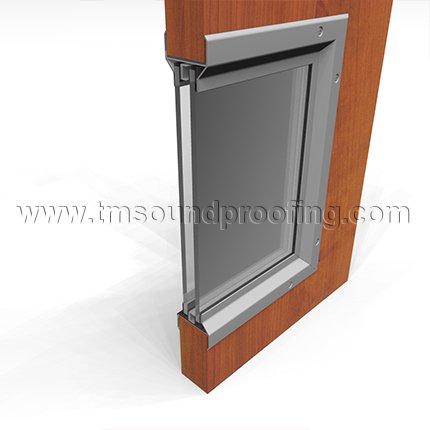

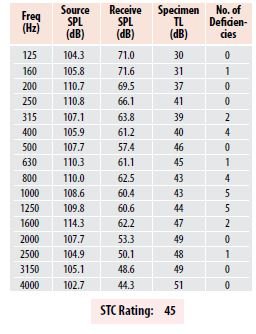

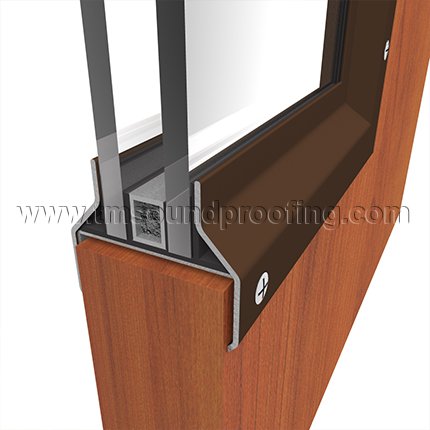

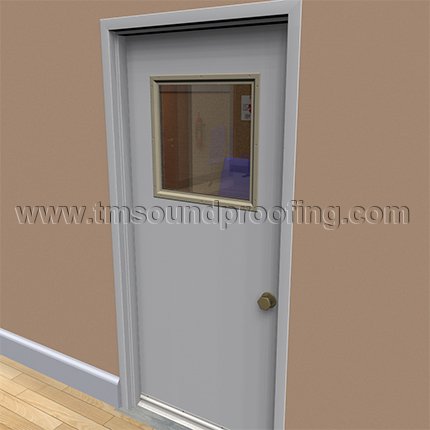

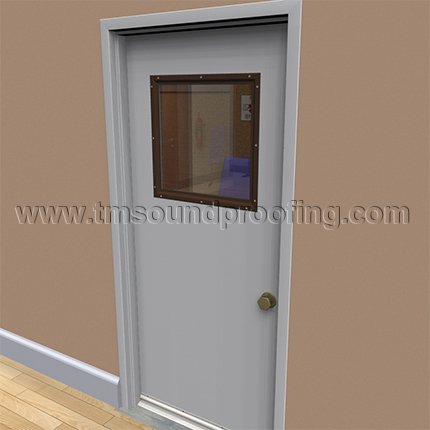

Acoustic Vision Lites - 4484 are designed to allow light flow between rooms for security and supervision purposes while maintaining excellent soundproofing control.  Made by combining an 18 gauge cold rolled galvannealed steel frame with STC 3003 acoustic material to form a heavy duty lite with which increases STC ratings by up to 6 points.

Geared for wood or metal doors that are 1.75" thick and side hinged. They can be installed to doors with thru-bolts (not provided) or screwed on each end with Oval Phillips #8 x 1/2" SMS.  Eight screws are provided with each Vision Lite.

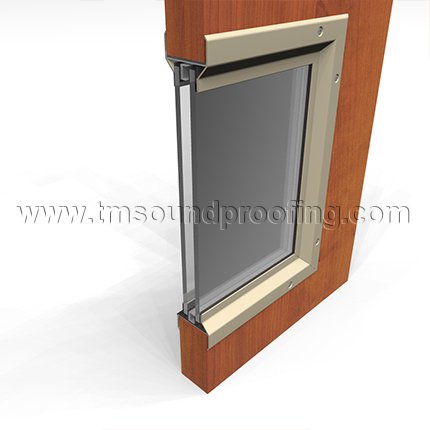

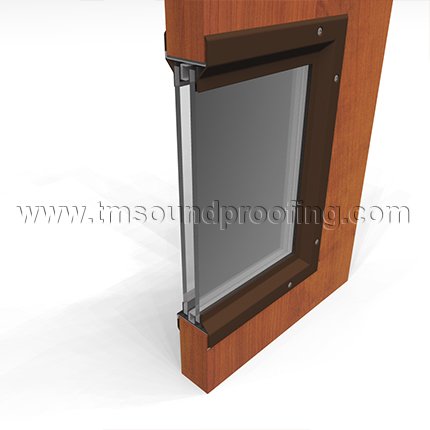

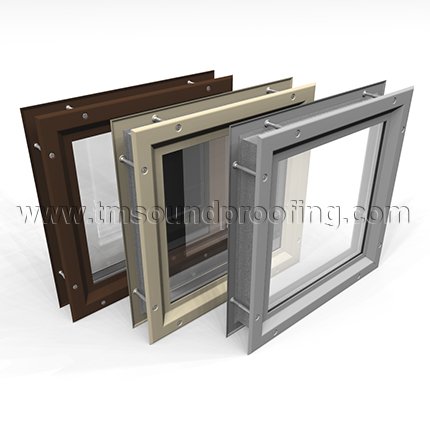

Available online in Gray, Bronze or Beige Powder Coat.  For custom color orders please contact us and we will be happy to give you a quote. Sizing online are standard stock sizes, for all other sizing needs please contact us for a quote.

Features:

• 18 Gauge Galvannealed Steel with STC 3003 acoustic lining
• Fits 1.75" Wood or Metal Doors
• Fits 2 sheets of 1/4" glass plates (sold seperately)
• Applies with Screws or Thru Bolts directly to door.
• Can be custom built to size.

Installation Screws:  High-style frame design for thru bolt application or can be screwed from both sides with Oval Phillips #8 x 1/2" SMS.

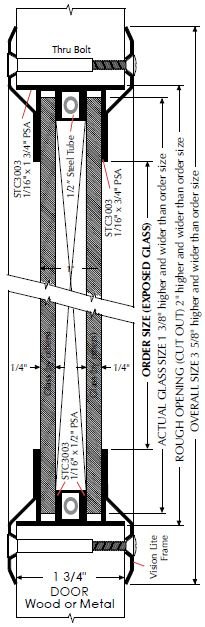

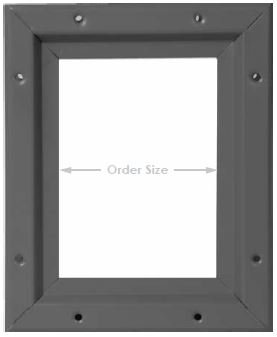

Order Size:  Dimensions of the exposed glass. See product specs.

Additional Sizing Available: Sizes available online are stock sizes.  Other sizes can be purchased with the following dimensions:  Width- 6" to 36", Length - 4" to 72".  For details and pricing, contact us or call us at 845-388-1200.

Additional Colors: Custom colors can be requested, contact us or call us for details and pricing.

Glass:  Glass is not included with frame.  Uses 2 sheets of laminated glass, 1/4" thick each (sold separately.)

This product has a 3 year guarantee against defects in material and workmanship.  Defective material will be replaced, however, no back charges for damage incurred or work done thereon will be allowed.

If you would like to soundproof an existing window see our window soundproofing curtain.
