1 LB Mass Loaded Vinyl
Click on arrows to scroll through images
Click on image to enlarge

1 LB Mass Loaded Vinyl

Mass Loaded Vinyl boosts soundproofing performance of by adding mass and preventing structure from vibrating. Made in the USA from virgin material, no odor.  Choose from our four size options:

  • 4' X 25'
  • 4.5' X 30'
  • 4' X 10'
  • 4' X 4'

24 HOUR FREE SHIPPING!

Price: $219.00
SKUMLV01x100
Weight 105.00 lbs
Made in USA
Fast turnaround
Dimensions:
Quantity:

Product Options:

  • 4' X 25' roll for a total coverage of 100 sq. ft.
  • 4.5' X 30' roll for a total coverage of 135 sq. ft.
  • 4' X 10'  roll for a total coverage of 16 sq. ft.
  • 4' X 4' roll for a total coverage of 40 sq. ft.

Features:

  • 1/8" Thickness
  • 1 LB. per square foot
  • 26 STC Rating (See Product Data tab for more details.)
  • Fire-Rated
  • Made in the USA
  • Virgin High Quality Material

1 LB. MLV is best used for:

  • Walls and ceilings
  • Under carpets to soundproof the ceiling of the room below
  • Wrapped around noisy pipes
  • Automobiles / Boats
  • Under Musical Instruments/Speakers
  • Wrap AC Vents / Light Fixture
  • Wrap around noisy pipes
  • Wrap around rattling machinery

How Much Do I Need:

Measure the square footage of the area that will need to be covered to determine amount needed. It is recommended to add an additional 10% to compensate for waste and overlapping of seams between studs.

Special discounted pricing applied when ordering 5 rolls or more. See above for details.

Additional Products to Consider:

FREE SHIPPING! Shipping is included in the price, see Shipping and Returns information to the right.

Printable Documents

Click to Print Mass Loaded Vinyl MSDS

Click to Print Mass Loaded Vinyl Product Data Sheet

What is Mass Loaded Vinyl:

Mass Loaded Vinyl adds mass to your walls, ceilings, floors, pipes etc without compromising on space. Provides instant mass with damping to any location. By adding mass to an existing structure, soundproofing properties are significantly boosted, since soundwaves cannot vibrate the structure easily.

Our 1 lb. Mass Loaded Vinyl has an STC of 26 when hanging by itself. Made in the USA from high quality virgin material.

1 LB MLV Sample Applications

  • 1 lb. Mass Loaded Vinyl is primarily recommended for use in floors, walls and ceilings.

  • MLV can be laid on the floor, tacked down and covered with carpet. For better performance see our Premium Carpet Underlayment.

  • Apply to wall and/or ceiling joists using mechanical fastners and cover with drywall.

  • Wrap Pipes with MLV for significant sound reuction, keep in place using plastic ties and/or PVC tape. For better performance see our Noise Damping Pipe Wrap.

  • Attach to outdoor wooden fences using roofing nails or screws with washers.

Physical Properties

Transmission Loss of MLV Chart

Transmission Loss of MLV

Transmission Loss of MLV Chart

Material Data

Material Data Chart for MLV

Click to Print Mass Loaded Vinyl Wall Installation Guide

Mass Loaded Vinyl can be applied to walls, ceilings, floors and structures to create a sound barrier. Mass is a critical component in sound control and works by simply stopping sound from being able to vibrate the structure due to its heavy weight.

Please read through the installation guide before installing your MLV.

STEP 1: MEASURE AND TRIM YOUR MLV

Figure 1- How to Install MLV

Measure your wall from top to bottom. Deduct 1/8” – 1/4” from total height.

Unroll your MLV on the floor. With a utility knife, use a straight edge ruler to cut a square edge evenly through the MLV. {See Figure 1}

You do not need to cut through the material fully, once it is scored, it will come apart easily.

The MLV can also be cut with a heavy duty scissor.

STEP 2: PREPARE YOUR WALL FOR INSTALLATION

Figure 1- How to Install MLV For superior soundproofing results, use Acoustical Outlet Backer Putty Pad around all electrical outlets and other obstacles. {See Figure 2}

STEP 3: APPLYING YOUR MLV


Figure 1- How to Install MLV This step requires the work of two people.

The MLV is applied over the fiberglass installation and beneath the sheetrock.

With the help of another, hold the MLV in place, starting at the upper corner of the wall. Ensure the sheet is straight along the ceiling and is evenly spaced between the floor and ceiling {See Figure 3}

Fasteners: Any type of fastener will work (especially if the MLV will be covered with drywall) we suggest roofing nails or screws with washers, however you can also use a pneumatic cap stapler.

Figure 1- How to Install MLV

Placement: Place fasteners every 8” along the top and bottom plate {See Figure 4} and down the length of the stud.

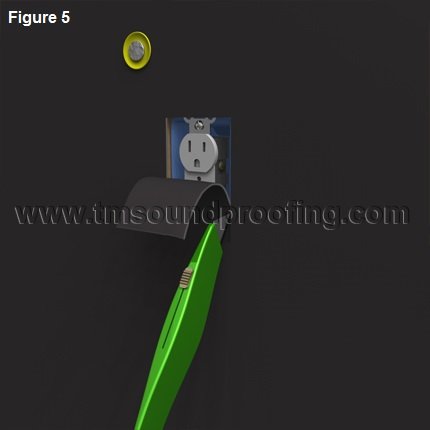

STEP 4: EXPOSE YOUR ELECTRICAL OUTLET BOXES

Figure 1- How to Install MLV

Be careful not to cover electrical outlets boxes. It is best to expose the outlets boxes as you install each length of MLV.

Find the electrical box in your wall and gently press the MLV against the box. Using a razor blade carefully cut the opening along the edges of the box. Keep this hole tight as possible to the electrical box so that you maintain a good seal. {See Figure 5}

Any extra gaps can be filled with Acoustical Caulk.

Continue as above until your entire wall or ceiling is covered in MLV.

STEP 5: FINISH YOUR SEAMS

Figure 1- How to Install MLV

Where MLV seams fall on a stud, butt pieces against one another on the stud and fasten into place. You can add a strip of PVC Tape on the seam. {See Figures 6 and 7}

We highly recommend that you end all MLV seams on a stud, as free hanging seams may come apart with time.


Figure 1- How to Install MLV
Figure 1- How to Install MLV

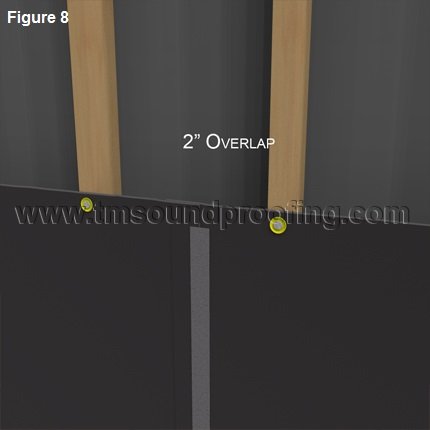

Where MLV seams falls between studs, overlap pieces by 2" and tape seams with PVC Tape or similar tape. {See Figure 8}

Figure 1- How to Install MLV

Notch the ends to lay flat. {See Figure 9}

Once all strips of MLV have been applied, drywall can be installed above it and you can be ensured a sound-secure structure! For more information about MLV, contact us or call us at 845-352-3200.

---

Shipping and Return information is specific to this product page only (not for other products on our site).
  • Shipping:
    • Product usually ships within 24 hours! Quantities may be limited, please call to verify stock before placing large orders.
    • FREE SHIPPING on orders over $75.00. There will be a $14.99 flat Shipping and Handling fee on orders under $75.00 - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.

  • Returns:
    • Product can be returned up to 60 days, if in brand new condition.
    • A 20% restocking fee will be applied.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A shipping address will be provided toghether with the RMA.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.


: *
: *
: *
