Noise Damping Pipe and Duct Wrap

Noise Damping Pipe and Duct Wrap
0.0

This Noise Damping Wrap consists of flexible Foil Faced Mass Loaded Vinyl Barrier laminated to a Quilted Fiberglass absorber / decoupler with Scrim Reinforced Foil on outer side. The barrier forms a thin, lightweight acoustical and fire rated product which can be used in many applications including HVAC Duct work, pipes and machinery.

  • 1 LB Barrier with 1" or 2" Fiberglass - 4.5' x 30' Roll (135 Square Feet)
  • 2 LB Barrier with 1" or 2" Fiberglass - 4.5' x 15' Roll (67.5 Square Feet)

FREE SHIPPING!

Price: $539.99
MLV Thickness
Fiberglass Density / Size
Qty
Save to wishlist
Note: you must order at least 2 items
Made in USA
SKU VP1-100
Description

TMSoundproofing's Pipe and Duct Wrap / Lagging is a multi-purpose composite material featuring a flexible, acoustic  Foil Faced Mass Loaded Vinyl Barrier laminated to an insulating and acoustic Quilted Fiberglass decoupler on one side. The fiberglass, available in 1" and 2" variations is bonded to the inside of the acoustic barrier to provide thermal and vibration insulation. The combo forms a thin, lightweight acoustical product that displays excellent mechanical properties while providing superior sound transmission loss. Fire rated and can be used in many applications.

How it Works:

Sound waves originating from the source will be initially absorbed by the fiberglass and then blocked by the mass loaded vinyl. Any reflected sound wave component will be further dissipated into the fiberglass absorber.

Features:

  • Combines noise barrier and sound absorption

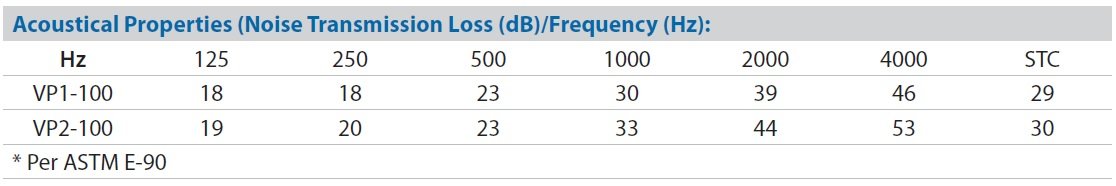

  • STC rating beginning at 29, see Data Sheet
  • 1 LB or 2 LB MLV options
  • 1” or 2” Thick Fiberglass options
  • 135 or 67.5 Square Feet rolls, see above
  • Scrim Reinforced Foil Finish on one side
  • Fire Rated

Suggested Applications:

Wrap noisy pipes, waste pipes, ducts, valves and fan housings to prevent break through noise from transmitting through the wall of the pipe or duct. When applying, cut the length from the roll, wrap around structure, overlapping around 5" at seams and tape closed with duct or mylar tape.

How to Order

Can be purchased with 1 LB or 2 LB MLV and a choice of 1” or 2” Fiberglass, select from options above. Square Footage per rolls are as follows:

1 LB Barrier with 1" or 2" Fiberglass - 4.5' x 30' Roll (135 Square Feet)
2 LB Barrier with 1" or 2" Fiberglass - 4.5' x 15' Roll (67.5 Square Feet)

To determine the amount needed: measure length and diameter of structure. Add 5" to diameter to allow for overlap.


This product qualifies for FREE SHIPPING, see details in Shipping tab.

For additional Sound Barrier and Absorption products, see our Sound Control Curtains Category Page.

Product Data

Click here to print MLV with Fiberglass Data Sheet.

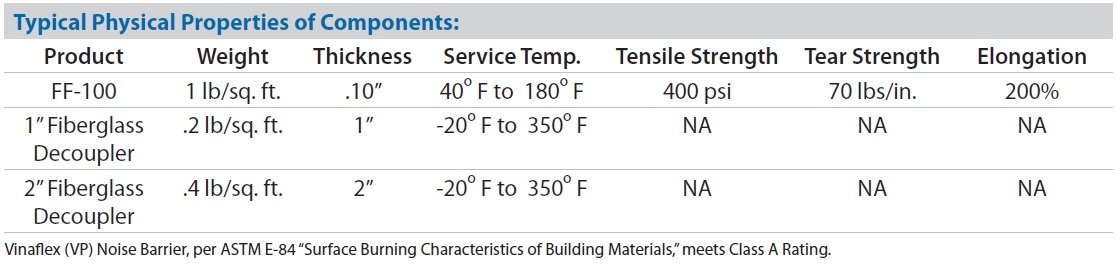

Physical Properties of MLV and Fiberglass Noise Barrier



Physical Properties of MLV and Fiberglass Noise Barrier

(VP1-100: 1 LB MLV with 1" Quilt, VP2-100: 1 LB MLV with 2" Quilt)

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Please allow 2-3 business days to ship.
    • FREE SHIPPING! Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Shipping is included in the price and will need to be covered by the customer in the event of a return, see below.
    • This product does not ship to Canada, Alaska or Hawaii.
    • This product ships freight.

  • Returns:
    • Product can be returned up to 60 days, if in brand new condition.
    • A 20% restocking fee will be applied.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.

Not yet rated. Be the first to Write a Review

Recently Viewed
Q&A

Customers Questions and Answers

1) Lottie : I have one noisy steam heat pipe in my apartment that I want to wrap, and it looks like this is the right product for the job. However a 4-4.5' x 30' roll is way more than we need! Is there any way to get a smaller piece? (The pipe is about 4" diameter and 12' long) Thank you so much, Lottie

Trademark Soundproofing Reply:

You can try the ceiling tile barrier which is the same material just cut in squares http://www.tmsoundproofing.com/Ceiling-Tiles-Sound-Barrier.html

2) Devon S: Would this be a good choice to stop vocal/music sound from transmitting through our duct work?

Trademark Soundproofing Reply: If the sound in entering or exiting through the closed part of the duct work, then yes. If it is going through the open vents at both ends than not.

3) David W: Is this product fire rated for 1 hour? Thank you

Trademark Soundproofing Reply: It is not tested to that. It is tested to has only been tested to ASTM E-84, which is a flame & smoke generated test.

4) Marc L: Hi! It is possible to order only one roll to test it? Also, how much shipping to send it near Montreal in Canada? Is it free shipping if I order two rolls? Thanks! Marc

Trademark Soundproofing Reply: Hi Marc. Please email shipping@tmsoundproofing.com for help.
