TMS Silent Resilmount A106R Low Profile Clip

  • Resilient mount bracket for wall/ceiling decoupling
  • Recesses the furring channel into the cavity to reduce the overall profile of the acoustical isolation system.
  • For areas where maximum ceiling height is needed
  • See Product Data Tab for layout.
  • Price per piece

FREE SHIPPING applies for orders over $75! See Shipping and Returns Tab below for additional information.

Price: $6.49
Qty
Save to wishlist
Note: you must order at least 10 items
Made in USA
Fast turnaround
SKU RES-A106R
Quantity Price
100-499 Items $6.29
500+ Items $5.99
*Note:
Description

TMS Silent Clips - A106R is an engineered mounting bracket used to reduce airborne and structure-borne vibration. It is a combination of the A237R and the M-100 4" 12 Ga bracket. The A237R is attached to the 4" leg of the bracket.

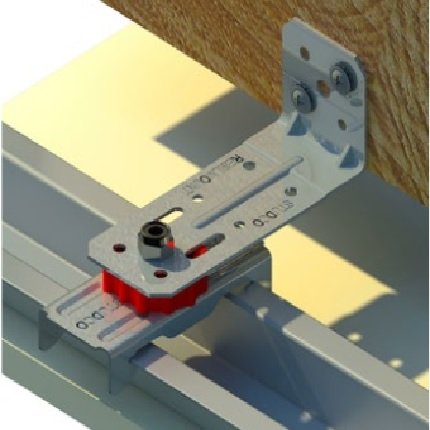

TMS Silent Clips - A106R is perfect for applications where maximum ceiling height is needed.  It fastens directly to the side of wood or steel joists creating an air space below the joists as little as 1/4".

Features:

  • Engineered thermoplastic rubber outperforms standard rubber because of its sound absorbing characteristics.
  • The 106R allows a minimum 1/4" cavity for applications where adjustment is needed.
  • Creates a smaller cavity between the framing and the ceiling.
  • Can be used with standard drywall furring channel.

Sample Applications:

  • Electrical Box or Projector Mount Isolation
  • Isolation of Ceiling Fan or Vent Fan Apparatus
  • Isolation of Garage Door Apparatus Isolation
  • Dropped Ceilings or Walls to create a "Floating Wall/Ceiling Applications.
  • Speaker and Musical Equipment Isolation
  • Recessed Lighting, Heating and Venting Isolators

A106R Clip Specifications:

  • Width:  31/16"
  • Bracket Height: 13/4"
  • Length: 315/16"
  • Depth:  11/8"
  • Load Weight: 22 lbs.
  • Max Spacing Between Brackets: 24" on center

How Many To Order:

Clips can be spaced up to 48" apart with spacing of up to 24" between channels.  When using this spacing, divided the square footage of the area to be treated by 5.  That will give a rough estimate of the amount of clips needed.  In most cases you will need to compensate for being within 6" to walls/ceilings so we have found that calculating the square footage by 23% should get you close to the amount of clips needed.  See Installation Tab above for layout diagram.

Need help planning your soundproofing project?  You can always call our office at 845-388-1200 with any installation questions that arise.  Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips.  We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

Printable Documents:

Click here to print Product Specs/Data Sheets for TMS Silent Clips - A106R.

Product Specs:

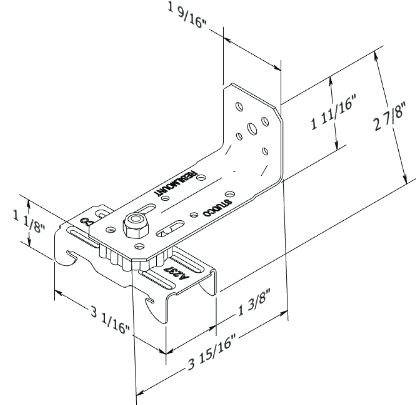

A106R Specifications A106R Clip Specifications

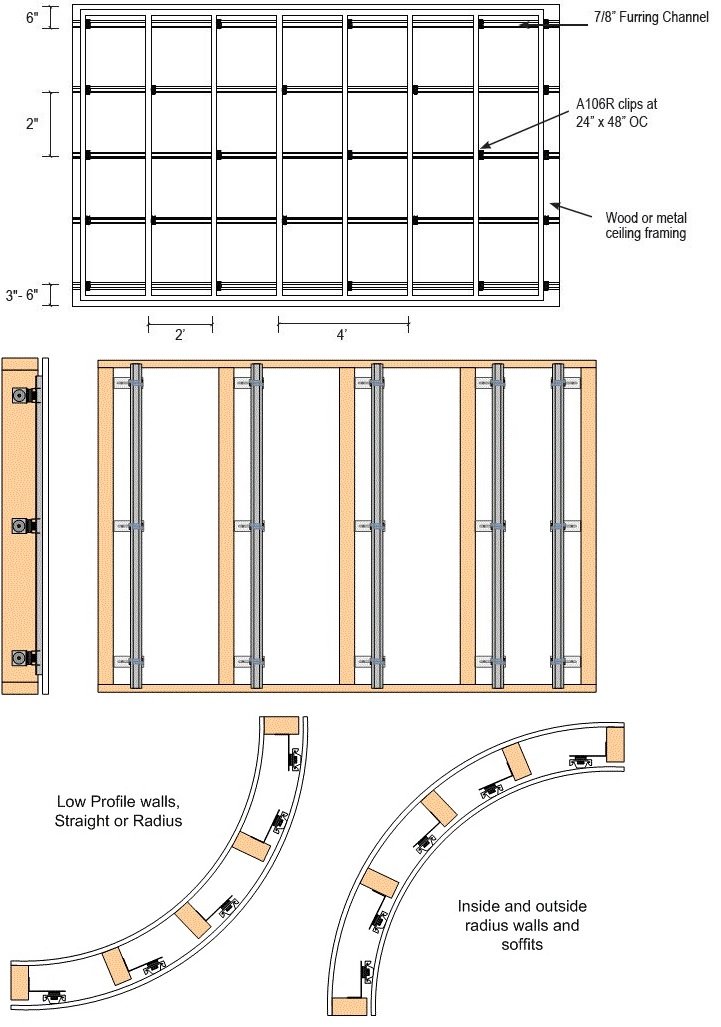

Sample Applications:

Sample Application s for A106R Clips



Certifications:

Certidications for A106R

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product usually ships within one business day.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.



  • Returns:
    • Product can be returned if it is in brand new condition for up to 60 days from the date of purchase.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.

Not yet rated. Be the first to Write a Review

Recently Viewed
Q&A

Customers Questions and Answers

1) Joaquin T: Hello Trademark Soundproofing Team, I am thinking of floating a shared wall with the A106R clips. Is it okay to only leave 1/4" space between the drywall and the wood stud? Also, do you know if it will help to put plywood between the studs and against my neighbor's drywall? Would the reduction in airspace eliminated the benefits of more mass? My greatest concern is bass from the neighbors stereo. Thank you, Joaquin

Trademark Soundproofing Reply:

Hi Joaquin, as long as they are not touching you are fine even if it is only at a quarter inch. Adding the plywood or drywall against the neighbors wall would be a better benefit than the air space lost if you will be adding the green glue damping compound between the back of his drywall and your new layer especially for low frequency bass. You can 2 layers with green glue on your clips and channels as well. Be sure that you put insulation in the wall and that there is no open air space above the two walls.
