Mortising Router Bit for Automatic Door Bottom Installation

Mortising Router Bit for Automatic Door Bottom Installation
View detailed images (7)
Mortising Router Bit for Automatic Door Bottoms Mortising Router Bit for Heavy Duty Automatic Door Bottoms #45564 Mortising Router Bit for Heavy Duty Automatic Door Bottoms #45564 Mortising Router Bit for Heavy Duty Automatic Door Bottoms #45564 Mortising Router Bit for Regular Duty Automatic Door Bottoms #45560 Mortising Router Bit for Regular Duty Automatic Door Bottoms #45560 Mortising Router Bit for Regular Duty Automatic Door Bottoms #45560

Easily prep your door for mortised automatic door bottom with this router bit, which has been tested to work for our regular duty and heavy duty automatic door bottom, see list below for product type required.

PRICED PER ITEM

Price: $47.36
Product Type
Qty
Save to wishlist
Fast turnaround
SKU ROUTER1D
Description

Easily prep your door for mortised automatic door bottom with this router bit, which has been tested to work for our regular duty and heavy duty automatic door bottoms.

Router Bit Description:

  • Designed to clean up previously cut dadoes and grooves, or surfacing cuts
  • The upshear configuration improves chip removal
  • Cutting edge orientation produces a smooth surface
  • Intended for very broad, shallow cuts Carbide Tip

Automatic Door Bottom Compatibility:

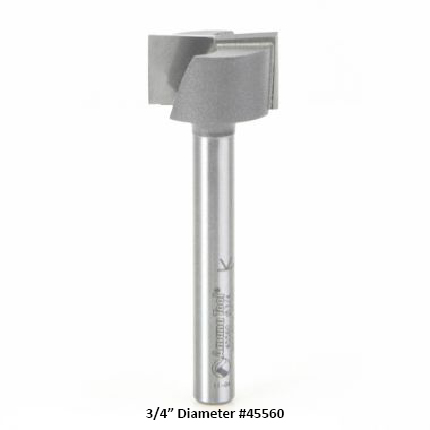

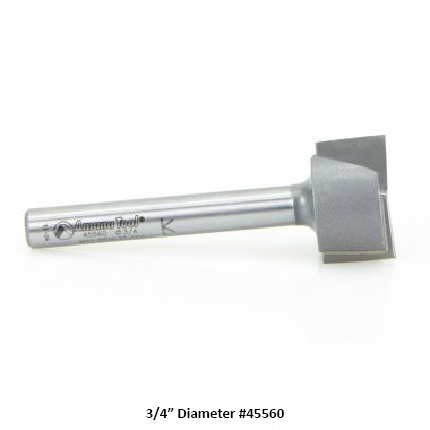

Product 3/4" Diameter #45560

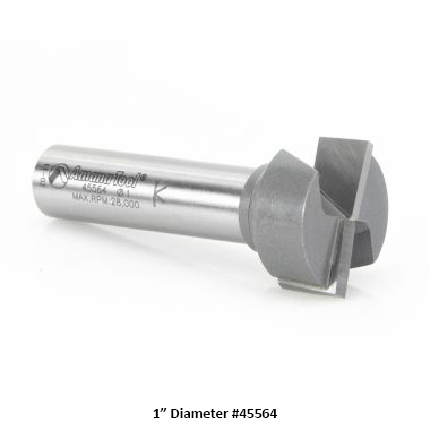

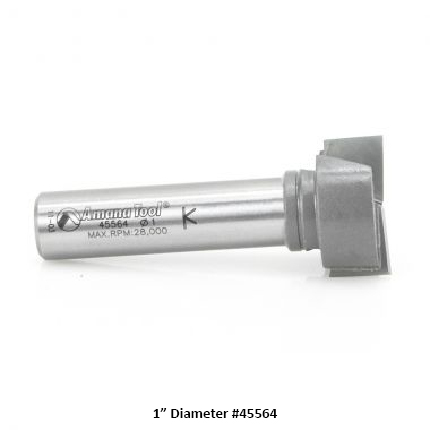

1" Diameter #45564

Router Bit Dimensions:

  D B d L
Product Diameter Cutting Height Shank Overall Length Flute
#45564 1" 7/16" 1/2" 2-1/2" 2"
#45560 3/4" 7/16" 1/4" 2-1/4" 2"



Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • In stock and ready to ship within 1 business day.
    • FREE SHIPPING for orders over $300.00 in the USA (excluding Alaska and Hawaii). A flat fee of $19.99 will be applied to orders under $300.00.
    • Ships FedEx Ground.

  • Returns:
    • Product can be returned in brand new condition up to 30 days from date of purchase.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. Return address will be provided with RMA number.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
    • Click here for more information on our Return Policy.
