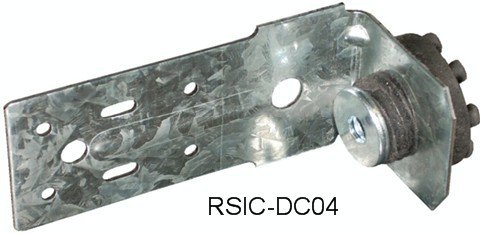

The RSIC-DC04 Series is a universal and versatile product line with many possible applications. It is ideal when heavy items need to be decoupled for sound isolation.

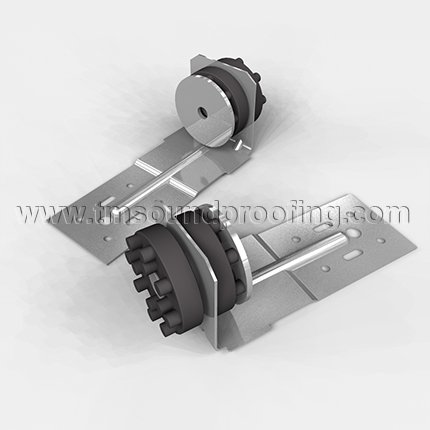

RSIC-DC04 Series is available in the following variations:

DC04: Acoustical Design Load 36 LB Load (Allowable Load 225 LB)
DC04x2: Acoustical Design Load 72 LB Load (Allowable Load 450 LB)

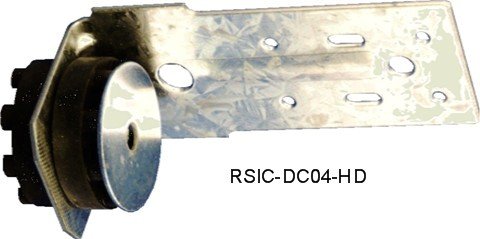

DC04HD: Acoustical Design Load 144 LB Load (Allowable Load 400 LB)
DC04HDx2: Acoustical Design Load 288 LB Load (Allowable Load 900 LB)

PRICED PER PIECE.

Special Quantity Discounts begin at 200 clips. See below for details. FREE SHIPPING applies to orders over $75.00!

Price: $6.16
Type - Load Weight
Qty
Save to wishlist
Note: you must order at least 10 items
Made in USA
SKU RSIC-DC04
Description

The RSIC-DC04 Series is a universal and versatile product line with many possible applications, ideally used for hanging heavy items that need to be decoupled for sound isolation.

Product Features and Applications:

  • Most commonly used for decoupling framing from existing structures
  • Also ideal for heavy items, such as HVAC or Projector mount to be decoupled
  • Great for creating decoupled drop ceilings, See product data tab for more information
  • Supports 1/4" threaded rod or bolt. 3/8" is also available through our office
  • Designed for new or retrofit applications

A few examples of the possible applications:

  • Dropped Ceiling

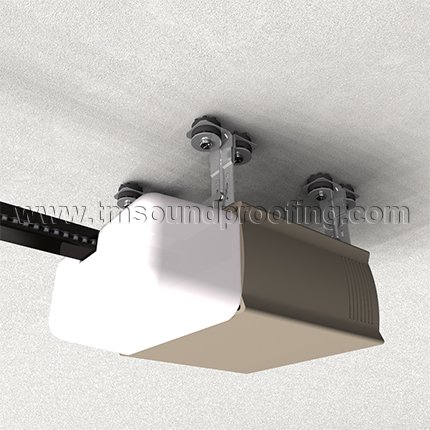

  • Garage Door Motor Isolation
  • Garage Door Rail Isolation
  • Decoupled connector for isolating walls built within another wall
  • Speaker Isolators

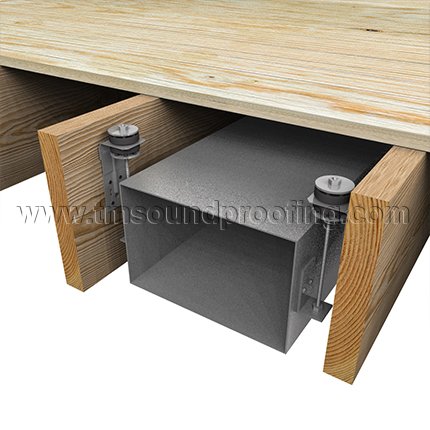

  • Vent Fan Isolators
  • Recessed Lighting Isolators

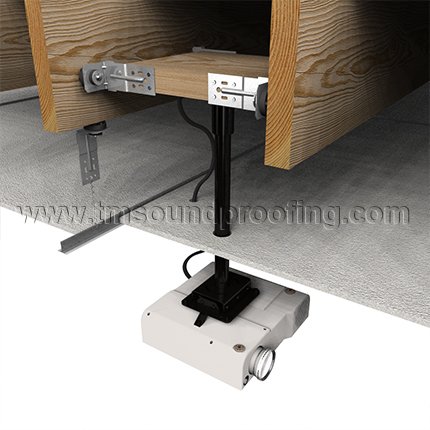

  • Projector Mount Isolators
  • Electrical Box or Ceiling Fan Isolators
  • See Product Data Sheet for visual presentation

RSIC-DC04 Series is available in the following variations:

DC04: Acoustical Design Load 36 LB Load (Allowable Load 225 LB)
DC04x2: Acoustical Design Load 72 LB Load (Allowable Load 450 LB)
DC04HD: Acoustical Design Load 144 LB Load (Allowable Load 400 LB)
DC04HDx2: Acoustical Design Load 288 LB Load (Allowable Load 900 LB)

Special Quantity Discounts start at 200 Clips, see information above for details. Free Shipping applies to orders over $75.00 and above. See our Shipping / Return Tab to the right.

Product Data

How it Works:

RSIC Clips are used in the process of decoupling walls and/or ceilings from the joists or studs, creating what is called a floating wall or ceiling. Decoupling the wall or ceiling helps create a soundproof environment in two ways, by breaking the path and creating resiliency.

In wall assemblies, the Clips are generally spaced every 48” OC, making the contact between the studs and boards minimal. This break in the path greatly reduces the amount of noise that travels from one side to the other in two ways. Firstly, there is no direct connection for sound to travel via the joists as the wall/ceiling is disconnected. Secondly, the wall and ceiling are given resiliency (flexibility), thus greatly reducing vibration (similar to shock springs on a car).

Printable Documents:

Click Here to View and Print Product Spec / Data Sheet

Click Here to View and Print Product Testing Sheet

Product Specs:

RSIC-DC04 Clip Product Specs

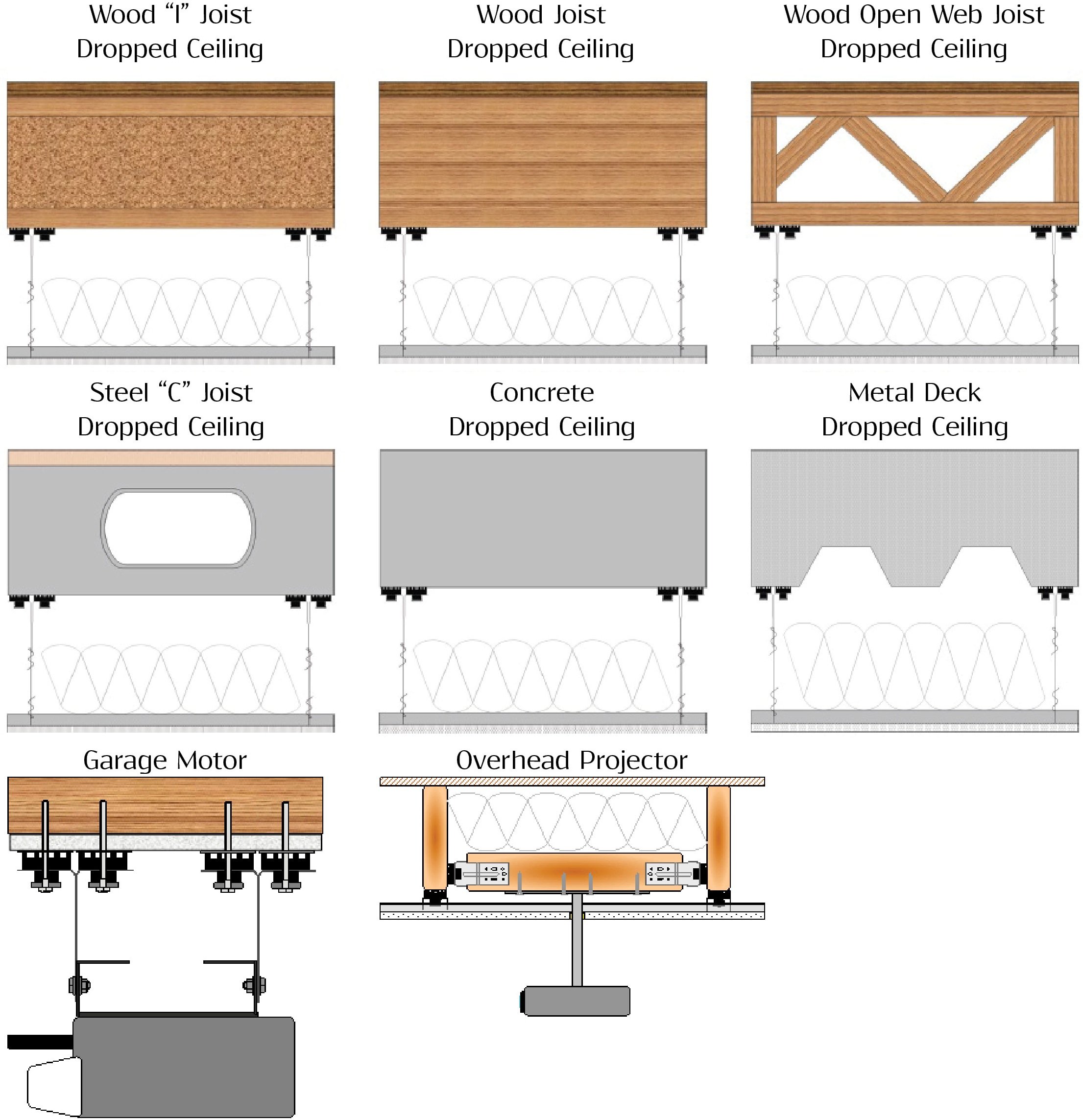

Sample Applications:

RSIC-DC04 and RSIC-DC04HD:



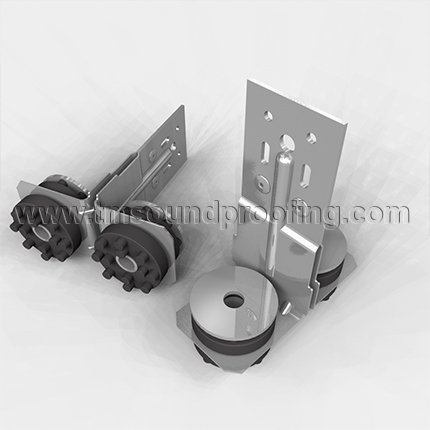

RSIC-DC04x2 and RSIC-DC04x2HD:

Installation Guide

Click to Print Installation Guide

General Installation Information

Required Screws for RSIC-DC04 Series Installation

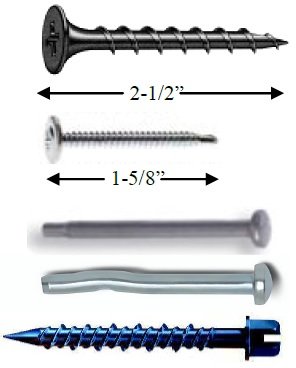

Approved Fasteners

  • RSIC-DC04 to Wood: #8 x 2-1/2 inch minimum size coarse thread screw. (Recommended #12 or #10 x 2-1/2 inch hex head)
  • RSIC-DC04 to Steel: # 8 x 1-5/8 inch minimum size fine thread screw. (Recommended #12 or #10 x 1-5/8 inch hex head)
  • RSIC-DC04 to Concrete: 3/16” x 2” drive spike, 3/16” x 2” tapcon, 3/16” x 2” bent spike, or fastener with equal load capabilities (Minimum 120lbs Ultimate, Sheer and Pullout).
  • DO NOT fasten Resilient Sound Isolation Clips (RSIC-DC04) to framing members with nails. Use only approved fasteners

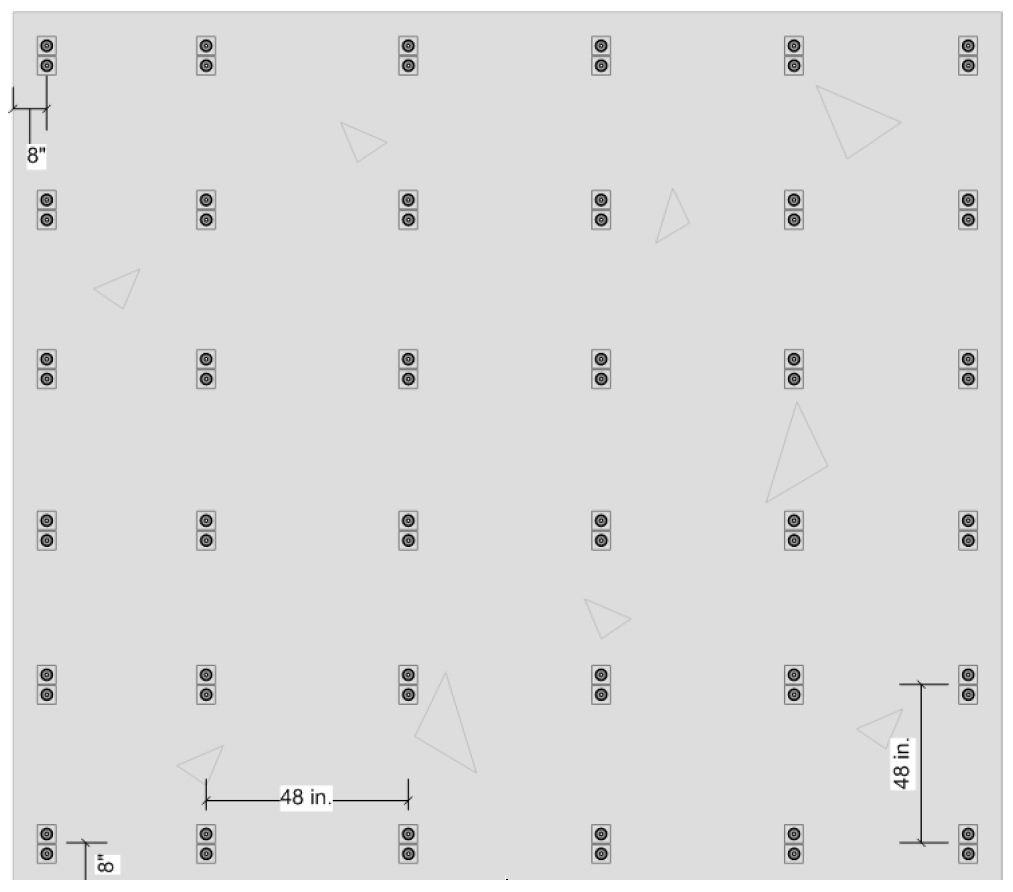

Recommended Layout, See Image Below:

  • For RSIC-DC04: Resilient Sound Isolation Clip (RSIC-DC04) shall be 24 inches by 48 inches on center maximum.
  • For Double and HD Variations: Resilient Sound Isolation Clip (RSIC-DC04) shall be 48 inches by 48 inches on center maximum.
  • Locate the first and last row of RSIC-DC04 clips within 8 inches from the wall.

Recommended Layouts:

For RSIC-DC04:

Maximum 24" x 48" OC

Suggested Layout for RSIC-DC04, 24" x 48" Max

For RSIC-DC04HD:
Maximum 48" x 48" OC

Suggested Layout for RSIC-DC04HD, 48" x 48" Max

For RSIC-DC04x2 and RSIC-DC04x2HD:
Maximum 48" x 48" OC

Suggested Layout for RSIC-DC04x2 and RSIC-DC04x2HD, 48" x 48" Max



Installation on Ceilings, Wood or Steel Framing:

Wood or Steel Framing Installation Diagram

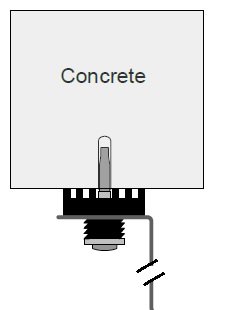

Concrete Framing Installation Diagram

  • Fasten the Resilient Sound Isolation Clip (RSIC-DC04) to the structure members with approved fasteners.
  • Ensure the internal metal Ferrell is tight to the framing member.
  • Min. 12 Ga. annealed hanger wire tied through the existing 1/4” hole in the vertical leg of the RSIC-DC04 clip.
  • When using tie wire attached to the RSIC-DC04 clip to hang a dry-wall grid ceiling follow the installation instruction provided by the manufacturer of the grid ceiling system.

Important Notes:

  • Resilient Sound Isolation Clip (RSIC-DC04) ceiling system shall not carry heavy loads such as cabinets or bookshelves
  • Seal all potential air leaks with non-hardening acoustical caulking to achieve best noise control results. Use fire rated sealant where required.
  • When attaching the RSIC clips to a steel stud the minimum allow-able thickness of the steel stud is 20 Ga. (0.030”).
Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product is in stock and usually ships within 48 Hours.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.



  • Returns:
    • Product may be returned up to 60 days if in brand new condition.
    • A $10.00 fee will be charged to cover or original shipping cost.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.

Not yet rated. Be the first to Write a Review

Recently Viewed
Q&A

Customers Questions and Answers

1) Lawton: Hello, How do I determine if I need DC04 or DC04HD clips (or any of the other models)? This is for securing a new partition wall to existing ceiling joists. The wall will carry two layers of drywall. If the clips are spaced 48" oc, will the clips be strong enough to support the weight of the wall? Thanks!

Trademark Soundproofing Reply: Hi Lawton, The DC04 should work for that.
