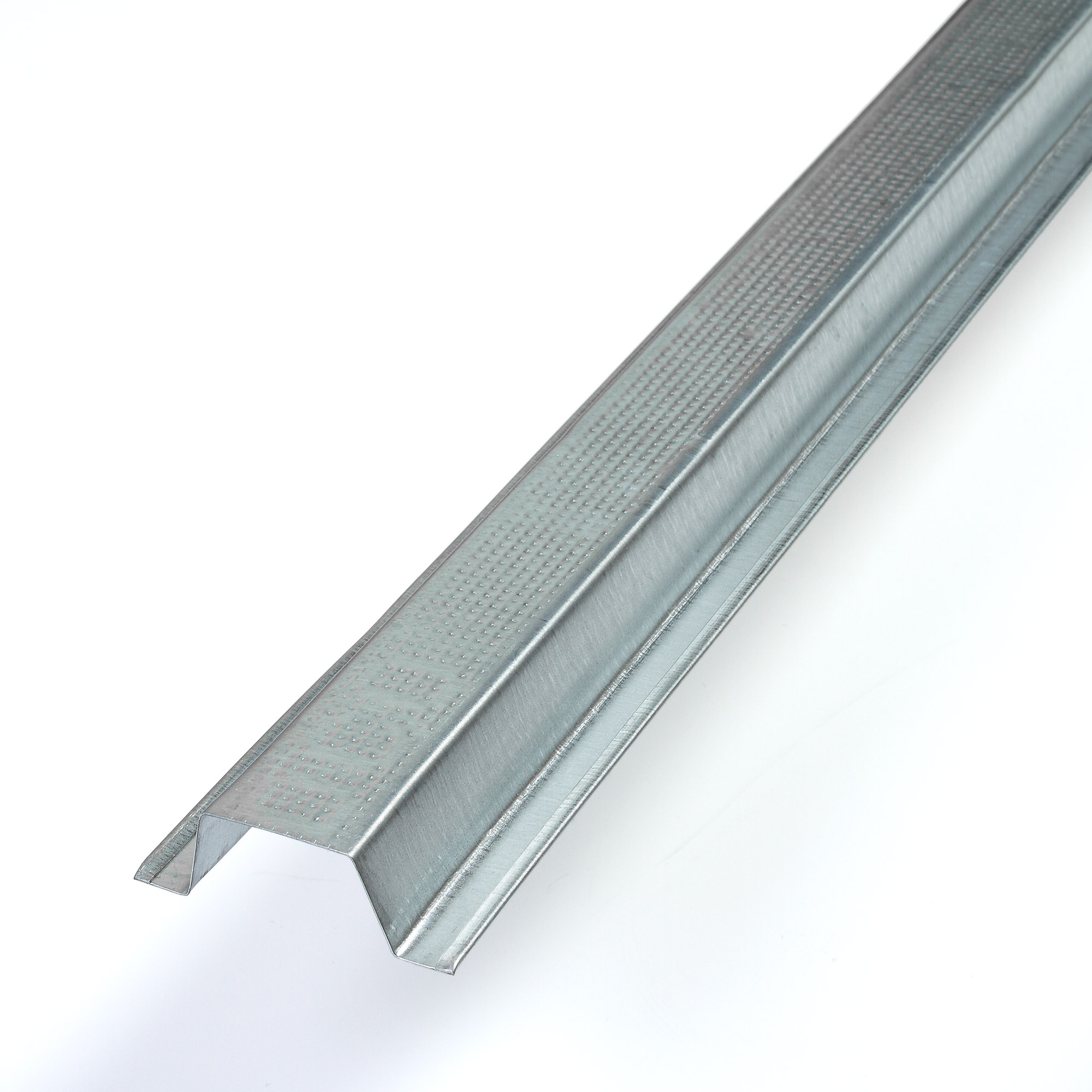

Metal Furring-Hat Channels are a perfect fit for our Resilient Sound Clips. Each Hat Channel is 12' (144") long, 7/8" depth x 2.5" wide. 25 gauge with hemmed edges.
Calculate 6% of your square footage for the amount of channels you need.
Available for pick up.
Nationwide freight delivery available (Minimum 560 pieces). Call for pricing.
High Quality - Manufactured in the USA
Hat Channels, also known as Metal Furring Channel provide a high-level soundproofing option for decoupling framing from drywall when used in conjunction with our resilient clips as part of a resilient isolation system. For an in depth explanation on decoupling, visit our Decoupling Explained article.
Our premium high quality Hat Channels are 12' long. Be sure to overlap channels by 6" and screw them together with self-drilling sheet metal screws. These channels are .25 Gauge with hemmed edges. They are designed to easily hold 2 layers of 5/8 drywall and can safely hold 3 layers. They are perfect for use with our RSIC, TMS Silent Clips and Whisper Clips.
To figure out how many channels you need. Calculate your square footage times 6 percent. E.g. for 1,000 square feet you will need approximately 60 channels.
Installation: Use self tapping drill point screws to screw drywall back to channel.
If you are looking for Resilient channels without the use of clips (not as effective) please see our RC1 (1 legged) Resilient Channels.
|
Hat Channel Dimensions: |
|
Codes Compliance: |
Furring Hat Channels are designed to insert into sound clips. NO FASTENERS NECESSARY! Click here for resilient sound clip and channel installation guide.
This item is available for pick up at our location
100 Route 59, Unit 120, Suffern, NY 10982.
We also ship this item by the pallet (560 pieces per pallet) Nationwide. Call 845-388-1200 for pricing.
For shipping bundles of 20 cahnnels (8.6' long) FedEx/UPS, see our Hat channels here.
