RSIC-2 For Wall with Door Frame

RSIC-2 For Wall with Door Frame
0.0

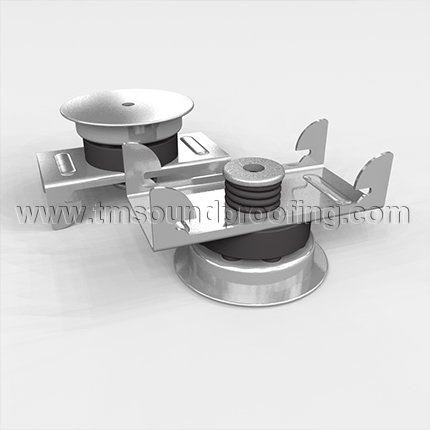

The RSIC-2 Clip is a cost effective clip designed for soundproofing wall assemblies where door frames may be present. The RSIC-2 adds an additional 3/8” to the standard RSIC-1 Clip, creating a total thickness of 2”, thereby standardizing the components in the wall assembly to comply with industry standards.

PRICED PER CLIP

Price: $6.12
Qty
Save to wishlist
Made in USA
SKU RSIC-2
Description

The RSIC-2 Clip is a cost effective clip designed for soundproofing wall assemblies where door frames may be present. The RSIC-2 standardizes the components in the wall assembly to comply with industry standards and lower costs related to wall thickness.

Features:

  • The RSIC-2 adds an additional 3/8” to the standard best-selling RSIC-1 Clip System, creating a total thickness of 2”
  • Creates an overall thickness of 5-1/2", the standard thickness of a 2" x 6" stud wall
  • RSIC-2 elliminates the need for custom-made components
  • Allows teh use of standard off-the-shelf door frames and window casings
  • See RSIC-2 Product Data for more information.

How Many Do I Need?

  • For a tight estimate, when spaced at 48" x 24": Take the square footage of the area to be treated and divide by 5.
  • However, to compensate for being within 6" to the walls / ceilings, we have found that calculating 23% of your total square footage will give you a more accurate estimate.

For detailed usage see our How to Soundproof Article.

Product Data

Click to Print Product Data Sheet

How it Works:

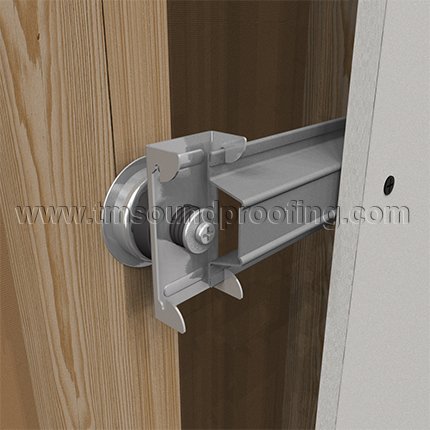

RSIC-1 and Hat Channels are used in the process of decoupling walls from the joists, creating what is called a floating wall or ceiling. Decoupling the wall or ceiling helps create a soundproof environment in two ways, by breaking the path and creating resiliency.

The Clips are generally spaced every 48” OC, making the contact between the studs and boards minimal. This break in the path greatly reduces the amount of noise that travels from one side to the other in two ways. Firstly, there is no direct connection for sound to travel via the joists as the wall/ceiling is disconnected. Secondly, the wall and ceiling are given resiliency (flexibility), thus greatly reducing vibration (similar to shock springs on a car).

Product Specs:

RSIC-2 Specs

Compatible Hat Channel can be purchased by selecting link.

Product Specifications:

Sample Applications:

RSIC-2 Applications
