TM Soundproofing Ceiling Soundproofing Troffer Cover - UL Fire-Rated
Troffer Cover - UL Fire-Rated
Click on arrows to scroll through images
Click on image to enlarge

Troffer Cover - UL Fire-Rated

0.0

Tenmat FF130 Troffer Covers are designed to stop air and sound leakage through recessed lighting. They are UL Classified to maintain the fire rating (1 hour) in many fire rated assemblies.

Available in two size options 2'X2' and 2'X4', see Product Data Tab for more information.

Price: $78.00
SKUFF130-2x2
Dimensions:
Quantity:

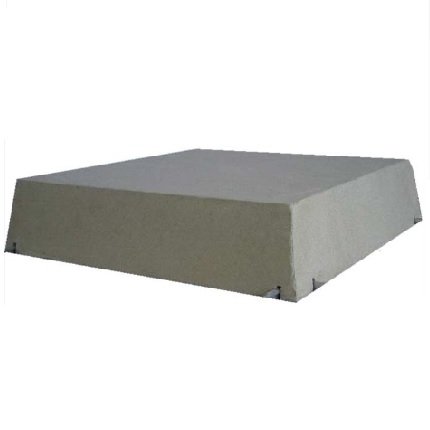

Tenmat FF130 UL Fire-Rated Troffer Cover

  • Applications: The FF130 Troffer Protection Cover is the only fully UL tested solution for fluorescent fixtures on the market. Designed to stop air and sound leakage through recessed lighting. They offer significant energy savings as well as noise and draft reduction.

  • Design: FF130 Troffer Cover is a pre-formed flexible enclosure made of durable, thermal insulating mineral wool. Made of flexible, lightweight and fire-safe material which is suited for a wide range of recessed flourescent light fixtures and lay in ceiling tiles.

  • Dimensions for FF130-2'X2':   Inside height:  5"
                                                Length: 2'
                                                Width: 2'
                                                Approximate Weight:  5 Lbs.

  • Dimensions for FF130-2'X4':   Inside height:  5"
                                                Length: 4'
                                                Width: 2'
                                                Approximate Weight:  10 Lbs.

  • Acoustic properties: They are designed to completely cover fixtures and exhibit excellent acoustic insulating properties. They significantly reduce the amount of noise travelling through air gaps around light fixtures.

  • Fire Protection: The insulating properties of the cover ensures that both, flame spread and heat transmission are stopped for 60 minutes.

  • Installation: Product does not require assembly, special tools or sealant and can be installed within seconds. The flexible material enables the cover to be fitted around obstructions and can be folded to ease installation in restricted spaces. Cable entry points can be made anywhere on the top and sides for ease of wiring of the fixture. The light cover does not require maintenance but is easy to remove for fixture maintenance.

  • Certifications: UL Classified to maintain the fire rating (1 hour) for the following fire-rated assemblies: A202, D203, D216, D219, G205, G208, G218, G252, G255, G256, G262, G264, J201, J202, L006, L201, L202, L206, L209, L210, P202, P204, P206, P207, P210, P211, P213, P214, P216, P225, P227, P28, P229, P230, P231, P235, P238, P242, P246, P250, P251, P254, P255, P259, P260, P262, P264, P265, P267, P268, P269

  • Priced Per Piece

Printable Documents:

 Click to print Tenmat FF130 Troffer Cover Product Data.
Click to print Tenmat FF130 Troffer Cover UL USA Certification

Dimensions:

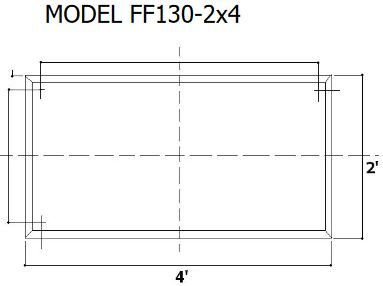

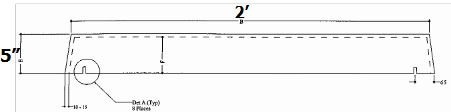

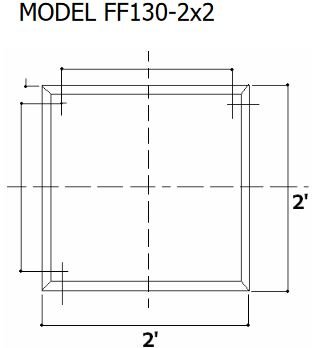

    Tenmat 130-2x2 Dimensions    Tenmat 130-2x4 Dimensions   Tenmat 130 Dimensions

Specifications:

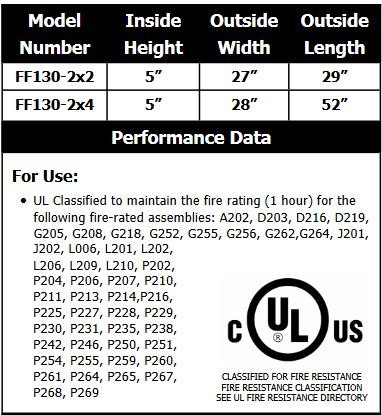

Tenmat 130 Troffer Cover Specifications

Printable Documents:

Click to print Installation Instructions for Tenmat FF130 Fire Rated Troffer Covers.

Step 1:

Install the UL listed light fixture per the installation method and spacing requirements as specified in the individual UL design. To accommodate the electric supply a small hole can be poked through the cover without any tools. Note: The electric supply should have a snug fit.

Step 2:

Place a single spacer, approx. 4" x4" (ex: piece of ceiling tile, mineral wool batt) centrally located on top of the light fixture to provide a minimum 0.5" clearance between the light and the cover. For 2'X4' fixtures, use two spacers, one spacer on each end. The height of the fixture housing shall not cause the bottom of the cover to lose contact with the ceiling tiles.

Step 3:

Place the cover on top of the tee bar grid. The hanger wires at the corners of the grid supporting the light fixture shall not be relocated. Instead, slits (max. depth 100 mm as measured from the bottom of the cover) may be cut in the cover above the existing slots to accommodate the hanger wires and allow the cover to sit flush with the ceiling tiles. A 0.5" clearance shall be maintained between the top, sides and ends of the fixture and the enclosure. No additional sealant or fastening is required. End-to-end or side-by-side installation of fixtures has not been investigated.
