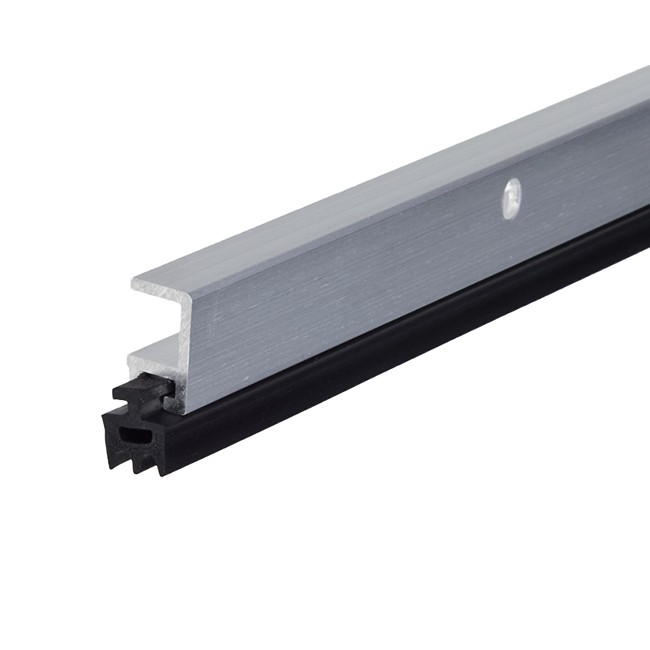

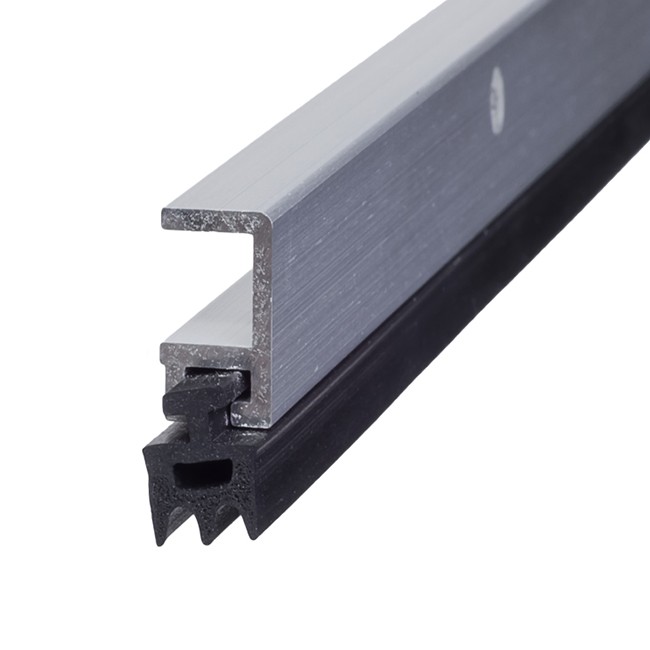

Marvel Mute Door Gasket, Aluminum Casing with Rubber Seal, is a High Quality Basic Door Gasket with an enhanced sponge neoprene seal for everyday sounproofing and weatherproofing. It is designed to be applied along the header and jambs of your doorframe. Available in selection finishes
SOLD PER SET - Includes (1) 36" Header and (2) 84" Jambs
Ships within 1 business day!
Special Discounts apply to orders over $1,000.00! See Product Descriptions for details.
Marvel Mute Door Gasket, Aluminum Casing with Rubber Seal, is an easy to install and affordable door gasket. The gasket is installed on your stop molding of the door frame which allows for a tight seal.
Sizing: Door Gaskets are priced per set. Included in each set is one 36" Header and two 84" Jambs.
Additional Application: this product can also be applied along a sill for window protection.
Not sure what size you need? See our installation guide on how to measure for your perimeter door gasket. If you are unsure of the exact size required, order longer than necessary as this product can easily be trimmed with a standard hacksaw.
Custom Sizing: Custom sizes up to 120" can be purchased through our office. Please contact us at 845-388-1200.
To complete the perimeter of your door frame, purchase an Automatic Soundproof Door Bottom to effectively seal the gap under doors.
Measure your door-frame and review the product specs to ensure you will be satisfied with the way it will be installed. We also sell an adjustable gasket that allows the "seal" to be readjusted ensure a constant tight seal. For a more heavy duty gasket, one that is adjustable, larger and can also be applied as a door stop, try our Heavy Duty Door Gasket.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.
Please don't hesitate to call us at 845-388-1200 should you not find what you are looking for or need more information.
Click to Print Installation Instructions
Sound and air infiltration are very common through the gaps around the perimeter of doors. Installing a proper seal onto a door stop provides the added benefits of a door with higher sound control while it prevents energy loss, thus lowering your utility bills.
|
How to Measure for a Perimter Door Gasket: |
||
 |
First measure the Door Stop along the header (top) of your door from side to side (see Figure 1). Next, measure the full length of your jamb (sides of your door), from the floor surface or doorway threshold to the top of your door header. You can easily resize the door gasket on the field if necessary, so you might want to leave ½”- ¾” (.5” - .75”) room for error. Make note of your required dimensions. |
|
|
How to Install a Perimeter Door Gasket: |
||
|
STEP 1: MEASURE AND TRIM DOOR GASKET |
||
 |
First measure and test the header piece to ensure it is not too long. If trimming is necessary, use a chop saw with a carbide blade to cut down to size. |
|
|
STEP 2: INSTALL THE HEADER PIECE |
||
 |
Close the door and position the header piece. Seal should make slight pressure contact with the door. A fully compresses seal is not necessary and not recommended, as it will inhibit proper operation of door. Mark screw position in the center of the hole and drill pilot holes. Secure header gasket with screws supplied (see Figure 3). Test the door to ensure gasket is positioned correctly. If necessary, loosen screws, reposition gasket and tighten screws again. |
|
|
STEP 3: INSTALL THE JAMB PIECES |
||
 |
Repeat Step 2 above for your jamb pieces (see Figure 4). |
|
|
Once you finish installing your perimeter door gasket, enjoy the benefits of a properly sealed door for many years to come! For more assistance and product information, contact us or call us at 845-388-1200. Our trained and friendly staff is on hand to guide you with all your soundproofing needs. |
||
