Soundproof Door Saddle 1/2" Height

Soundproof Door Saddle 1/2" Height
0.0

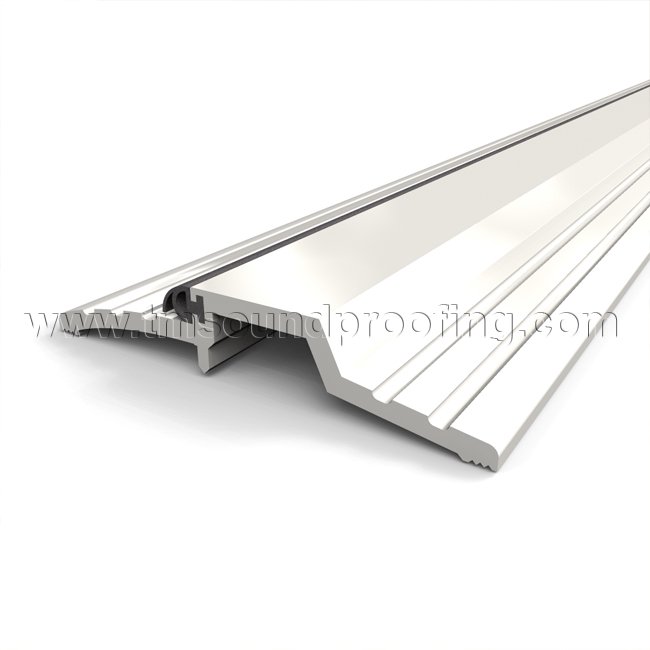

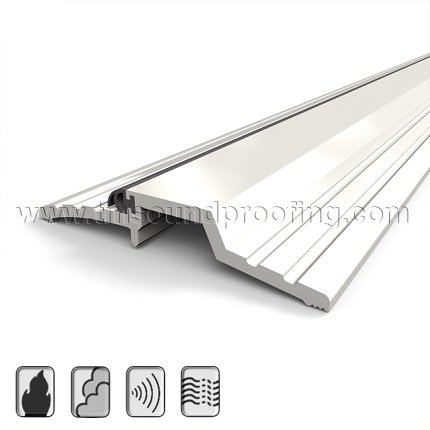

Heavy Duty Soundproof Door Saddle with 1/2 inch gap clearance. Neoprene rubber gasket compresses against door to create a soundproof seal. Available in aluminum mill finish in standard stock sizes.

Special Discounts apply to orders over $500.00! See Product Descriptions for details.

Price: $64.32
Size
Qty
Save to wishlist
Made in USA
Fast turnaround
SKU DSZ565A36
Description

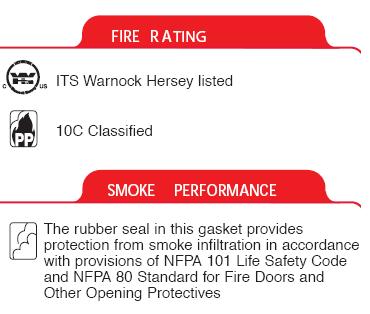

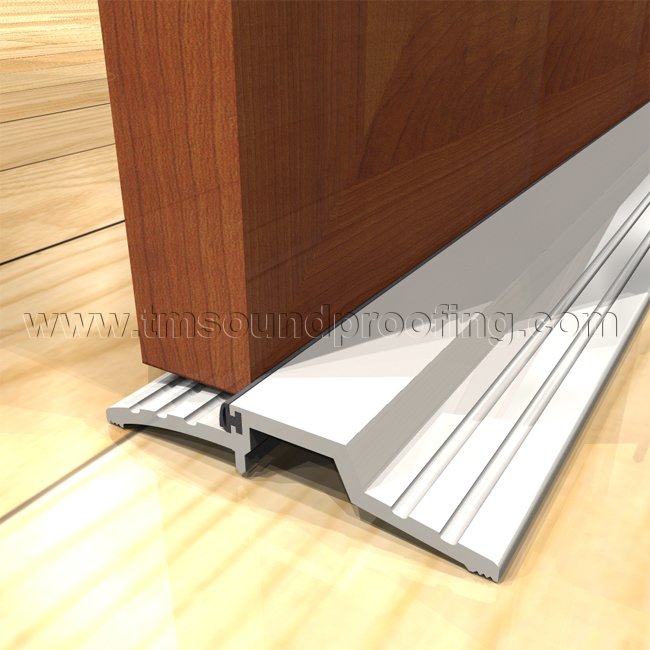

This solid, heavy gauge, sound rated door saddle with a neoprene gasket is great for sealing the gaps at the bottom of doors. The saddle incorporates a 7/8 inch rise in the saddle to accommodate a 1/2 inch clearance under the door and feature an enhanced neoprene bulb and finger gasket. The protruding rubber finger design ensures an airtight seal, even when door is misaligned due to natural warping or poor installation. Saddle is smoke and fire rated.

Saddle is made of .203” thick aluminum, and has passed the ANSI Standard Load Test to prevent bending and warping, even through constant usage. For extra protection (ideal for commercial traffic) Full Body Strength option is offered. Contact us at 845-388-1200 for details and pricing.

Installation instructions and screws provided.

Custom Sizes: Custom sizes up to 120" is available for purchase through our office. Please contact us at 845-388-1200.

To complete your soundproofing project, this soundproof saddle has a specially designed shoulder which can accommodate our best-selling surface mounted soundproof door bottoms.

Before Completing You Order:

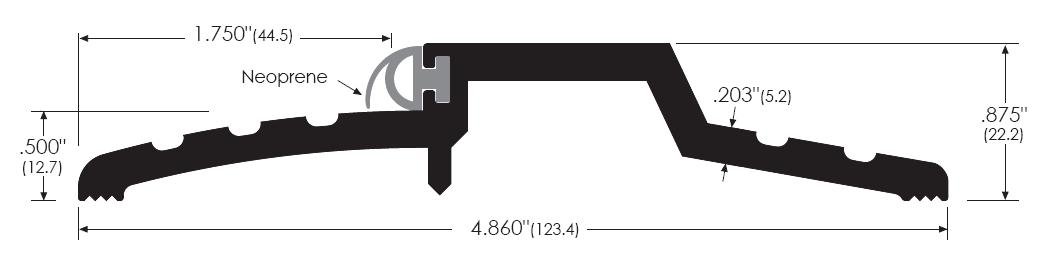

Ensure your door is compatible; The bottom of your door will need .5" clearance from the floor and not more than 7/8 inch. For exact measurements, see our product specs. Measure your door and select the necessary size above.

Special Discounts on Our Door Hardware:

No Coupon Code Needed. Discount automatically applied when added to shopping cart.

Spend $500.00, get 5% off plus free shipping
Spend $1000.00, get 10% off plus free shipping

See our Monthy Specials and Discounts for more great Soundproofing Savings!

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Installation Guide

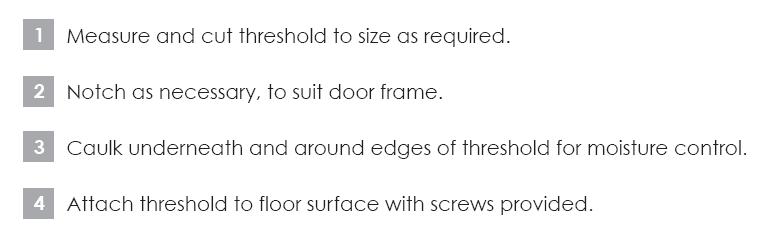

Installation Instructions - Soundproof Threshold

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Standard stock sizes (available above) ships within 1 business day.
    • Before purchasing large quantities please call our office to verify stock.
    • For custom sizes ordered through our office, please allow 7-14 business days to ship.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.

  • Returns:
    • Product can be returned if in brand new condition up to 30 days from date of purchase.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. Return address will be provided along with RMA number.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.


Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.

Not yet rated. Be the first to Write a Review

Recently Viewed
Q&A

Customers Questions and Answers

1) Norman Adams: SOUNDPROOF DOOR SADDLE 1/2" HEIGHT 36". What is the overall width of the 36" length, and distance from door sill stop to front of threshold?

Trademark Soundproofing Reply:

Hi Norman, See here http://www.tmsoundproofing.com/products/threshold/565/565specs.pdf

2) Charles G: I'm considering using the 1/2" saddle to seal the bottom gap in my theatre room door. I am transitioning from carpet in the theatre to vinyl in the entryway. Will this product work? Thank you.

Trademark Soundproofing Reply: That should work fine if the floors are even with each other.

3) Brandon d: The clearance between my door and the floor is 3/4". Is this too high for the door saddle? I see there is only the 1/2" measurement. What is the distance from the ground to the very top of the saddle (the part with the neoprene seal attached)?

Trademark Soundproofing Reply: It should work. The distance to the very top is .875"

4) Brandon d: The bottom of my door is 3/4 inch above the floor. Is that too high for this saddle?

Trademark Soundproofing Reply: No.
