Resilmount A237CR CRC Clips For Drop Ceiling Applications

Resilmount A237CR CRC Clips For Drop Ceiling Applications
A237CR Application

TMS Silent Clip Resilmount A237CR Furring Channel to CRC Channel Resilient Mount

  • Combination A237R resilient clip with hat channel system for drywall ceiling applications.
  • Can be used with any joist or concrete applications.
  • Used to improve acoustics and create a chase to hide HVAC and plumbing.
  • Minimum order amount: 10 clips
  • Priced per piece

FREE SHIPPING applies for orders over $75. See Shipping and Returns tab below for additional information.

Price: $6.99
Qty
Save to wishlist
Note: you must order at least 10 items
Made in USA
Fast turnaround
SKU RES-A237CR
Quantity Price
500+ Items $6.49
*Note:
Description

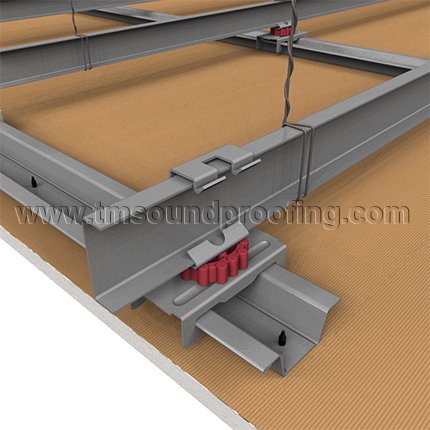

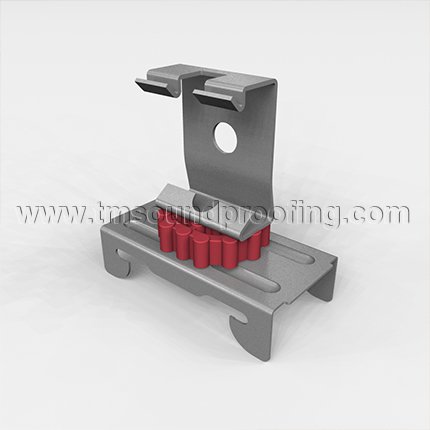

Acoustic control of airborne and structure-borne sound in high-density residential areas are a significant concern for contractors. A237CR channel provides a unique solution for sound isolation between ceiling primary suspension channel and the furring channel to which drywall is fixed to. The assembly clip features a top clip that wraps around the Cold Rolled Channel (CRC) with a simple rotation motion, snapping into position. The A237CR can be moved along the CRC to line up with the Furring Channel spacing.

A237CR comes pre-assembled for quick and easy installation. It is designed to suit 7/8" and 1 1/2" furring channels. Clips are provided with a 1/4" hole to suit a variety of fasteners.

Features:

  • Engineered thermoplastic rubber with outstanding sound absorbing characteristics
  • Simple design; adaptable to hundreds of applications
  • Consistent and reliable quality; manufactured under ISO9001 quality control system
  • Cost effective solution to isolate airborne noise
  • Does not use metal washer or metal insert in rubber
  • A237CR clips can be used to suit 7/8" and 1 1/2" furring channels
  • A237CR clips are provided with a 1/4" hole for a variety of fasteners
  • 1 hour and 2 hour fire-tested

Applications:

  • Multi-family housing
  • Mixed use commercial buildings
  • Studios
  • Home Theater

Specifications:

  • Clip Height: 2 11/16"
  • Metal Thickness: .047" / 14 gauge
  • Clip Width x Length: 1 3/8" x 3 1/8"
  • Load Capacity: 55 Lb. maximum dead load
  • Maximum spacing of clips on furring: 48"
  • Spacing between furring channels: should not exceed 24" OC

How Many To Order:

Clips can be spaced up to 48" apart with spacing of up to 24" between channels. When using this spacing, divide the square footage of the area to be treated by 5. That will give a rough estimate of the amount of clips needed. In most cases you will need to compensate for being within 6" to walls/ceilings so we have found that calculating the square footage by 23% should get you close to the amount of clips needed.

For detailed usage see our How To Soundproof Article

Need help planning your soundproofing project? You can always call our office at 845-388-1200 with any installation questions that arise. Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips. We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

Printable Documents:

Click here to view and print Product Data for TMS Silent Clips A237CR.

Click here to view and print Testing Data for TMS Silent Clips A237CR.

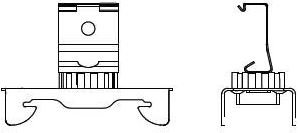

Dimensions and Specifications:

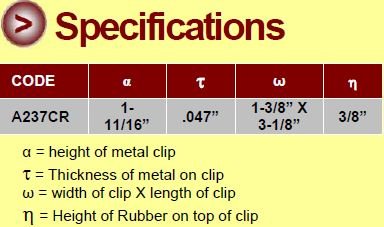

A237CR Clip Specifications A237CR Clip Specifications

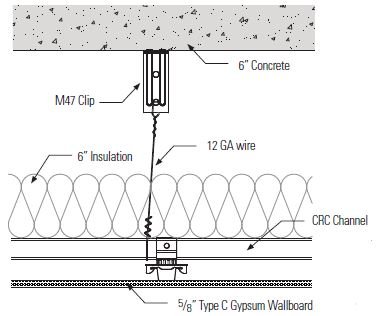

Sample Application:

TMS A237CR Clip Sample Application

Classifications:

Shipping & Returns
Shipping and Return information is specific to this product page only (not for other products on our site).
  • Shipping:
    • Product is in stock and ususally ships within 1 business day.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.



  • Returns:
    • Product may be returned up to 60 days if in brand new condition.
    • A $10.00 fee will be charged to cover the original shipping cost.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
pros
  • Effective (1)
  • Simple installation (1)
cons
best uses
  • Home Studio (1)
  • Studio ceiling construction (1)

Reviewed by 1 customers

Displaying reviews 1-1

By Finished edge

from New York , NY

About Me Contractor specializing in studio construction

Verified buyer
5.0
Use these every time
12/31/15
pros
  • Effective
  • Simple installation
cons
best uses
  • Home Studio
  • Studio ceiling construction
Comments about Resilmount A237CR CRC Clips For Drop Ceiling Applications:
Makes hanging an isolated ceiling system with black iron nearly fool-proof
Bottom Line Yes, I would recommend this to a friend
Displaying reviews 1-1
Recently Viewed
Q&A

Customers Questions and Answers

1) Jeff O: Trying to get information about this product. Interested in testing that has been done on the effectiveness of its acoustical isolation. Thanks.

Trademark Soundproofing Reply: Jeff, What application will you be using this in? We can check if there is any data for that.

2) Jeff: Floating drywall ceiling 2 5/8 in layers

Trademark Soundproofing Reply:

You should receive at least an STC rating of 59 with one layer of drywall (baring any penetrations or flanking sounds) see this testing on standard clips. The CR clip has even more decoupling to it http://www.tmsoundproofing.com/products/Studco/A237R_TestingDataforFloorandCeilingAssemblies.pdf
