Resilmount A96R Clip With Additional Drop

Resilmount A96R Clip With Additional Drop

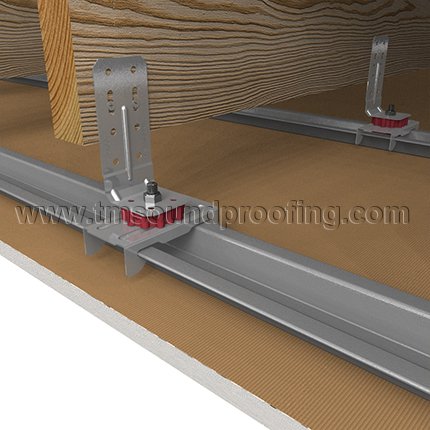

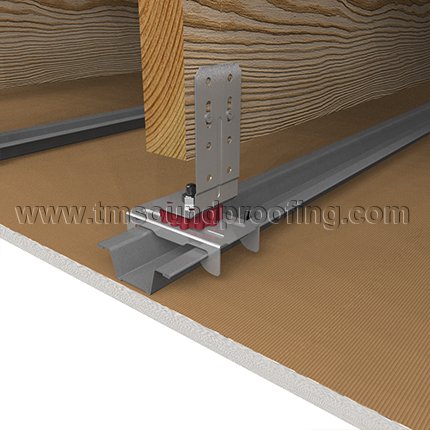

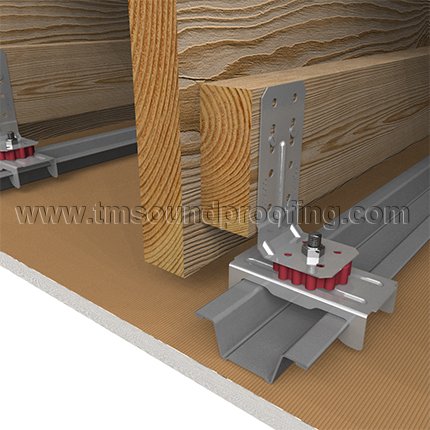

A96R Application A96R Application A96R Application

TMS Silent Clip Resilmount A96R Clip With Additional Drop

  • Adjustable bracket to add up to 4" in drop ceiling applications.
  • Designed to create an airspace for HVAC or plumbing equipment while reducing the overall profile of the acoustical system.
  • Can be used to straighten uneven joists in floors or ceilings.

24 HOUR SHIPPING!

FREE SHIPPING applies for orders over $75.  See Shipping and Returns Tab below for additional information.

Price: $6.49
Qty
Save to wishlist
Note: you must order at least 10 items
Made in USA
Fast turnaround
SKU RES-A96R
Quantity Price
500+ Items $5.99
*Note:
Description

TMS Silent Clips - A96R provide an essential acoustic isolation solution for suspending furring channel below ceiling joists, creating a "drop ceiling application" while stopping sound in its tracks.  It is the solution of choice for areas where extra space is needed i.e. for HVAC equipment or plumbing, without compromising on sound control.  It can also be used to level out uneven floor joists while breaking sound waves.

A96R Clips are an effective solution for music studios, home theaters, residential housing or any area where quality soundproofing is needed without compromising on amount of space lost for soundproofing apparatus. It is the clip of choice for retrofit construction which creates a custom soundproof environment with minimal construction and demolition needs.

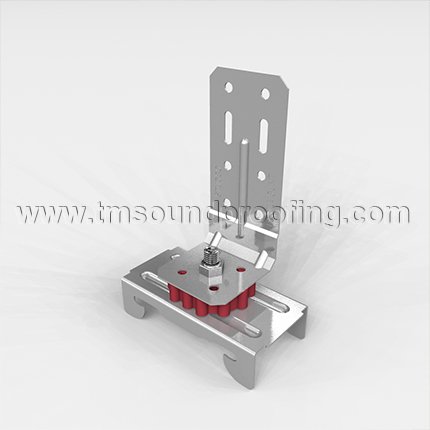

Quality decoupling is essential in breaking the mechanical connection of sound waves.  With TMS Silent Clips in a  variety of designs, common sound problems can be solved by simply replacing standard direct fixing clips.   They are adaptable with holes for various fasteners making it applicable for hundreds of applications. The A96R clip is designed with an L bracket attached to a A237R sound isolation clip, providing a unique solution for ceiling and floor soundproofing.

Features:

  • Engineered thermoplastic rubber with outstanding sound absorbing characteristics
  • Simple design; adaptable to hundreds of applications
  • Consistent and reliable quality; manufactured under ISO9001 quality control system
  • Cost effective solution to isolate airborne noise
  • Does not use metal washer or metal insert in rubber
  • A96R can be fastened directly to trusses and purlins providing adjustability.  Provided with a variety of holes for different fasteners.
  • Fits both 7/8" & 1 1/2" furring channel.

Applications:

  • Music applications
  • Home theaters
  • Residential Housing

A96R Clip Specifications:

  • Width:  3 -  5/16 in.
  • Height:  4 - 15/16 in.
  • Depth:   1 - 11/16 in.
  • Weight:  0.5 lbs
  • Max Spacing Between Clips: 48" OC
  • Max Load: 55 Lbs. dead weight

How Many To Order:

Clips can be spaced up to 48" apart with spacing of up to 24" between channels.  When using this spacing, divide the square footage of the area to be treated by 5.  That will give a rough estimate of the amount of clips needed.  In most cases you will need to compensate for being within 6" to walls/ceilings so we have found that calculating the square footage by 23% should get you close to the amount of clips needed.  See Installation Tab above for layout diagram.

Need help planning your soundproofing project?  You can always call our office at 845-388-1200 with any installation questions that arise.  Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips.  We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

Printable Documents:

For a printable version of Product Data for TMS Silent Clip - A96R, click here.

Features:

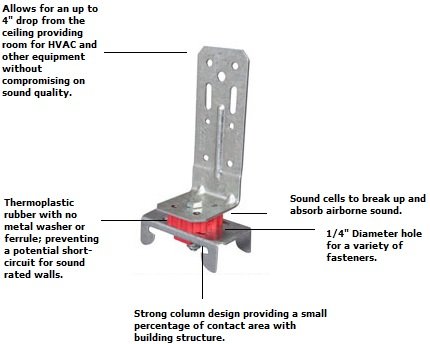

A96R Clip Features

Dimensions of A96R Clip and Compatible Hat Channel:

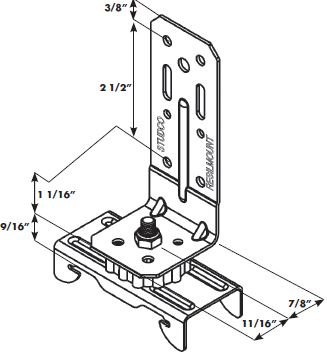

A96R Clip Dimensions Hat Channel Specifications

Sample Applications:

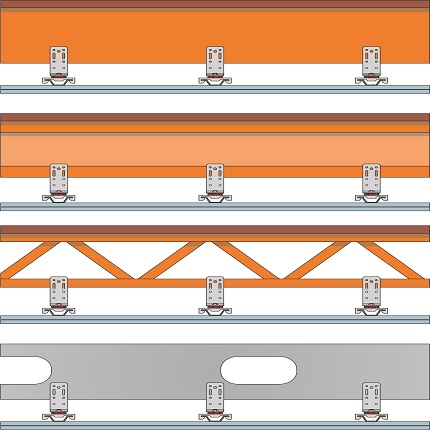

A96R Clip Sample Applications A96R Clip Specifications

A96R Clip Specifications:

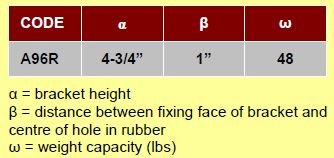

A96R Clip Specifications

Classification:

A96R Clip Classification

Installation Guide

Printable Documents

For a printable version of Installation Instructions for TMS Silent Clips - A96R, click here.

General Guidelines

  • A96R to be fastened to structure with a minimum #8 screw or masonry sleeve anchors.  (See fasteners manufacturers specifications)
  • Load capacity: 55 lbs. maximum dead load.
  • Maximum spacing of clips on furring channel is 48"
  • Spacing between furring channels should not exceed 24"
  • Ensure that a 1/4" gap is left around the perimeter of the ceiling to fill with acoustical caulk.

Installation Guidelines

  • Use a 4 ft. level when installing furring channel to ensure that it is installed level.
  • .25 gauge furring channel should be used on ceilings.
  • When using A96R clips, furring channel is installed parallel to ceiling joists.

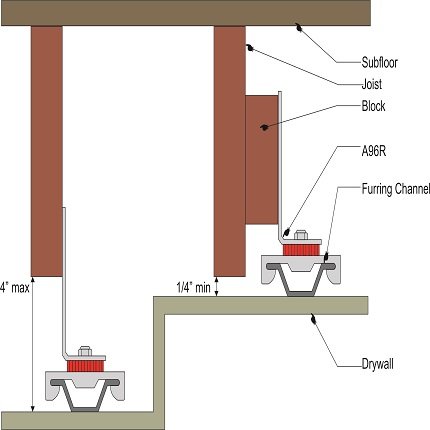

  • If "recessing" the clips to minimize lost ceiling space, affix mounting blocks, to the floor joists and install clips to the mounting blocks.

Installing Clips

  • Measure placement for the clips using our layout guidelines listed above.  Mark the location for each clip then install clips using appropriate screws.  If desired, use mounting blocks to recess the clips.  Mounting blocks should be about 6" long with the A96R clip placed in the center of the mounting block. Outermost clips must be spaced at every interval.
  • Snap furring channel into the clips.
  • Have someone hold the drywall in place while screwing the drywall directly into the furring channel using a drill.  Screws should not enter any floor joists.  Leave a 1/4" gap around the perimeter of the ceiling.  This ensures decoupling from the wall making it impossible for vibrations to travel through surfaces.
  • Use acoustical sealant to fill the gaps around the perimeter of the ceiling and around any lighting fixtures and vents.

Optimal Layout

 For a printable version of Optimal Layout for Resilmount Clips, please visit.

Layout for Studs with A237R Clips

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product ships within 1 business day.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Returns:
    • Product may be returned in brand new condition within 60 days from date of purchase.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
pros
  • Effective (2)
  • Great Overall Soundproofing (2)
  • Versatile (1)
cons
best uses
  • Soundproof construction (1)

Reviewed by 2 customers

Displaying reviews 1-2

By Mark

from Shawnee, KS

About Me DIY

Verified buyer
4.0
Makes leveling a ceiling easy
07/15/16
pros
  • Effective
  • Great Overall Soundproofing
  • Versatile
cons
best uses
  • Soundproof construction
Comments about Resilmount A96R Clip With Additional Drop :
These clips work pretty well for helping to attenuate sound waves by making a good break between the ceiling joists and the drywall. In addition, they make it pretty easy to level the ceiling and make it flat. The center channels allow positioning the clips close, and then you can slide them up or down as needed. Once they are positioned, you can use the upper or lower mounting holes to lick the clip in place.
Bottom Line Yes, I would recommend this to a friend

By AbeD

from New York, NY

Verified buyer
5.0
Great clips for a good value
04/12/16
pros
  • Effective
  • Great Overall Soundproofing
cons
best uses
Comments about Resilmount A96R Clip With Additional Drop :
Used on an uneven ceiling. Price is much better than the other brand names.
Bottom Line Yes, I would recommend this to a friend
Displaying reviews 1-2
Recently Viewed
Q&A

Customers Questions and Answers

1) Erik B: Do your TMS-A96R cips UL rated for a fire rated assembly?

Trademark Soundproofing Reply: Yes this clip is Fire Rated

2) Erik B: Are these UL rated for a 1-hr ceiling assembly?

Trademark Soundproofing Reply: Hi Erik, Yes these clips are UL rated. Please see the product data tab.

3) Rich: How much do the A96R Clips cost? I see 500+ for 5.99

Trademark Soundproofing Reply: Correct. That is the price per clip if you purchase over 500 clips.

4) Peter: When using A96R clips, you mention that the furring channel is installed parallel to ceiling joists. Given this orientation, would I still use 24” spacing pattern for the clips?

Trademark Soundproofing Reply: Yes. 24 inch is the maximum. You can go less for additional strength.
