TMS Silent Clips - A130R TMS Silent Clips - A130R Application

TMS Silent Resilmount A130R Heavy Duty Mount Acoustic Isolation Brackets

  • Used to decouple heavy items for noise and vibration isolation.
  • Height matches Resilmount A237R and standard 7/8" hat channel combination.
  • Priced Per Piece

FREE SHIPPING applies for orders over $75. See Shipping and Returns tab below for additional information.

Price: $14.99
Save to wishlist
Note: you must order at least 2 items
Made in USA

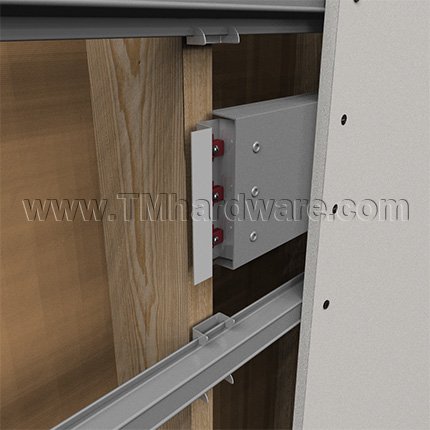

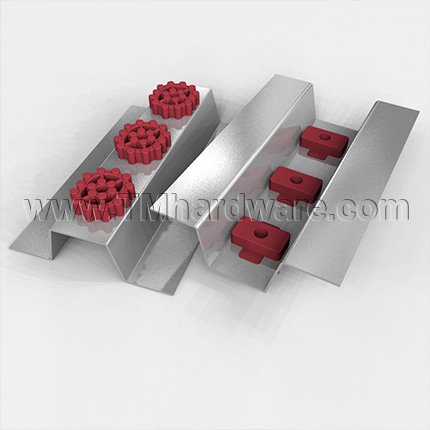

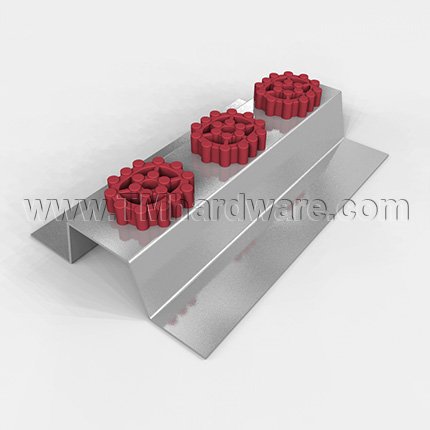

TMS Silent Clips A130R is a heavy duty bracket used in conjunction with TMS Silent Clips A237R and Hat Channels for heavy duty support and noise isolation.  It is used to decouple heavy items between the wall and the surface you are mounting to for noise and vibration isolation. Can be used in new or retrofit construction for a complete noise isolation system.

•  Applications: For new or retrofit construction. Height matches TMS Silent Clips A237R and standard 7/8" furring channel combinations.

•  Acoustic Design Load: 110 LBS.

•  Design: Designed to fit inside a 6" metal track. Wider flanges for easier screwing.

•  Installation: Supplied fully assembled. All 3 clips on the bracket must be screwed into the stud or framing. Metal track sits on top and must be screwed off a minimum of 4 times per clip. See Product Data Tab for recommended layout of clips.

•  Sample Uses: Cabinets, Chalk Boards, Projector Screens, Handicap Grab Bars, Lockers TV Wall Mount Support and Handrails.

•  Quality: Consistent and reliable quality - manufactured underISO9001 quality control system

•  Priced per piece

•  Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.

Need help planning your soundproofing project? You can always call our office at 845-388-1200 with any installation questions that arise. Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips. We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

Printable Documents:

Click to print TMS Silent Clips - A130R Product Specs

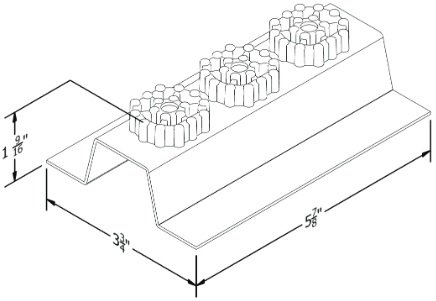

A130R Dimensions:

Resilmount A130R Dimensions

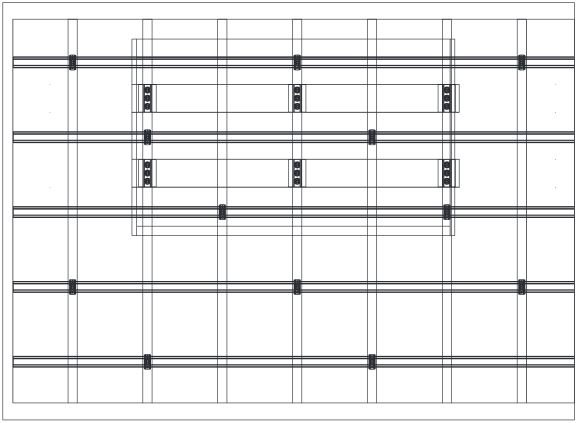

Standard Layout:

Resilmount A130R Layout


Resilmount A130R Classifications
