TM Soundproofing Sound Control Curtains Sound Curtain- Heavy Duty
Sound Curtain- Heavy Duty
Click on arrows to scroll through images
Click on image to enlarge

Sound Curtain- Heavy Duty

0.0

Durable Noise Barrier and Sound Absorber curtain for temporary applications, featuring a vinyl-faced, quilted absorber. Product has a life span of 3-5 years and ensures maximum sound absorption in high noise volume areas.  Economic alternative to rigid acoustical panel systems geared for easy relocation and modification, product can be moved around a construction site as sound control needs shift.

Features:

  • Vinyl faced quilted absorber
  • Reinforced loaded vinyl barrier
  • Top and bottom grommets and vertical velcro
  • 3-5 year life span
  • Complies with Construction Noise Ordinances

Free Shipping! See Shipping and Returns tab below for information.

PLEASE NOTE:  When ordering 2 LB. curtains, there is a minimum order amount of 2 curtains.

Please call our office at 845-388-1200 for discounted pricing for orders of 5 or more curtains.

Price: $397.50
SKUBBC-13X-96-GR-GR
Quilt Color :
Barrier Color:
Dimensions:
Facing Thickness:
Barrier Weight:
Quantity:

Materials-

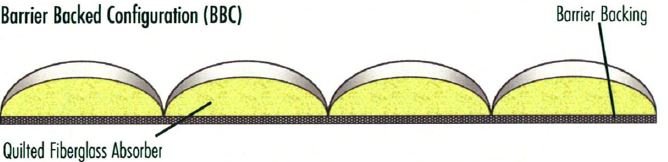

TradeMark Soundproofing’s Heavy Duty Sound Curtain consists of a tear-resistant, one or two-inch thick, vinyl-coated quilted fiberglass that is bonded to a one or two lb., reinforced  loaded-vinyl noise barrier.  The quilted fiberglass layer decouples the noise barrier to enhance its acoustical performance.  Product is flexible and can be easily installed around any construction project within minutes.

Our exterior grade Sound Curtain can be used for both indoor and outdoor short term applications.  This product complies with construction noise ordinances and has a lifespan of 3-5 years.  For long term projects, check out our long-lasting, Heavy Duty Sound Curtains

Sound Curtain panels are constructed with top and bottom grommets and exterior grade Velcro seals along the vertical edges. This product is also available as a full roll with edges bound. When ordering a full roll, grommets and Velcro are not included.  Choose from a variety of colors that easily blend into your landscape.

Features-

  • Class A (or 1) flammability rated per ASTM E- 84
  • For indoor or outdoor applications
  • Available facing colors on quilt: gray, tan, or black
  • Available barrier colors: gray, tan, light blue, black
  • Flexible for quick and easy installation around hard to cover projects.
  • Durable, tear resistant, resists most chemicals
  • Fabricated with grommets across top and bottom and exterior grade Velcro seams along vertical edges.
  • Complies with Construction Noise Ordinances, acoustical ratings: STC 27-37, NRC .70-.85 (see product data)

Applications-

  • Chain-link fences
  • Wooden support structures
  • Construction barriers
  • Double Jersey barriers
  • Construction site mitigation projects

How to order-

Choose from our standard sizing of 54” by 96”, 54" by 108", 54” by 144” or 54” by 25' with thickness options of 1" or 2" and barrier option weight of 1 LB or 2 LB.  Choose from a wide variety of color options for both the facing and barrier colors.  Panels comes with top and bottom grommets and Velcro along vertical edges,  full rolls do not have grommets or Velcro and are fully bound around all edges.  Sound Curtains can be custom ordered to size as an insulator for noisy equipment.  Please contact us at 845-388-1200 for pricing and details for custom ordering.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product qualifies for FREE SHIPPING, see shipping and returns tab to the right for information.

Please visit our website for more quality soundproofing solutions.

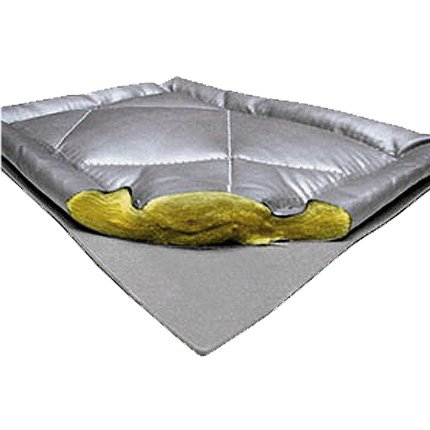

Cross Section of Material:

Product Specs of Sound Curtain

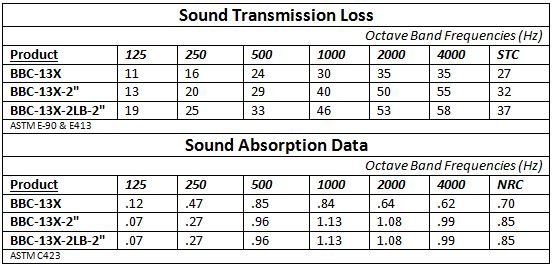

Acoustic Performance:

For a printable version of Product Data for Sound Curtain- Heavy Duty, please visit.

Acoustic Performance for BBC13X

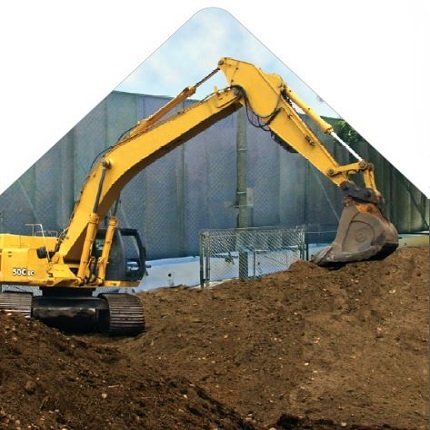

Sample Use:

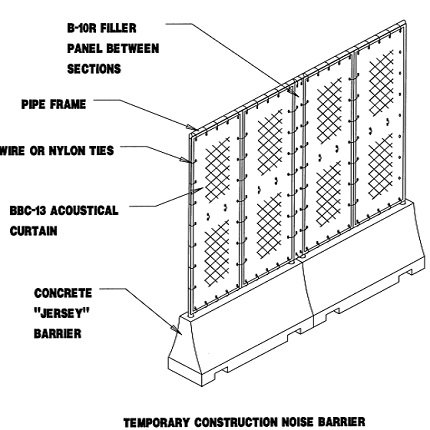

Sound Curtain Noise Barrier
