Sound Curtain- Heavy Duty, Economic

Sound Curtain- Heavy Duty, Economic

Durable, UV resistant, Exterior Grade Sound Curtain features a VCP faced quilted fiberglass absorber bonded to a non-reinforced vinyl barrier for a top soundproofing panel at an unbeatable price.  Product has a 3-5 year life span and is the ultimate choice for commercial and industrial construction sites, drilling sites and mass transit construction.

Due to the large volume of orders and the customized manufacturing of this product. Please allow 6-10 weeks (from drawing approval) for this product to ship.

Features:

  • Exterior Grade, UV resistant, heavy-duty, VCP faced quilted fiberglass absorber
  • Non-Reinforced Vinyl Noise Barrier
  • 3-5 year life span
  • Top and bottom grommets included with vertical velcro
  • Comply with Construction Noise Ordinances

Free Shipping!  See Shipping and Returns Tab below for more information.

Pricing below is for a minimum order of 6 items.  If less are needed, please contact our office 845-388-1200 at for pricing and availability.

Request a quote

Facing Color
Barrier Color
Dimensions
Facing Thickness
*
*


Made in USA
SKU BBC-EXT-N-96-GR
Description

Our most economic option for quality outdoor soundproofing, this product features a money saving non-reinforced noise barrier with a UV and tear resistant exterior grade quilted fiberglass absorber.  It has both the benefits of a sound absorber on one side and a noise barrier on the second side for optimal noise control in all settings.  Product complies with Construction Noise Ordinances and has a lifespan of 3-5 years (when installed properly).  Product is flexible and easy to handle for convenient installation and relocation.

Panels are available in standard sizing of 54"X96", 54"X108", 54"X144" or as a full bound roll of 25'.  Panels are equipped with top and bottom grommets (and middle if over 8') as well as Velcro seals along vertical edges.  When ordering a full roll, grommets and Velcro are not included.

For additional soundproofing options for construction sites, please see our Sound Curtain - Heavy Duty.

Features:

  • 1" thick or 2" thick exterior grade, quilted fiberglass absorber bonded to 1 LB psf non-reinforced vinyl barrier.
  • Equipped with top and bottom grommets (middle if over 8') as well as Velcro seals along vertical edges.
  • NRC rating: 1"-.70, 2"-.75
  • STC rating: 1"-27, 2"-33.
  • Economic alternative to rigid acoustical panel systems, easy to install, relocate and modify.

Applications:

  • Commercial and Industrial Construction
  • Highway and Bridge Construction
  • Drilling Sites
  • Mass Transit Construction
  • Double Jersey Barriers

How To Order:

Choose from four convenient sizes of 54"x96", 54"x108", 54"x144" or 54" by 25'(full bound roll).  Choose the color that best suits your design application as well as the required thickness.  Panels come with top and bottom grommets and vertical Velcro seals for easy installation and relocation.  Full rolls are bound at the edges but do not have grommets or Velcro.

There is a minimum order amount of 6 panels.  If less are needed, please contact our office for pricing and availability.

Please note, images are for illustrative purposes only.  They are not actual photos.  Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product qualifies for FREE SHIPPING, see Shipping and Returns Tab to the right for more information.

For additional soundproofing products, please see our extensive fabric panels selection.

Product Data

Cross Section of Material:

Product Specs of Sound Curtain

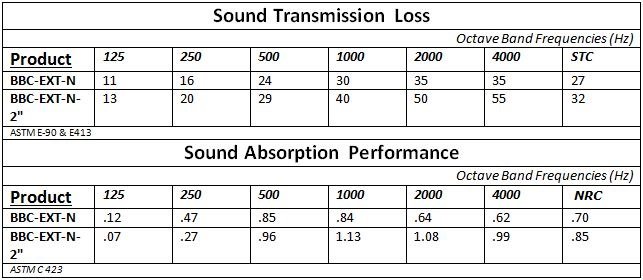

Acoustical Performance:

For a printable version of Product Data for Sound Curtain- Heavy Duty, Economic, please visit.

Sound Curtain Acoustic Performance

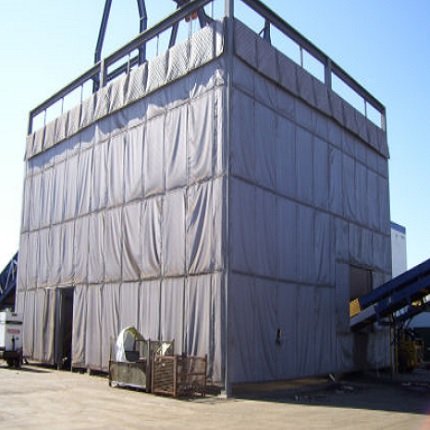

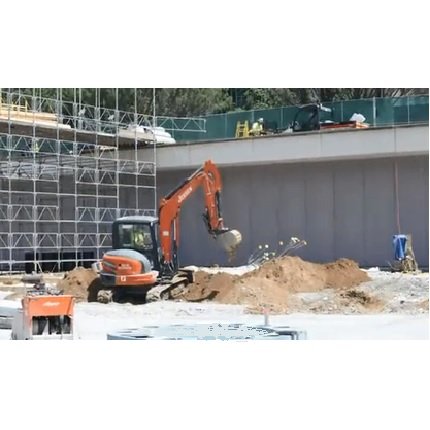

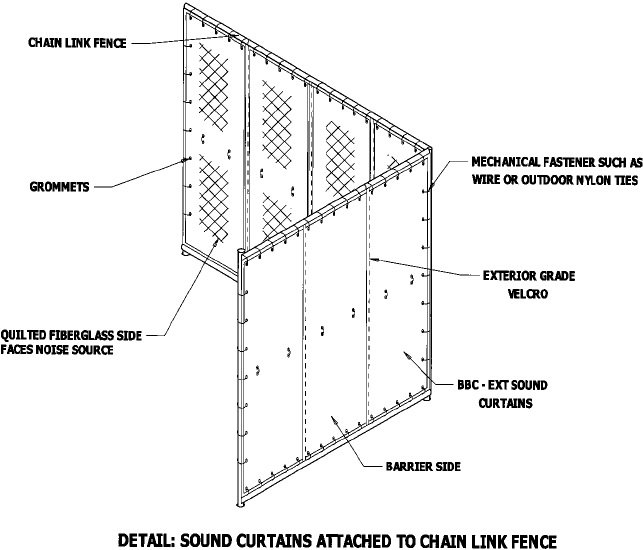

Sample Application:

Sample Use for BBCEXTN

Shipping & Returns


Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • As this product is custom cut, please allow 3-6 weeks to ship.
    • FREE SHIPPING on this product - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.

  • Returns:
    • The sound curtain is custom cut and NOT eligible for returns.
