Auralex LENRD Bass Traps

Auralex LENRD Bass Traps

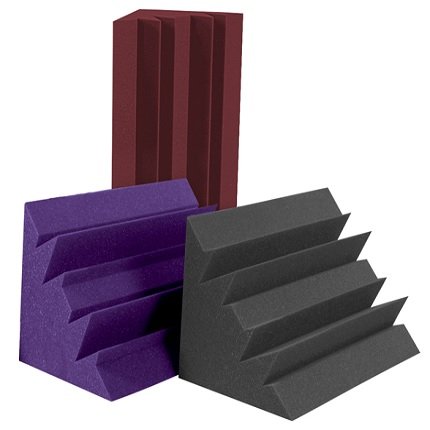

Auralex LENRDs give low frequency sound control to upgrade your acoustical environment to professional standards. LENRD Bass Traps are extremely effective at smoothing out low frequency sound from room corners where bass buildup tends to congregate.

  • DIMENSIONS: 12"X12"X24"

FREE SHIPPING! See Shipping and Returns Tab below for additional information.

Price: $199.98
Save to wishlist

LENRDs are Low-End Node Reduction devices for low frequency sound control which smooth out resonance bumps and tames a room's frequency response.   Auralex LENRD Panels offer effective acoustic management for low-frequency control in all areas without requiring huge investments of effort and expense.  They offer a distinctive look for soundproofing corners where bass buildup tends to occur.  Available in Charcoal, Burgundy and Purple to suit your rooms décor'.

Made of high-quality melamine-free Studiofoam formula which is durable and won't crumble with age. Studiofoam is painted throughout the material ensuring uniform color even when trimming or cutting the panels to suit your design.

Panels are flexible and easy to trim preferably with an electric carving knife for optimal aesthetic appeal. Panels are uniformly cut thereby providing a seamless installation and professional appearance. Can be installed easily with either Foamtak Spray Adhesive or TubeTak Pro Adhesive.

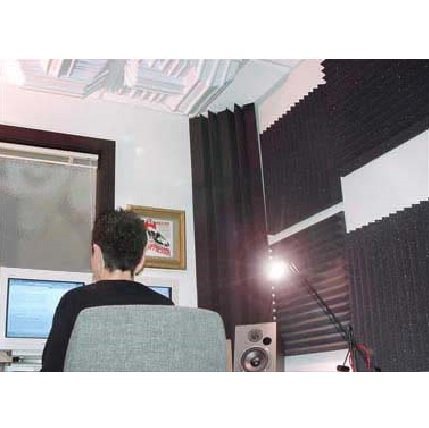

  • Recording Studios
  • Mixing Rooms
  • Home Theatres
  • Any critical listening environment

PLEASE NOTE:  These panels are not fire-rated.  In applications where fire-rating is a priority, please see our Sonex Panels.


Studiofoam bass traps are lightweight and easy to install using Auralex EZ-Stick Pro peel and stick tabs, Tubetak Pro or Foamtak adhesives. Use 1 Foamtak or 2 Tubetak per box or 6 EZ-Stick Pro Tabs Per LENRD.

How To Order:

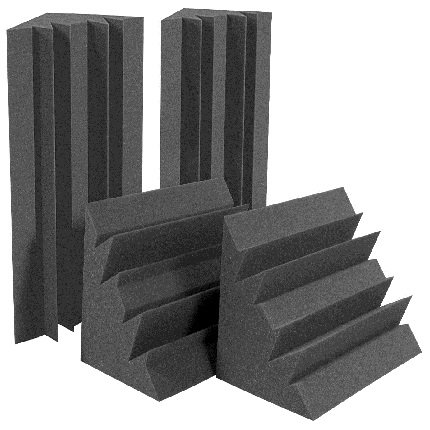

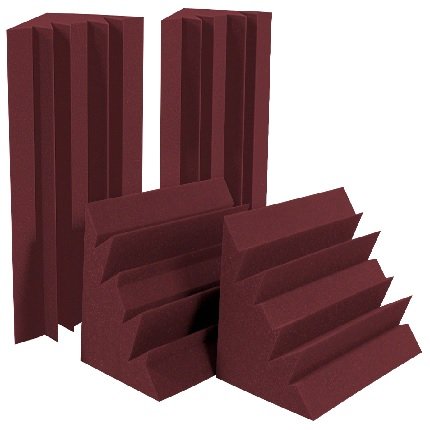

Choose from our Charcoal, Purple and Burgundy color options.  Select the color of your choice to view a color sample in large or view a full color chart in the Product Data Tab. Actual color may vary based on your monitor setting.  It is advisable to order a color sample prior to ordering panels. Please email us with your selection and shipping address and we will be happy to send you a free color sample.  Product is sold per case with an option of four panels or eight panels per case, choose from the dropdown menu above.

FREE SHIPPING!  See Shipping and Returns Tab above for additional information.

For additional bass trap options, see our Auralex Cornerfills or Auralex Sunbursts.

Product Data

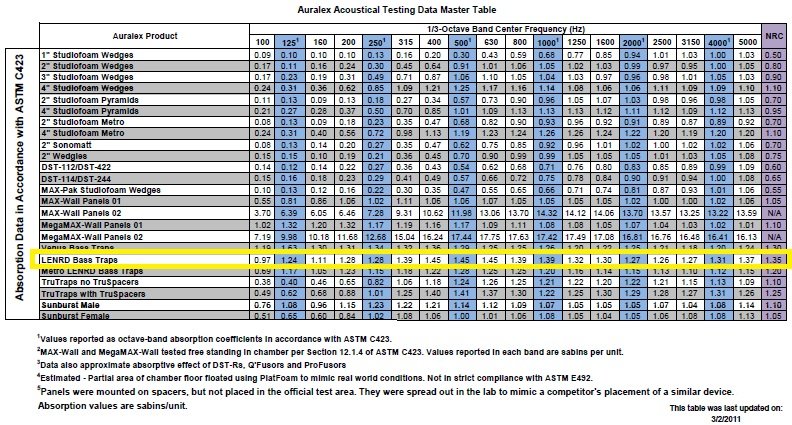

Acoustic Performance:

Auralex LENRD Bass Trap

Cleaning and Maintenance Information:

Since Studiofoam is an open-cell material, we strongly advise against getting it wet.  Any moisture trapped in the cells can mold and create more cleanliness issues, although it will not affect performance.  For cleaning the foam you can dry dust or use an upholstery attachment on a vacuum cleaner.

Installation Guide

For a printable version of Installation Instructions for Auralex Studiofoam Panels, please visit.

  • Prior to mounting, mark desired panel locations on the wall with small pencil marks or masking tape.
  • If you need to cut your Studiofoam, it is recommended to use a straight edge and an electric carving knife.  Don't force the knife; let the blades do the work.

EZ-Stick Pro:

Clean attachment points on the wall surface with Isopropyl alcohol (avoid household cleaners), wipe gently and let dry.  Separate the EZ-Stick Pro Tabs from each other.  Remove one of the paper release liners from the strip.  Apply the tabs on the rear of the panel near the outside edges, orient vertically for maximum holding strength.  Remove the second paper release liner from the backside of the tab, position the panel with the target location on the wall and press firmly to attach.  Use 4 tabs for a 2'x2' Studiofoam panel and 6 tabs for a 2'x4' panel.

Tubetak Pro Liquid Adhesive & Foamtak Spray Adhesive:

Both are contact adhesives, so wait a period of time after applying it to the back of the panel before trying to adhere the panel to the wall.

  • Tubetak Pro (caulk gun required) typically works better if it is spread thin, use a putty knife if needed.  If the adhesive seems to take a while to dry (cure time can be dependent on humidity and other environmental factors), you may consider supporting the panel in place with a T-pin or finish nail.
  • If you are using Foamtak (US only), hold the can 12 to 18" away from the Studiofoam and shake the can from side to side to yield a spider web pattern.  For best results apply to both surfaces, allow 45 seconds to tack and then apply.  For a more temporary bond apply the Foamtak to one surface only.  Storing the Foamtak upside down between applications may allow a more consistent spray pattern.  You can use the Studiofoam carton as spray shields for a cleaner installation.  Stacking two Studiofoam cartons can provide a convenient work surface.

TEMP Tabs:


TEMP Tabs are a semi-permanent mounting kit that is a great way to temporarily install your Studiofoam.  Removing the tabs causes some minimal damage to walls that may require spot repairs.

Other Mounting Options:

  • T-Pins or Finish Nails can be used to tack the panels in place for a quick installation with minimal wall damage.  Sometimes larger nails or panel movement can cause the foam to tear, so this is usually best as a temporary installation method.
  • Studiofoam can be mounted to a backing (such as pegboard, Corex, cardboard, plastic, plywood, etc) before installing it on a wall.  This assembly allows for added durability when relocating/repurposing Studiofoam panels.


  • EZ-Stick Pro Tabs may not adhere well to some vinyl wallpapers.  Apply to surfaces above 50° F (10° C).  Adhesive could soften and lose adhesion above 105º F (40° C).  EZ-Stick Pro Tabs are considered permanent and will damage the wall surface when removed.
  • Both Tubetak Pro and Foamtak are considered permanent installations.  Removing a panel after the adhesive has cured can result in some damage to the Studiofoam and the mounting surface.  Auralex is not responsible for any damage to walls, floors, ceiling or the overall structure that occurs doing installation or removal of our products.  Try using a flat edge knife to carefully scrape the panel away from the wall to minimize tearing, and then use a citrus-based adhesive remover.
