TMS Silent Resilmount A237BR Acoustic Isolation Brackets With Bolt

  • Acoustical isolation brackets used in steel joist and drop ceiling applications.
  • 3 bolt length options, see below for details and pricing.
  • Fully assembled product, A237R clip with bolt
  • Clip attaches directly to standard furring channel to enable decoupling between the gypsum board and structure.

FREE SHIPPING applies for orders over $75! See Shipping and Returns Tab below for additional information.

Price: $8.99
Cord Length
Qty
Save to wishlist
Note: you must order at least 10 items
Made in USA
SKU RES-A237BR_3"
Description

TMS Silent Clips A237BR is a combination of the A237R sound isolation clip and a bolt in various lengths.

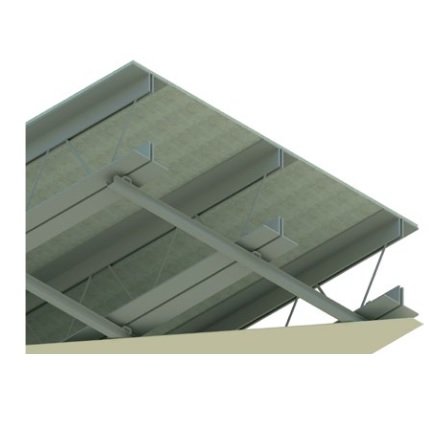

  • Applications: For new or retrofit construction. Used in steel joist applications where a dropped ceiling is needed. Used to isolate the ceiling and the floor above acoustically to reduce structure and airborne noise.
  • Design: Available in 3 bolt length options: 3", 4" and 5".  Can be used in conjunction with standard furring channels.
  • Installation: The bolt on the A237BR fits directly through a steel joist and the A237R. The bottom of the clip accepts standard furring channel which enables the gypsum board to be decoupled acoustically from the framing above.
  • Quality: Consistent and reliable quality - manufactured under ISO9001 quality control system. Acoustically tested for STC and IIC.
  • Priced per piece
  • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.

Need help planning your soundproofing project? You can always call our office at 845-388-1200 with any installation questions that arise. Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips. We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

How it Works:

RSIC Clips are used in the process of decoupling walls and/or ceilings from the joists or studs, creating what is called a floating wall or ceiling. Decoupling the wall or ceiling helps create a soundproof environment in two ways, by breaking the path and creating resiliency.

In wall assemblies, the Clips are generally spaced every 48” OC, making the contact between the studs and boards minimal. This break in the path greatly reduces the amount of noise that travels from one side to the other in two ways. Firstly, there is no direct connection for sound to travel via the joists as the wall/ceiling is disconnected. Secondly, the wall and ceiling are given resiliency (flexibility), thus greatly reducing vibration (similar to shock springs on a car).

Product Specs:

For a printable version of Product Specs for TMS Silent Clips-A237BR, please visit.

Sample Layout:

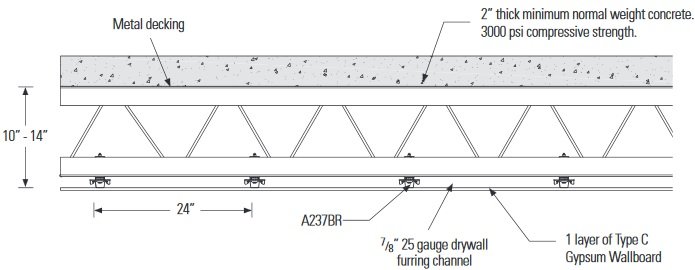

TMS Silent Clips - A237BR Sample Layout

Dimensions:

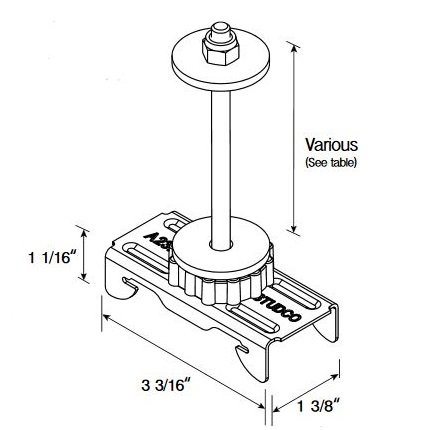

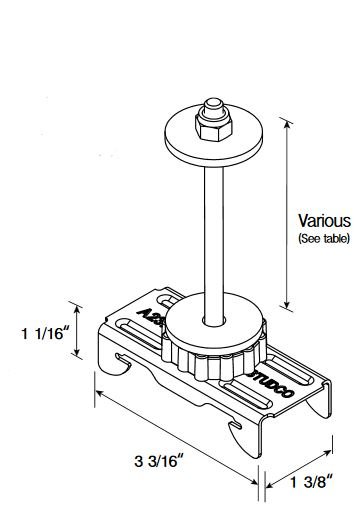

TMS Silent Clips - A237BR Dimensions

Certifications:

TMS Silent Clips - A237BR Certifications
