LED Downlight Cover, 1 Hour Fire-Rated

LED Downlight Cover, 1 Hour Fire-Rated
View detailed images (4)
LED Downlight Cover for Fire Protection LED Downlight Cover Installed LED Downlight Cover Specifications LED Downlight Cover Diameter

The FF109-200 is a low-profile, LED Recessed Light Cover made from flexible material to enable simple installation. Designed to maintain the integrity of openings of up to 6” diameter in fire-rated ceilings. Enhances the acoustic protection of ceilings when penetrated by modern LED downlight fixtures.

PRICED PER PIECE

Price: $77.00
Diameter
Qty
Save to wishlist
SKU TCS-FF109-200
Description

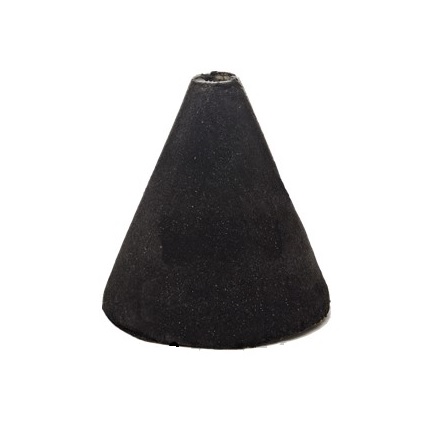

Design: Cone-shaped intumescent enclosure made from ultra-flexible material. Can be folded and fitted from above or below the ceiling

Fire-rating:

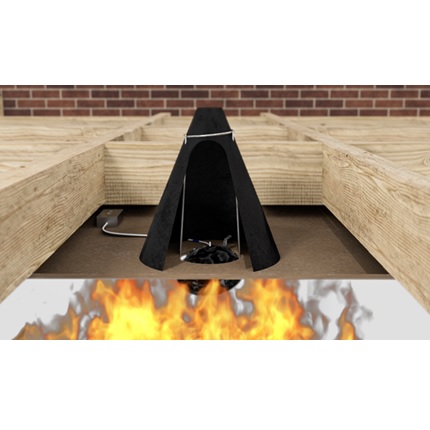

  • 60-minute flame, smoke and heat barrier protection. The high expansion and insulating properties of the cover ensure that both flame spread and heat transmission are stopped for 60 minutes.
  • Material is heat activated at a temperature of around 400 degrees Fahrenheit and expands to form a highly insulative tough char. The expanded fibers will fill up the entire cover and seal off the gap left by the molten metal fixture.

Acoustic properties: These covers have been tested for soundproofing capabilities and found to significantly reduce the noise traveling through the holes made in the ceiling for the fixtures.

Inside Height:

  • FF109-200:7”
  • FF109-250: 10"

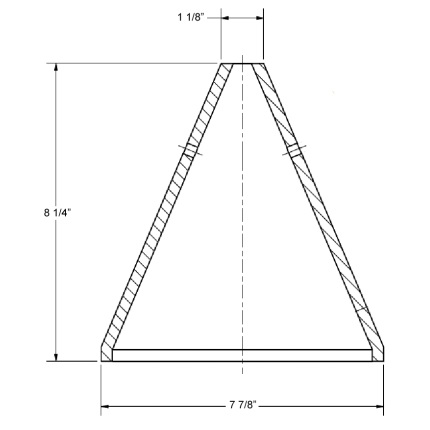

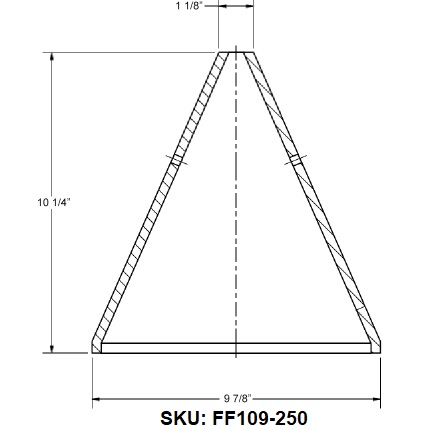

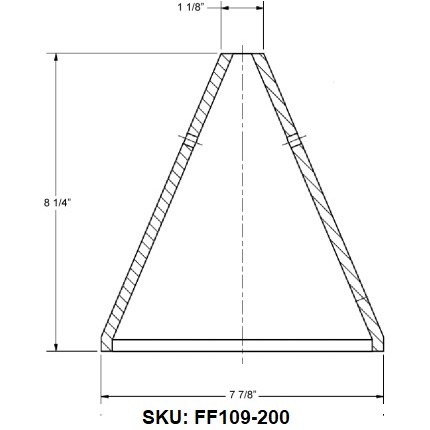

Diameter:

  • FF109-200: 7-7/8”
  • FF109-250: 9-7/8"

Applications: Fits most 4” and 6" low profile LED downlight fixtures and LED wafer lights. Can be used in new or retrofit construction in floor/ceiling or roof/ceiling assemblies (attic spaces).

Installation: Easy installation, no screws, drilling or additional sealant required. Can be folded and fitted from above or below the ceiling.

Certifications:

  • ETL-Intertek certified to maintain the fire rating (1 hour) of fire-rated floor/ceiling assemblies.
  • Tested to ASTM E119, UBC 7 1, NFPA 251, ASI A2.1

Priced per piece

For additional ceiling soundproofing, see our Recessed Light and Speaker Covers.

Product Data

Click to print Downlight Cover FF109-200 Specifications or FF109-250 Specifications.

Downlight Cover Specification Downlight Cover SpecificationDonwlight Cover Specifications

Certification:

Downlight Cover Certification

Installation Guide

Printable Documents:
Click to print Installation Instructions.

Step 1:
  • Install junction box according to manufacturer instructions.
  • Ensure metal wire included with your cover is going through the pre-punched through slots near the top of the cover so that the coil is secured around the outside of the cone.
  • Grasp the legs of the bronze wire firmly and roll cover into a tight cylinder.
  • Keeping a tight grip on the legs, feed the cover through the ceiling cutout.
 Downlight Installation

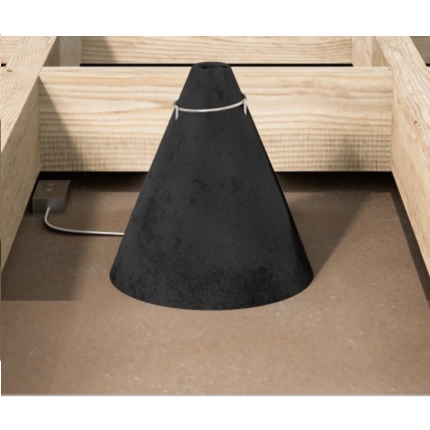

Step 2:
  • Ensure cover has sprung back into its original cone shape before proceeding.
  • Grasp legs and pull down until L section clears the underside of the ceiling.
 Downlight Installation

Step 3:
  • Move legs out until vertical part of L section is flush with the side of the cut out.
  • Release the legs so they grip the underside of the ceiling.
  • Remove the excess of both legs.
 Downlight Installation

Step 4:

Once cover is in place, LED light element can be fitted following the light manufacturer instructions.

 Downlight Installation



Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product usually ships within 4-7 days.
    • FREE SHIPPING for orders over $300.00 in the USA (excluding Alaska and Hawaii). A flat fee of $19.99 will be applied to orders under $300.00.
    Returns:
    • We will accept returns up until 60 days from the date of purchase.  The boxes need to be unopened with no damage and a 25% restocking fee will be charged.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • We will provide you with a shipping address when giving you an RMA number.
    • Return shipping is customer's responsibility.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
