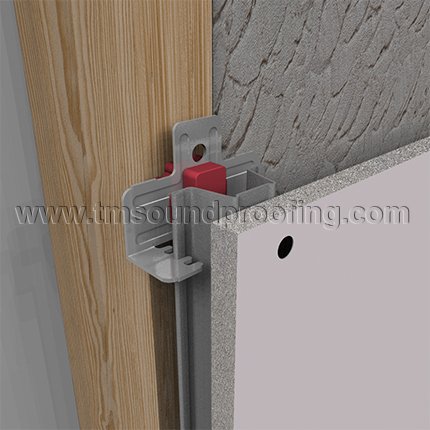

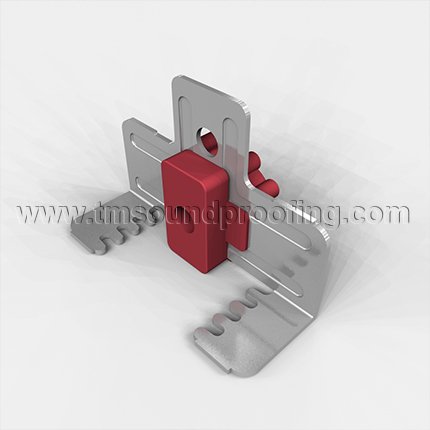

MBFR MBFR Installed
0.0

TMS Silent Resilmount MBFR Resilient Mounting Brackets With Rubber

  • Adjustable resilient mounting bracket which snaps directly into standard furring channel.
  • Includes a rubber partition for reducing airborne and structure-borne vibration.
  • Priced per piece
  • Minimum order amount: 10 Brackets.

FREE SHIPPING applies for orders over $75.  See Shipping and Returns tab below for additional information.

Price: $6.79
Clip
Qty
Save to wishlist
Note: you must order at least 10 items
Made in USA
SKU MBFR
Description

TMS Silent Brackets - MBFR are adjustable furring channel clips used to decouple walls from the building structure to comply with sound isolation requirements for acoustic walls.  They are geared to reduce airborne and structure-borne vibration in internal wall applications and provide an outstanding option for decoupling and leveling  walls.  It is a cost-effective solution for stopping sound in its tracks in homes, studios, offices, theatres and commercial applications

MBFR Brackets are suitable for use with standard furring channels, 7/8" or 1 1/2".  Installation is easy, simply fix brackets to the wall structure using minimum 8 gauge screw or masonry sleeve. They can be installed with screws, tapcons or a Hilti gun. MBFR Brackets have four adjustment options to adjust furring channels thus eliminating the need for packers. They can be installed on any type of wall substance with or without studs.

The simple and practical design of the brackets, make it the fixing of choice by many contractors for soundproofing as well as getting walls straight.  The notches in the MBFR clip allow extra tolerance in the placement of furring channel so that the resulting wall will be even and unbowed, despite any issues in the position of the wall studs.  They are suitable for decoupling virtually all types of wall applications while maintaining sound isolation properties.

For additional decoupling options, please see our TMS Silent Clips and Brackets.

Installation Notes:

  • MBFR to be fixed to structure with minimum 8 gauge screw, masonry sleeve anchors.
  • Can be installed with screws, tapcons or a Hilti gun.
  • Maximum spacing of clips on furring channel is 48".
  • Spacing between furring channels should not exceed 24".
  • Maximum dead load: 55 lbs.
  • DO NOT USE ON CEILING APPLICATIONS.

Features:

  • Engineered thermoplastic rubber with outstanding sound absorbing characteristics
  • Simple design; adaptable to hundreds of applications.
  • Consistent and reliable quality; manufactured under ISO9001 quality control system
  • Cost-effective solution to isolate airborne and impact noise.
  • Flexible, easy installation
  • Can be used to suit 7/8" and 1 1/2" furring channels
  • 1/4" hole for a variety of fasteners
  • Four adjustment options at 1/4" increments.

Applications:

  • Multi-family housing
  • Mixed use commercial buildings
  • Studios
  • Home Theater

How Many To Order:

Clips can be spaced up to 48" apart with spacing of up to 24" between channels.  When using this spacing, divide the square footage of the area to be treated by 5.  That will give a rough estimate of the amount of clips needed.  In most cases you will need to compensate for being within 6" to walls/ceilings so we have found that calculating the square footage by 23% should get you close to the amount of clips needed.  See Installation Tab above for layout diagram.

For detailed usage see our How To Soundproof Article

Need help planning your soundproofing project?  You can always call our office at 845-388-1200 with any installation questions that arise.  Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips.  We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

Printable Documents:

For a printable version of Product Data for TMS Silent Brackets - MBFR, please visit.

Dimensions for MBFR and Compatible Hat Channel:

MBFR DimensionsHat Channel for MBFR Clip

Classifications:

MBFR Clip Specifications
