Single Astragal with Sponge Neoprene Seal, Thin

Single Astragal with Sponge Neoprene Seal, Thin
Aluminum Mill Finish Meeting Stile Dark Bronze Anodized Meeting Stile

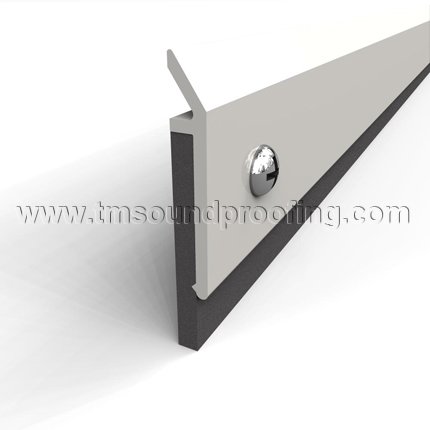

Control sound from seeping through gaps between two doors by using this Surface Mounted Astragal/Meeting Stile with Closed Cell Sponge Neoprene Seal. Designed for use on a Single Active Door in a Double Door Set. Available in Aluminum Mill Finish and Dark Bronze Anodized Aluminum casing and length is custom cut to size.

Special Discounts apply to orders over $500.00! See Product Descriptions for details.

Price: $6.74
Length (Inches)
Save to wishlist

Double doors are typically the weakest link in any partition that is designed to block sound. This is often due to poor sealing around the perimeter of the door. AstragalsGasketingAutomatic Drop Seals and Doorway Thresholds can all be used to prevent sound from leaking through cracks between and around the door perimeter.

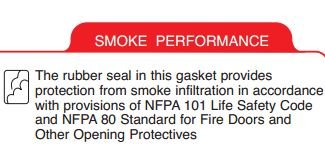

  • An Astragal is a molding that closes the clearance gap between a pair of doors. This astragal is made of an aluminum track with a thick closed cell sponge neoprene seal which will create a strong seal to prevent sound leakage. Astragal is rated for smoke and sound infiltration.

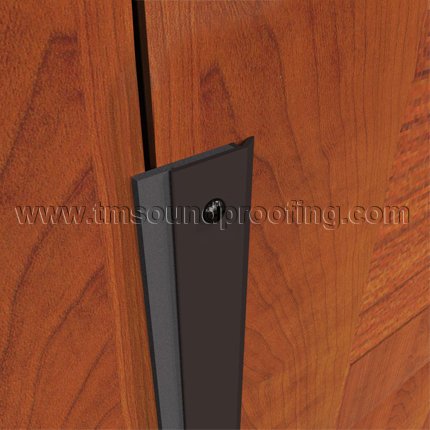

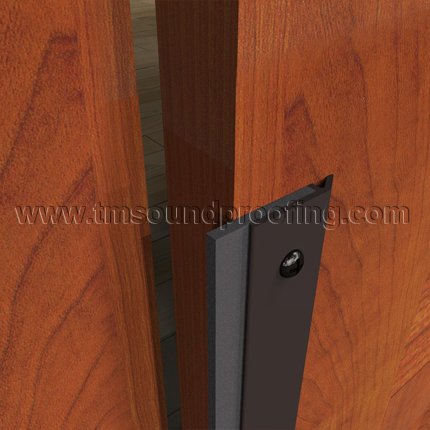

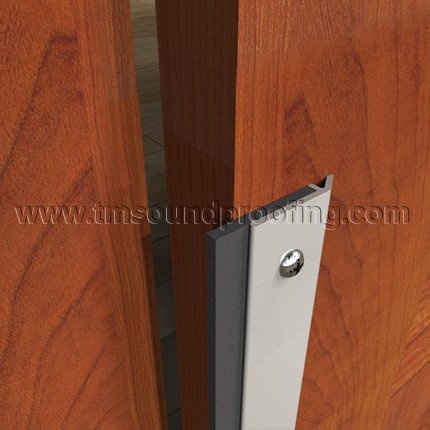

  • The aluminum track is surface mounted to the active door in double door set. The casing is punched with elongated slots to allow for some adjustments after installation.
  • The thick closed cell sponge neoprene seal can close gaps up to approximately .75”.

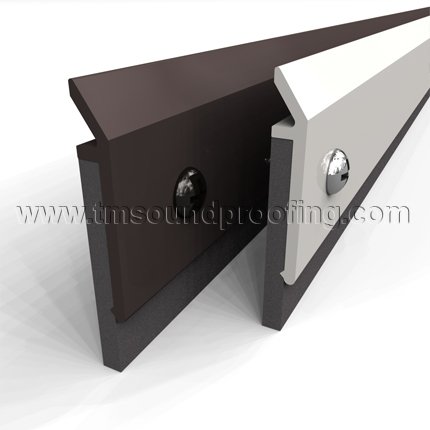

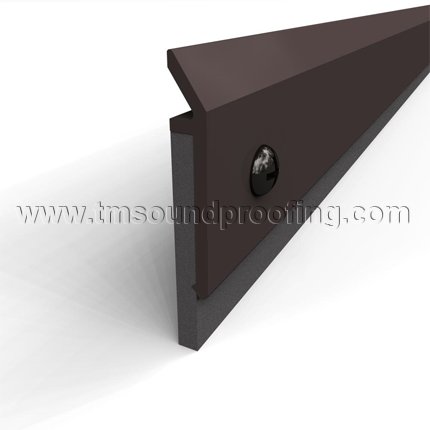

  • Available in aluminum mill finish and dark bronze anodized and is sold by the foot. Length is custom cut to size.

Length: Available through our website up to 84". For longer lengths, please contact us or call our office at 845-388-1200.

Before Completing Your Purchase:

Review product specs to ensure product is compatible with your door. Astragal is compatible with a single active door in a double door set and can fill gaps of maximum .75”. Measure the height of your door and select the length from above.

For a product that is compatible with double active doors, see our Surface Mounted Double Active Astragal.

Special Discounts on Our Door Hardware:

No Coupon Code Needed. Discount automatically applied when added to shopping cart.

Spend $500.00, get 5% off plus free shipping
Spend $1000.00, get 10% off plus free shipping

See our Monthy Specials and Discounts for more great Soundproofing Savings!

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

If you have any questions regarding this product feel free to contact us at 845-388-1200.

Product Data

Product Specs:

Click to Print Product Specs

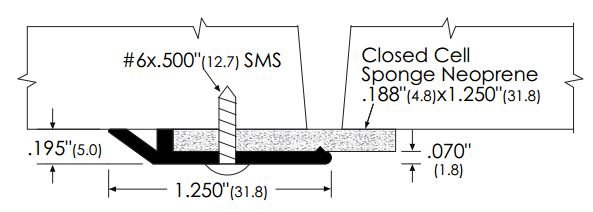

Product Specs - Single Active Meeting Stile

Compliance Details:

Compliance Details for Surface Mounted Astragal

Installation Guide

Installation for Surface Mounted Astragal

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • As this product is custom cut, please allow 10-14 business days to ship.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Shipping to Canada, Alaska or Hawaii: Free Shipping on orders over $400. There will be a flat $49.99 fee on orders under $400.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Returns:
    • This door hardware is custom cut and NOT returnable.
    • As a courtesy, we may, at our discretion, accept returns with prior authorization and a 30% restocking fee.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. Please ship to: TMS, 750 Chestnut Ridge Road, Unit 308 Chestnut Ridge, NY 10977.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Send to friend
: *
: *
: *
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.

Not yet rated. Be the first to Write a Review

Recently Viewed

Customers Questions and Answers

1) Shahe Boghossian: What are the detailed sizes of this product? Dose it exist in a total length of 180cm?

Trademark Soundproofing Reply:

You can see the exact specs here Custom sizes are available please give us a call at 845-388-1200
