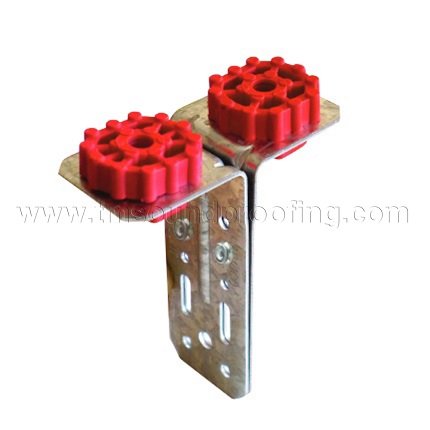

TMS Silent Clip Resilmount A72R For Heavy-Duty Decoupling

  • Double bracket for decoupling heavy items such as HVAC and garage motor apparatus.
  • For internal wall and ceiling applications
  • See below for sample applications.
  • Priced per piece

24 HOUR SHIPPING!

FREE SHIPPING applies for orders over $75! See Shipping and Returns Tab below for additional information.

Price: $14.99
Qty
Save to wishlist
Note: you must order at least 10 items
SKU RES-A72R
Weight 0.50 lbs
Description

TMS Silent Clips A72R for decoupling walls and ceilings for sound isolation. Optimal for decoupling heavy items such as, but not limited to HVAC and garage door apparatus.

Features:

  • Most commonly used for decoupling framing from exisiting structures.
  • Ideal for decoupling heavy items, such as HVAC or projector mounts.
  • Provided with several 3/16" slotted holes in bracket fixing surface, suitable for direct fixing or inserting suspension rod of suspended ceiling applications.
  • Cost-effective solution to isolate airborne noise

Sample Applications:

  • Electrical Box or Projector Mount Isolation
  • Isolation of Ceiling Fan or Vent Fan Apparatus
  • Isolation of Garage Door Apparatus Isolation
  • Dropped Ceilings or Walls to create a "Floating Wall/Ceiling Applications."
  • Speaker and Musical Equipment Isolation
  • Recessed Lighting, Heating and Venting Isolators
  • See Product Data Tab for visual presentation

A72R Clip Specifications:

  • Width: 3 7/16"
  • Height: 4 11/32"
  • Weight: 0.5 Lbs.
  • Acoustical Design Load: 110 Lbs.

Installation:

A72R to be fastened to structure with a minimum #8 screw or masonry sleeve anchors. (See fasteners manufacturers specifications.) In ceiling applications, always check load ratings with our engineers prior to installation.

Need help planning your soundproofing project?  You can always call our office at 845-388-1200 with any installation questions that arise.  Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips.  We are the only soundproofing company that is constantly installing the products we sell, so we have the answers!

Product Data

How It Works:

RSIC Clips are used in the process of decoupling walls and/or ceilings from the joists or studs, creating what is called a floating wall or ceiling. Decoupling the wall or ceiling helps create a soundproof environment in two ways, by breaking the path and creating resiliency.

In wall assemblies, the Clips are generally spaced every 48” OC, making the contact between the studs and boards minimal. This break in the path greatly reduces the amount of noise that travels from one side to the other in two ways. Firstly, there is no direct connection for sound to travel via the joists as the wall/ceiling is disconnected. Secondly, the wall and ceiling are given resiliency (flexibility), thus greatly reducing vibration (similar to shock springs on a car).

Product Specs:

 For a printable version of Product Specs for TMS Silent Clips-A72R, please visit.

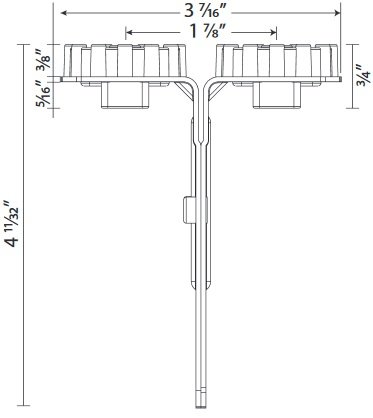

TMS Value Clips A72R Dimensions

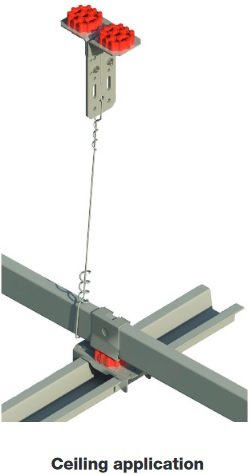

Sample Application:

Sample Applications
