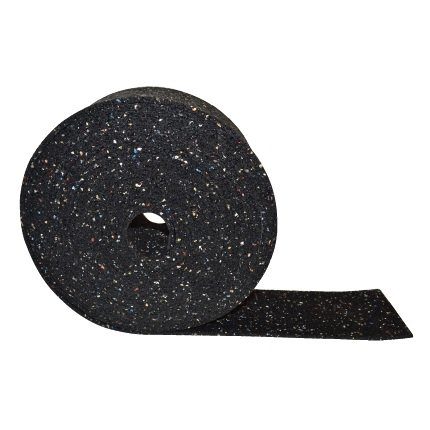

Resilmat - RMI is a recycled rubber wall underlayment that provides a continuous resilient support under floor and ceiling sill plates. Can be used with a wide range of loadings to contribute up to 9 LEED credits. Available in a choice of 5mm and 10mm thicknesses.
SOLD PER ROLL
Resilmat - RMI is used to prevent structure borne noise from transmitting through the wall into the areas above and below the partition. Applied to sill plates, it reduces the transfer of sound and vibration in floors and ceiling.
Product Options:
| SKU | Height | Width | Length |
| RMI-305R | 5mm | 3 1/4" | 30' |
| RMI-310R | 10mm | 3 1/4" | 15' |
| RMI-505R | 5mm | 5 1/4" | 30' |
| RMI-510R | 10mm | 5 1/4" | 15' |
Applications: Permanently resilient gasket that decouples wall assemblies from the building structure to reduce the transfer of sound and vibration. Can be used for a wide range of load ratings (1-50 psi).
Materials: Manufactured from recycled rubber and formulated with high damping acrylic polymers making it a "green" product for LEED projects.
Thickness: Available in a choice of 5mm and 10 mm thick.
Acoustical Properties: Prevents acoustic flanking. Yields exceptional results even under hard surface flooring, over concrete and wood joist construction.
LEED Credits: Can add up to 9 LEED points.

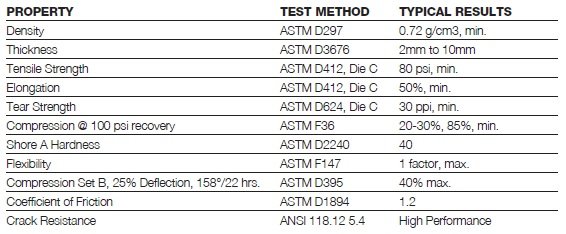

Testing:
Installation: Fast and easy installation. Can be installed with mechanical fasteners, polyurethane based construction adhesives or a variety of thin-sets and mortars. Easily cut to length with a utility knife. See Installation Tab below for additional information.
This product qualifies for FREE SHIPPING! See Shipping and Returns Tab above for additional information.
Click here to view more of our quality Floor Soundproofing products.
Click to print Resilmat - RMI Sound Isolation Underlayment Installation Instructions.
Step 1: Select the correct width and thickness. Review specifications section for different selections.
Step 2: Laydown the desired Resilmat- RMI where the plate will be installed and cut to length with a razor.
Step 3: Place the plate over the Resilmat - RMI and drill holes up to 3/4" in diameter, every 16" to 24" (Consult local code) whether it is wood or metal track.
Step 4: Insert the fastener through the hole in the center of the W20R Washer and then fasten the plate to the floor.
