TMS Value Clip Resilmount A237 Direct Fix Furring Channel Mount

  • Low cost option for basic sound reduction projects
  • Mechanically decouples ceilings/floors and walls from the building structure.
  • Creates an air pocket between walls for wiring and insulation.
  • Priced per piece
  • Minimum order amount: 50 clips

24 Hour Shipping!

FREE SHIPPING applies for orders over $75!  See Shipping and Returns tab below for additional information.

Price: $1.89
Qty
Save to wishlist
Note: you must order at least 50 items
Made in USA
Fast turnaround
SKU RES-A237
Quantity Price
1000+ Items $1.69
*Note:
Description

How It Works:

TMS Value Silent Sound Clips - A237 are sound isolation clips used to mechanically separate the connection points between drywall and the ceiling/wall structure.  It creates an opportunity for drywall furring channel to be introduced in the building framing structure.  When used with standard furring channel, A237 clips can be used to extend space between walls to allow for running pipes , electrical wires and/or insulation between the walls.

A237 Brackets are a cheaper option over A237R as there is no rubber isolation insert.  They are a budget-friendly isolation clip that is ideal for projects where sound isolation is not critical but physical separation of the wall from the studs is necessary.  They have been acoustically tested in wall systems and add assurance that your projects acoustical performance will improve substantially.

For a higher STC rating, see our TMS Silent Clips - A237R

Can be used in conjunction with 7/8" or 1 1/2" furring channel for effective noise control.  Installation is easy, simply replace standard fasteners with TMS Silent Brackets.  Brackets have a 1/4" hole to fit a variety of fasteners.

Features:

  • Simple design; adaptable to hundreds of applications.
  • Consistent and reliable quality; manufactured under ISO9001 quality control system.
  • Can be used to suit 7/8" and 1 1/2" furring channels.
  • A237 clips are provided with a 1/4" hole for a variety of fasteners

Applications:

  • Multi-family housing
  • Mixed use commercial buildings
  • Studios
  • Home Theatres

How Many To Order:

Clips can be spaced up to 48" apart with spacing of up to 24" between channels.  When using this spacing, divide the square footage of the area to be treated by 5.  That will give a rough estimate of the amount of clips needed.  In most cases you will need to compensate for being within 6" to walls/ceilings so we have found that calculating the squeare footage by 23% should get you close to the amount of clips needed.  See Installation Tab above for layout digram.

For detailed usage see our How To Soundproof article.

Need help planning your soundproofing project?  You can always call our office at 845-388-1200 with any installation questions that arise.  Feel confident when placing your order with Trademark Soundproofing, as we are always here to assist you with installation advice and tips.  We are the only soundproofing company that is constantly installing the products we sell, so we hae the answers!

Product Data

Printable Document:

For a printable version of Product Data for TMS Value Silent Clips -A237, please visit.

A237 Clip Dimensions:

A237 Clip Specifications

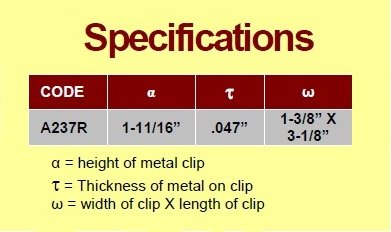

A237 Clip Specifications:

A237 Classifications

Classifications:

A237 Clip Specifications A237 Clip Classification

Installation Guide

Printable Documents:



Installation Guide for Resilient Mount Clips on Walls

Installation Guide for Resilient Mount Clips on Ceilings



General Installation Information for Walls and Ceilings:



Hat Channel Specifications

Recommended Fasteners for A237 Clip

Furring Channel Specifications:

  • Minimum- 25 Gauge with hemmed edge
  • Depth- 7/8" or 1-1/2"
  • Width at top- 1-1/4"
  • Width at bottom- 2-1/2"

*When splicing hat channel, overlap 6 inches in between two Resilmount clips. Secure the channel with two 7/16" framing screws or 18 Gauge tie wire can be used.

*Available at your local building supply stores

Fasteners:

Wood: #8 x 2-1/2" Coarse Threads

Steel: #8, #10 or #12 x 1-5/8" Self Tapping Type S

Concrete: 3/16" x 2-1/4" Anchor Screws

DO NOT fasten Resilmount clips to framing members with nails. Use only approved screws



Installation for Walls:



Installing Resilient Mount Clips

Resilient Clip Installation

Installation for Resilient Mount Clips

  • Clips shall not exceed 48" on center
  • Spacing between hat channels shall not exceed 24"
  • Fasten the clips to the substrate with a fastener approved for a minimum pull-out and shear of 120 Lbs.
  • Locate the bottom row of clips within 3" of the floor.
  • (May be adjusted lower to accommodate installation of baseboard.)
  • Hat Channels are installed horizontal to the floor.
  • Use a 4' level to ensure that clips and furring channels are installed horizontal and level.
  • Install the drywall vertically from the bottom up leaving a 1/4" thick gap around the perimeter of the wall
  • to be filled with acoustical caulk.  Caulk around the entire perimeter of the gypsum board.

Step 1:

Review layout guidelines before starting installation of walls or ceilings.  We suggest installing the ceiling first, before installing the walls.

Step 2:

Space Resilient Clips so as not to exceed 48" OC.  Secure clips with a single fastener through the middle screw hole in the clip (Fig 2.1).

Wood: Use #8 x 2-1/2" coarse thread screws

Steel: Use #8, #10 or #12 x 1-5/8 Type s Self tapping screws

Concrete: Use 3.16" x 2 1/4" Tapcon or equal anchor

Step 3:

Snap hat channel on clips (Fig 2.2)

Step 4:

The floor shims are critical to ensure best results.  Place 1/4" shims on floor in front of sole plate (Fig 3.1).  Install the first row of drywall vertically against the wall (Fig. 3.2).  Attach drywall to channel following local building codes.

Note: only remove the shims after all the gypsum board is completely screwed to all furring channels.

Step 5:

Use acoustical caulk around the entire perimeter of each wall (See Figure 3.3)



Installation for Ceilings:


Decoupling Walls and Ceilings with Hat Channels
  • Clips shall not exceed 48" on center.
  • Spacing between hat channels shall not exceed 24"
  • Fasten clips to the substrate with a fastener approved for a minimum pull-out and shear of 120 Lbs.
  • Locate the first row of clips within 6" of the wall and within 6" of the opposite wall.
  • Hat Channels are installed perpendicular to the joists.
  • Install the gypsum board leaving 1/4" thick gap around perimeter to be filled with acoustical caulk.
  • Caulk around the entire perimeter of the gypsum board.

Step 1:

Review layout guidelines before starting installation of walls or ceilings. We suggest installing the ceiling first, before installing the walls.

Step 2:

Space Resilient Mount Clips so as not to exceed 48" OC. Secure clips with a single fastener through the middle screw hole in the clip (Fig 2.1).

Wood: Use #8, #10, or #12 x 1-5/8" Type s Self tapping screws

Concrete: Use 3/16" x 2-1/4" Tapcon or equal anchor

Step 3:

Snap hat channel onto clips. (Fig 2.2)



Optimal Layout:



For a printable version of Optimal Layout for Resilmount Clips, please visit.


Layout for Studs with A237 Clips
Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product ships within one business day.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Returns:
    • Product may be returned up to 60 days if in brand new condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Send to friend
: *
: *
: *

Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
pros
  • Very easy to install and work with. (1)
cons
  • None (1)
best uses
  • Home Studio (1)
  • Professional Recording (1)

Reviewed by 1 customers

Displaying reviews 1-1

By Db

from Cleveland OH

Verified buyer
5.0
Resilient Sound Isolation Value Clips
12/18/17
pros
  • Very easy to install and work with.
cons
  • None
best uses
  • Home Studio
  • Professional Recording
Comments about Resilmount A237 - Resilient Sound Isolation Value Clip :
Precisely as advertised
Bottom Line Yes, I would recommend this to a friend
Displaying reviews 1-1
Recently Viewed
Q&A

Customers Questions and Answers

1) ethan: when the clips and the HAT channel are combined what is the height?

Trademark Soundproofing Reply: 1-3/8"

2) Jay K: Hello, I'm in the process of building a theater room. I want to use clips and channel for the ceiling. The ceiling will be 23 x 29. I believe that means I should order 154 clips and 47 hat channels. Is that correct?

Trademark Soundproofing Reply: Yes that is correct.

3) Lucas: What is the STC rating of these value clips when installed on a wood joist ceiling with the 7/8" Hat channel, then one layer of gypsum drywall? Do the whisper clips or the A237R clips have a significantly better STC value in this residential setting?

Trademark Soundproofing Reply: It is actually pretty good and based on similar clips testing. The other will perform at about 2-4 STC points better.
