How To Choose An Acoustic Fabric

Acoustic Fabrics play an important functional and aesthetic role on an interior environment.  The Guilford of Maine fabric line offers a wide array of designs with variations of contents, weight, repeat, breaking strength, tear resistance, NRC rating and directional vs. non-directional.  Click on the product name for further information and pricing.

Below is a description of common terms you will need to know when choosing an acoustic fabric:

  • Repeat- The length between the starting point and ending point of a pattern.
  • Breaking Strength- The minimum tensile strength needed to tear the fabric apart.
  • Tear Resistance- The capacity of a fabric to withstand the tearing force required to propogate a tear after its initiation.
  • NRC rating- How much sound the fabric reflects into the absorptive material backing it.  The NRC rating of a fabric is determined by placing an anechoic termination behind the fabric and measuring how much sound can penetrate the fabric and reach the anechoic termination.

Don't see what you are looking for?  Contact us or call us at 845.388.1200 and one of our professional associates will be happy to assist you.

Image/
Name

Contents

Weight

NRC

Design

Breaking Strength
(ASTM D5034

Tear
(D2261)

Anchorage

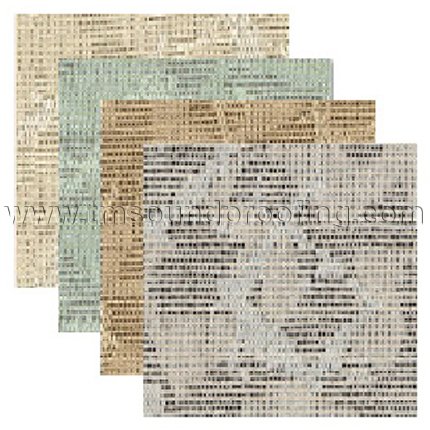

Guilford of Maine Anchorage Fabrics, www.TMsoundproofing.com

35% post-consumer

65% pre-consumer
   recycled Polyester

15.0 +/-1 lin. yd.

.85

Directional

No Repeat

275 lbf. min. warp
and fill

35 lbf.
min. warp
and fill

Auster

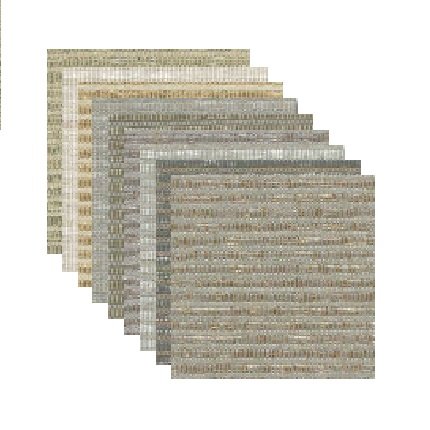

Guilford of Maine- Auster, www.TMsoundproofing.com

 •29% post-consumer

 •71% pre-consumer
   recycled Polyester

11.4 +/-1 lin. yd.

.90

Directional

16" vertical
13.9"horizontal

200 lbf. min.warp

40 lbf.
min.fill

20 lbf.
min. warp
and fill

FR701-2100

Guilford of Maine FR701-2100 , www.tmsoundproofing.com

100% post-consumer
  recycled Polyester

16.0 +/-0.5 oz. lin. yd.

.95

Non-       Directional

 •No Repeat

150 lbf.
min.
warp
and fill

  30 lbf.
min. warp
  and fill

Axiom
Axiom - Acoustic Fabric, www.TMsoundproofing.com

100% recycled      Polyester 12.0 +/- 1.0 oz. lin. yd. .95

Directional

No Repeat

150 lbf min. warp

175 lbf min fill


35 lbf
min.warp

50 lbf       min fill

Bailey

Guilford of Maine-Bailey,www.TMsoundproofing.com

100% recycled  Polyester

8.3 +/- 0.5 oz. lin. yd.  .95

•Directional

•No Repeat



150 lbf min. warp

100 lbf min fill

  15 lbf.
min. warp
  and fill

Basketweave

Basketweave, www.TMsoundproofing.com

100% post-consumer
recycled Polyester

19.5 +/- 1 oz. lin. yd.  .95

 Non-    Directional

•No Repeat

175 lbf min. warp and fill

  45 lbf
min. warp   and fill

    BeeHave

BeeHave - Acoustic Fabric

  • 35% post-consumer recycled Polyester

  • 65% pre-consumer recycled Polyester

12.1 +/- 1.0 oz. lin. yd.  .95

  •Directional


  •1.1" vertical      .75"horizontal

250 lbf min. warp and 175 lbf min. fill

25 lbf min. warp

20 lbf min. fill

Belgrade
Belgrade - Acoustic Fabric, www.TMsoundproofing.com

 •95% post-consumer
recycled Polyester

•5% pre-consumer
recycled Polyester

18.5 +/- 1 oz. lin. yd.

.95



•Directional

•No Repeat

 175 lbf min.  warp and fill

 50 lbf
min. warp  and fill

     Broadcast

Broadcast - Acoustic Fabric

100% Polyester  9.5 +/- 0.5 oz. lin. yd. .95
  •Directional

 150 lbf. min. warp

100 lbf. min. fill

15 lbf min. warp

10 lbf min. fill

     Candid

Candid - Acoustic Fabric

     •56% Recycled              Polyester

     •44%                           Polypropylene

11.8 +/- 1   oz. lin. yd.  1.00

   •Directional

   •No Repeat


175 lbf. min.  warp and fill

  45 lbf.  min.warp
  and fill
Cape Cod
Crosstown Acoustic Fabric, www.TMsoundproofing.com

 •24% post- consumer recycled Polyester

76% pre-consumer
recycled Polyester

12.4 +/- 1 lin. yd. .95

 •Directional

 •No Repeat

 150 lbf. min.  warp and fill

  30 lbf.  min.warp

and fill

   Coastline

Coastline - Acoustic Fabric, www.TMsoundproofing.com

 •34% post-consumer
  recycled Polyester

 •66% pre-consumer
  recycled Polyester

12.2 +/- 1.0 oz. lin. yd.

.90

Directional

16" vertical
16.6" horizontal

 220 lbf. min. warp

100 lbf. min. fill

25 lbf. min. warp

18 lbf. min. fill

Cosmos

Cosmos - Acoustic Fabric, www.TradeMarksoundproofing.com

 100% post-consumer recycled Polyester

12.0 +/- 0.5 oz. lin. yd.

 .90

•Directional

•12.5" vertical
16.3" horizontal

   250 lbf. min. warp

175 lbf. min. fill

25 lbf.
min. warp
and fill

Crosstown

Crosstown - Acoustic Fabric, www.TMsoundproofing.com



•23% post-consumer recycled Polyester

•77% pre-consumer
recycled Polyester

13.6 +/- 1.0 oz. lin. yd.

 .95



•Directional

•12.5" vertical
16.3" horizontal

250 lbf. min. warp

175 lbf. min. fill



35 lbf. min. warp

25 lbf. min. fill

       Digit

Digit - Acoustic Fabric



 •14% post-consumer
  recycled Polyester

 •86% pre-consumer
  recycled Polyester

12.1 +/- 1.0 oz. lin. yd.
.95



   •Directional

   •6.1" vertical
    8.2" horizontal

   200 lbf. min.        warp

   100lbf. min. fill

30 lbf.
min. warp
and fill

Drift

Drift- Acoustic Fabric, www.TradeMarksoundproofing.com

•51% post-consumer recycled Polyester

•49% pre-consumer
recycled Polyester

12.0 +/- 1.0 oz. lin. yd. .90

•Directional

•9.6" vertical
14" horizontal

250 lbf. min. warp

125 lbf. min. fill

15 lbf.
min. warp
and fill

Framework

Framework Acoustic Fabric, www.TMsoundproofing.com

100% Polyester  9.5 +/- 0.5 oz. lin. yd.  .90

•Directional

•No Repeat

150 lbf. min. warp

125 lbf. min. fill

15 lbf. min. warp

10 lbf. min. fill

     Groove

Guilford of Maine Groove Acoustic Fabric, www.TMsoundproofing.com

100% post-consumer
 recycled Polyester

15.0 +/-1 lin. yd.

 .90



•Directional

•20" vertical
16.75" horizontal



 225 lbf. min. warp

180 lbf. min. fill

  20 lbf.
min. warp
  and fill

    Hatchet

Hatchet - Acoustic Fabric

•14% post-consumer recycled Polyester

•86% pre-consumer
recycled Polyester

12.1 +/- lin. yd.  .95



  •Directional

  •11" vertical
  16.4"                  horizontal





200 lbf. min. warp

150 lbf. min. fill

  25 lbf.
min. warp
  and fill

   Hopscotch

Guilford of Maine Hopscotch Acoustic Fabric, www.TMsoundproofing.com

•60% post-consumer recycled Polyester

•40% pre-consumer
recycled Polyester

11.4 +/-1 lin. yd.  .95      •Directional

 •No Repeat

125 lbf min.  warp and fill 20 lbf.
min. warp
  and fill

       Lido

Guilford of Maine Lido Acoustic Fabric, www.Trademarksoundproofing.com

•48% post-consumer recycled Polyester

•52% pre-consumer
recycled Polyester

11.5 +/-1 lin. yd.

.95

•Directional

•No Repeat

100 lbf. min. warp

125 lbf. min. fill

25 lbf.min. warp  and fill

    Lily Pad

Guilford of Maine Lily Pad Acoustic Fabric, www.TradeMarksoundproofing.com



•48% post-consumer recycled Polyester

•52% pre-consumer
recycled Polyester

 12.3 +/- 1.0 oz. lin. yd.  .95

•Directional

•16.7" vertical
13.2" horizontal



260 lbf. min. warp

120 lbf. min. fill



40 lbf. min. warp

30 lbf. min. fill

    Meander

Guilford of Maine Meander Acoustic Fabric, www.TMsoundproofing.com



•28% post-consumer recycled Polyester

•72% pre-consumer
recycled Polyester

11.6 +/-0.5 oz. lin. yd.   .95

•Directional

•10.5" vertical
16.2" horizontal



225 lbf. min. warp

100 lbf. min. fill



25 lbf. min. warp

15 lbf. min. fill

  Metallation

Guilford of Maine Metallation Acoustic Fabric, www.TMsoundproofing.com



•56% post-consumer recycled Polyester

•44% pre-consumer
recycled Polyester

15.2 +/-0.5 oz. lin. yd.   .95

•Directional

•No Repeat

  150 lbf. min.  warp and fill    30 lbf.  min.warp
  and fill

      Metro

Guilford of Maine Metro Acoustic Fabric, www.Trademarksoundproofing.com



11% post-consumer recycled Polyester


89% pre-consumer
recycled Polyester

10.7 +/- 1.0 oz. lin. yd. .95



•Directional

•8.57" vertical
14.12" horizontal



250 lbf. min. warp

150 lbf. min. fill



 30 lbf.  min.warp
  and fill

     Mingle

Guilford of Maine Mingle Acoustic Fabric, www.TMsoundproofing.com



•23% post-consumer recycled Polyester

•77% pre-consumer
recycled Polyester

 10.9 +/- 1.0 oz. lin. yd. .90

•Directional

•16.7" vertical
16.2" horizontal



250 lbf. min. warp

100 lbf. min. fill



25 lbf. min. warp

15 lbf. min. fill

    Network

Guilford of Maine Network Acoustic Fabric, www.TMsoundproofing.com

 100% post-consumer
 recycled Polyester
 11.0 +/- 1.0 oz. lin. yd.  .95

•Directional

•11.875" vertical
8.25" horizontal



190 lbf. min. warp

95 lbf. min. fill



15 lbf. min. warp

10 lbf. min. fill

       Nitro

Guilford of Maine Nitro Acoustic Fabric, www.TMsoundproofing.com

 100% post-consumer
 recycled Polyester
12.3 +/- 1.0 oz. lin. yd.    .90

•Directional

•16.7" vertical
9.1" horizontal



220 lbf. min. warp

130 lbf. min. fill

  12 lbf.  min.warp
  and fill
Otto
Guilford of Maine Otto, www.Trademarksoundproofing.com

•31% post-consumer recycled Polyester

•34% pre-consumer recycled Polyester

•35% Polypropylene

13.5 +/-0.5 oz. lin. yd. .85

•Directional

•No Repeat



200 lbf. min. warp

175 lbf. min. fill

 40 lbf.  min.warp
  and fill

   Parameter

Guilford of Maine Parameter Acoustic Fabric, www.Trademarksoundproofing.com

•18% post-consumer recycled Polyester

•82% pre-consumer
recycled Polyester

10.0 +/- 1.0 oz. lin. yd.  .95

•Directional

•.35" vertical
  .2" horizontal

 175 lbf. min.  warp and fill

20 lbf. min. warp

25 lbf. min. fill

    Phone Tag

Guilford of Maine Phone Tag Acoustic Fabric, www.TMsoundproofing.com



•79% post-consumer recycled Polyester

•21% pre-consumer
recycled Polyester

 14.0 +/- 1.0 oz. lin. yd.   .95

•Directional

•No Repeat



150 lbf. min. warp

110 lbf. min. fill

   25 lbf.  min.warp
  and fill

      Rattan

Guilford of Maine Rattan Acoustic Fabric, www.Trademarksoundproofing.com



•34% post-consumer recycled Polyester

•66% pre-consumer
recycled Polyester

14.7 +/-0.5 oz. lin. yd.    .90

•Directional

•17.7" vertical
13.9" horizontal



225 lbf. min. warp

200 lbf. min. fill

  35 lbf.  min.warp
  and fill

      Reeds

Guilford of Maine Reeds Acoustic Fabric, www.Trademarksoundproofing.com



•74% post-consumer recycled Polyester

•26% pre-consumer
recycled Polyester

 11.6 +/- 1.0 oz. lin. yd.   .95

•Directional

•12.5" vertical
16.9" horizontal



250 lbf. min. warp

150 lbf. min. fill

    20 lbf.  min.warp
  and fill

Sand

Guilford of Maine Sand Acoustic Fabric, www.TMsoundproofing.com

100% post-consumer
 recycled Polyester
16.0 +/- 0.5 oz./lin. yd. .90

•Directional

•No Repeat

250 lbf. min. warp

150 lbf. min. fill



20 lbf. min. warp

30 lbf. min. fill



Sensa

Guilford of Maine Sensa Acoustic Fabric, www.Trademarksoundproofing.com



•51% post-consumer recycled Polyester

•49% pre-consumer
recycled Polyester

13.0 +/- 1.0 oz./lin. yd.   .95

•Directional

•No Repeat



200 lbf. min. warp

150 lbf. min. fill

   20 lbf.  min.warp
  and fill

Snapshot

Guilford of Maine Snapshot Acoustic Fabric, www.TMsoundproofing.com

100% post-consumer
 recycled Polyester
11.3 +/- 1.0 oz. lin. yd. .90

•Directional

•29" vertical
16.75" horizontal

225 lbf. min. warp

200 lbf. min. fill

  10 lbf.  min.warp
  and fill

Spinel

Guilford of Maine Spinel Acoustic Fabric, www.TMsoundproofing.com



•32% post-consumer recycled Polyester

•68% pre-consumer
recycled Polyester

11.8 +/- 1.0 oz. lin. yd.  .95

•Directional

•16.5" vertical
16.5" horizontal



220 lbf. min. warp

90 lbf. min. fill

   18 lbf.  min.warp
  and fill

Sprite

Guilford of Maine Sprite Acoustic Fabric, www.TMsounproofing.com



•5% post-consumer recycled Polyester

•95% pre-consumer
recycled Polyester

•Pre-treated with Polyester Binder

 10.8 +/- 0.5 oz./lin. yd. .95

•Directional

•.83" vertical
 .26" horizontal

   175 lbf. min. warp and        fill

35 lbf. min. warp

25 lbf. min. fill

Strata

Guilford of Maine Strata Acoustic Fabric, www.Trademarksoundproofing.com

 100% post-consumer
 recycled Polyester
11.8 +/- 1.0 oz. lin. yd.  .95

•Directional

•.1" vertical
  none
horizontal



200 lbf. min. warp

100 lbf. min. fill

   20 lbf.  min.warp
  and fill

Streetwise

Guilford of Maine Streetwise Acoustic Fabric, www.TMsoundproofing.com



•22% post-consumer recycled Polyester

•78% pre-consumer
recycled Polyester

 13.0+/-1.0
 oz./lin.yd.

.95

•Directional

•No Repeat



220 lbf. min. warp

180 lbf. min. fill



30 lbf. min. warp

25 lbf. min. fill

Studio 54

Guilford of Maine Studio 54, www.TMsoundproofing.com

•100% Polypropylene

•Pre-treated with Polyester Binder

 12.8 +/- 1.0 oz. lin. yd. .95

•Directional

•.1" vertical
  none
horizontal



100 lbf. min. warp

250 lbf. min. fill



25 lbf. min. warp

55 lbf. min. fill

Tempest

Guilford of Maine Tempest Acoustic Fabric, www.Trademarksoundproofing.com

•27% post-consumer recycled Polyester

•73% pre-consumer
recycled Polyester

11.3 +/- 1.0 oz. lin. yd. .95

•Directional

•No Repeat

180 lbf. min. warp

160 lbf. min. fill

  15 lbf.  min.warp
  and fill

Theory

Theory Acoustic Fabric

         100%
recycled Polyester

 10.8 +/- 1.0 oz. lin. yd. 1.00

  •Directional

  •No Repeat



  175 lbf.
  min. warp

  150 lbf.   min. fill

  35 lbf.  min.warp
  and fill

Vortex

Guilford of Maine Vortex Acoustic Fabric, www.Trademarksoundproofing.com

100%
  recycled Polyester
 11.2 +/- 1.0 oz. lin. yd. .90

•Directional

•.3" vertical
 .2" horizontal



150 lbf. min. warp

200 lbf. min. fill

   20 lbf.  min.warp
  and fill

Woodland

Woodland Main Image, www.Trademarksoundproofing.com

100% post-consumer
 recycled Polyester
12.5 +/- 1.0 oz. lin. yd. .85

•Directional

•11.4" vertical
16.3" horizontal

 225 lbf.
min. warp
and fill

10 lbf.  min.warp
  and fill

Customers Questions and Answers
