200 lb. - Cam Lift Hinge

200 lb. - Cam Lift Hinge

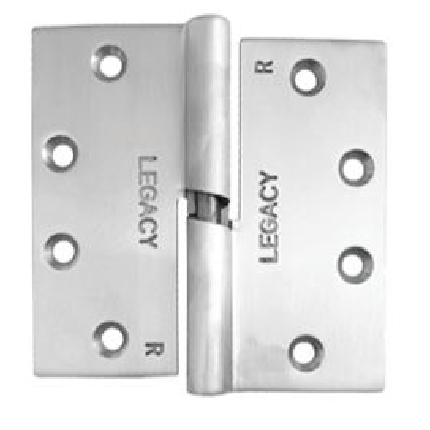

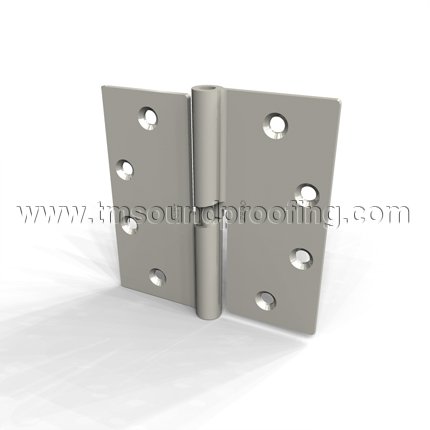

4.5" x 4.5" Stainless Steel Cam Lift Mortised Hinge - for doors weighing up to 200 lbs.


Ships Free. Special Discounts apply to orders over $500.00! See Product Descriptions for details.

Price: $104.40
Swing Direction
Save to wishlist
Note: you must order at least 2 items
Made in USA

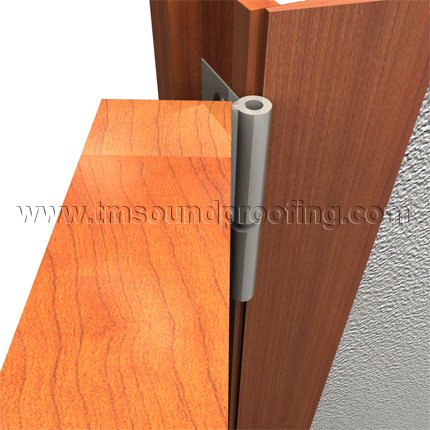

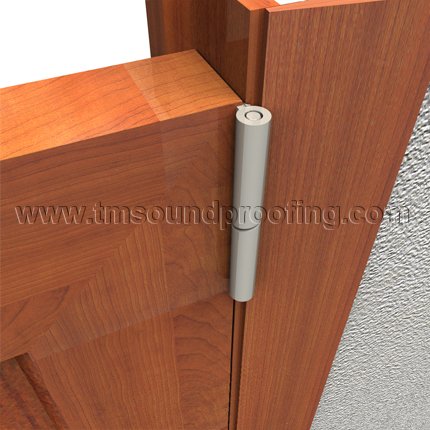

Cam Lift Hinges greatly improve sealing characteristics along the door perimeter by raising and lowering the door with the swing. When closed, the door drops to create a tight seal. This Stainless Steel Cam Hinge is compatible for use with EMI/RFI and sound insulating doors utilizing acoustical seals and for doors weighing up to 200 lbs.

The CAM LIFT Hinge is available for right or left-hand swinging doors. CAM LIFT Hinges will not bind door closures when doors are hung within accepted industry standards (Tested with LCN 4041 Series original).

Product Specifications: (see Product Data Tab for more information)

  • Base Metal: 1020 Stainless Steel, precision investment cast
  • Finish: 629 (US32)

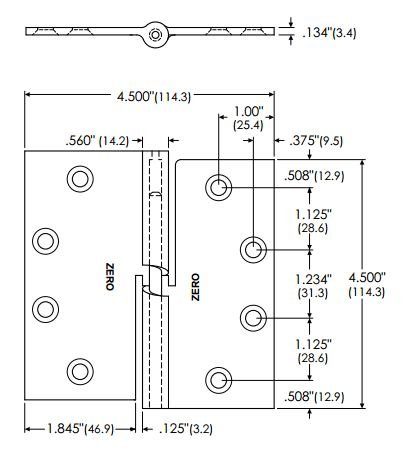

  • Size: 4.5" (114.3mm) X 4.5" (114.3mm) X .134" (3.4mm)
  • Gauge: .134" (3.4mm)
  • Swing: Maximum lift 3/16" over 180°.
  • Door Clearance: Minimum clearance at head of frame is 3/16". For doors greater than 1-3/4" clearance is 1/4”
  • Pin: Hardened tool steel. Hardened & chrome finished to Rockwell C 60 to meet ASME/ANSI B 18.3 specs.
  • Screw Size: 12-24 x 3/4” UC for metal doors (Installation screws provided)
  • Door Weight: Up to 200 lb. for 1-1/2 pairs (3 Hinges)

Before you buy:

This product is priced per hinge and has a 2 hinge minimum purchase. For full 200 lb. weight capacity, use 1-1/2 pairs of hinges (3 hinges). Hinge is handed, please select required handing from options above.

For doors of greater weights, try our 300 lb. Cam Lift Hinge or our Super Heavy Duty Hinge for doors up to 900 lbs.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product qualifies for FREE SHIPPING, see Shipping and Returns Information Tab to the right.

Special Discounts on Our Door Hardware:

No Coupon Code Needed. Discount automatically applied when added to shopping cart.

Spend $500.00, get 5% off plus free shipping
Spend $1000.00, get 10% off plus free shipping

See our Monthy Specials and Discounts for more great Soundproofing Savings!

Shipping & Returns

Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Please allow 10-14 business days to ship.
    • FREE SHIPPING on orders over $75.00. There will be a flat $14.99 shipping and handling fee on orders under $75.00. - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.
  • Returns:
    • We accept returns with prior authorization, up to 60 days after purchase with a 25% restocking fee.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. Please ship to: TMS, 750 Chestnut Ridge Road, Unit 308 Chestnut Ridge, NY 10977.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
