900 lb. - Super Duty Cam Lift Hinge

900 lb. - Super Duty Cam Lift Hinge
0.0

4.5" x 5" Super Heavy Duty, Stainless Steel Cam Lift Mortised Hinge - for doors heavy doors with frequent usage - up to 900 lbs.

PRICED PER HINGE

Ships Free. Special Discounts apply to orders over $500.00! See Product Descriptions for details.

Price: $217.61
Swing Direction
Qty
Save to wishlist
Note: you must order at least 2 items
SKU DSZ9500
Description

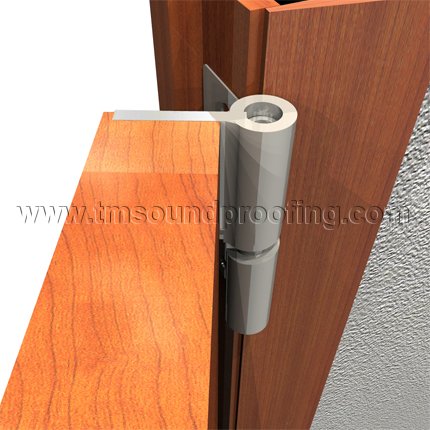

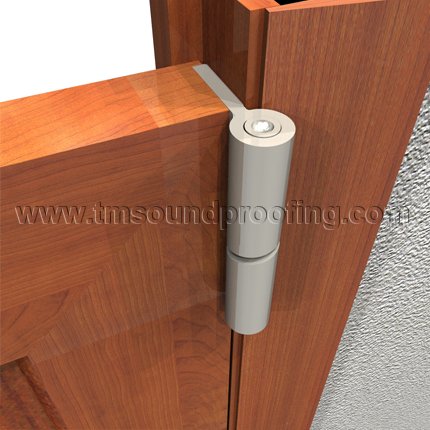

Cam Lift Hinges greatly improve sealing characteristics along the door perimeter by raising and lowering the door with the swing. When closed, the door drops to create a tight seal. This Stainless Steel Cam Hinge is compatible for use with EMI/RFI and sound insulating doors utilizing acoustical seals.

Designed for heavy doors weighing up to 900 lbs and doors with high level of traffic abuse.

The CAM LIFT Hinge is available for right or left-hand swinging doors. CAM LIFT Hinges will not bind door closures when doors are hung within accepted industry standards (Tested with LCN 4041 Series original).

Product Specifications: (see Product Data Tab for more information)

  • Base Metal: 1020 Stainless Steel, precision investment cast
  • Finish: 629 (US32)
  • Size: 4.5" (114.3mm) X 5.0" (127mm) X .250" (6.4mm)
  • Gauge: .250" (6.4mm)
  • Swing: Maximum lift 5/16" over 180°.
  • Door Clearance: Minimum clearance at head of frame is 3/16". For doors greater than 1-3/4" clearance is 1/4”
  • Pin: 1/2" Diameter Hardened tool steel. Hardened & chrome finished to Rockwell C 60 to meet ASME/ANSI B 18.3 specs.
  • Screw Size: 5/16-18 x 3/4” for metal doors (Installation screws provided) Screws must be engaged no less than .350” in ASTM A-36 steel reinforcement
  • Door Weight: Up to 900 lb. with 1-1/2 pairs (3 Hinges)

Before you buy:

This product is priced per hinge and has a 2 hinge minimum purchase. For full 900 lb. weight capacity, use 1-1/2 pairs of hinges (3 hinges). Hinge is handed; please select required handing from options above.

For doors of lower weight or less frequent usage, try our 500 lb. Heavy Duty Cam Lift Hinge.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product qualifies for free shipping, see information under Shipping and Returns.

Special Discounts on Our Door Hardware:

No Coupon Code Needed. Discount automatically applied when added to shopping cart.

Spend $500.00, get 5% off plus free shipping
Spend $1000.00, get 10% off plus free shipping

See our Monthy Specials and Discounts for more great Soundproofing Savings!

Product Data

Click to Print Product Specs

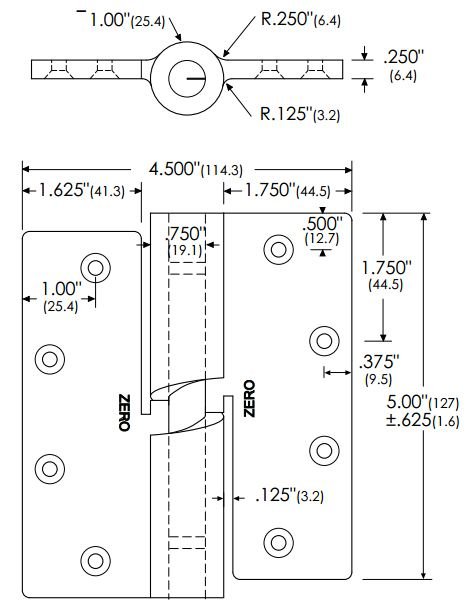

Product Specs for Super Duty Cam Lift Hinge

(Left Handed Shown)
