Light and Speaker Covers are designed to stop air and sound leakage through recessed fixtures. They are UL tested and approved for use with IC-rated recessed incandescent, fluorescent or LED light fixtures as well as all recessed speaker systems.
Light and Speaker Covers are designed to stop air and sound leakage through recessed fixtures. They are UL tested and approved for use with IC-rated recessed incandescent, fluorescent or LED light fixtures as well as all recessed speaker systems.

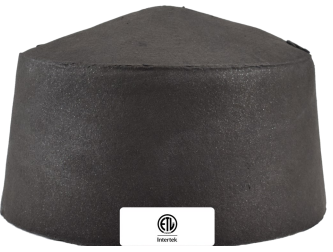

FF109-350 Fire-Rated Light and Speaker Covers
Printable Documents: |
Click to print Product Data for Tenmat 109-350 Light and Speaker Cover.
Click to print Tenmat FF109-350 Light Cover UL USA Certification.
Dimensions: |

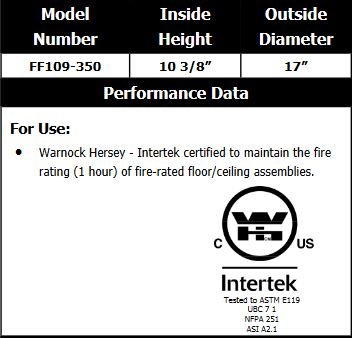

Specifications: |
Printable Documents: |
Click to print Tenmat FF109-350 Light Cover Installation Instructions. |

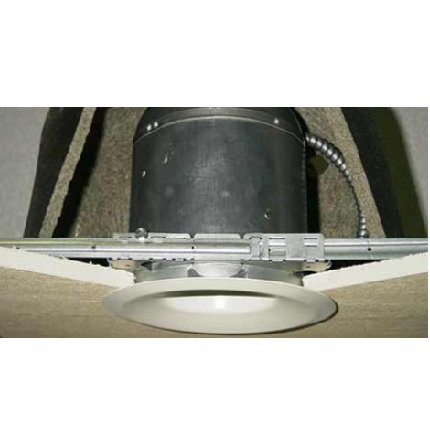

Step 1: |
Hanger bars of the light fixture shall be screwed to the joists in addition to the tabs being hammered into the joists, following the light manufacturer's installation instruction. |
Step 2: |
Place Tenmat FF109 cover over the fixture. Slit the cover to fit over the hanger bars of the fixture. Cut four slits with a size up to 1" max. |
Step 3: |
The wire can be fed through one of the cover vent holes located at the top. Follow the light manufacturer instructions to make proper connections. |
Step 4: |
Put the cover on top of the fixture. Check for secure fit and make sure the cover overhangs the hanger bars. The FF 109 Light Cover must fit flush with the back surface of the drywall board. |
