TM Soundproofing Acoustic Products Fabric Panels Fabric Acoustic Wall Panel
Fabric Acoustic Wall Panel
Click on arrows to scroll through images
Click on image to enlarge

Fabric Acoustic Wall Panel

0.0

Choose from a variety of colors and textures to complement your decor’, while improving sound clarity and speech communication.  Our Fabric Acoustic Wall Panels are a multi-purpose absorber designed to deliver the ultimate performance with excellent NRC ratings.

  • Wide range of colors, sizes and thicknesses for maximum sound absorption and aesthetics.
  • 6-7# PCF rigid fiberglass absorber core.
  • Excellent NRC ratings from .50-1.15.
  • Impaling clips included for quick and easy installation.

FREE SHIPPING!  See Shipping and Returns tab below.

PRICED PER PIECE, MINIMUM ORDER AMOUNT OF 4 PANELS.

Price: $87.89
SKUS-2000,24",1",AMETHYST1
Made in USA
Color:
Dimensions:
Thickness:
Chemically Hardened Edges:
Edge Design:
Quantity:

Note: you must order at least 4 items

Fabric Acoustic Wall Panels serve as a multi-purpose absorber capable of reducing reverberation time and noise buildup within a room.  With superb NRC ratings they can improve a rooms acoustics, creating a more productive and comfortable environment while enhancing the decor’.

Standard panels are made with a 6-7# PCF rigid fiberglass absorber core.  Edges are hard and are available with 4 edge profiles (see Product Data guide for images of edge profiles.) Standard panels are covered in fabrics from the Guilford of Maine FR701-2100 fabric line but can be custom ordered with a fabric of your choice which passes our approval (see our Fabric Selection Guide for additional information on choosing a fabric.)

For additional fabric panels with added durability, see our High-Impact Fabric Acoustic Panels.

Features:

  • High-Quality Acoustic Panels with 6-7# PCF rigid fiberglass absorber core.
  • Can be covered with Guilford of Maine FR701-2100, C.F. Stinson fabrics or a fabric of your choice. (See Fabric Selection Guide for additional information.)
  • Available in three standard thicknesses; 1/2", 1", 2" or custom thickness by request.
  • Excellent NRC ratings from .50-1.15
  • Comes with Impaling Clips for easy and convenient installation.

Applications:

  • Schools
  • Universities
  • Offices
  • Airports
  • Churches
  • Restaurants
  • Studios
  • Theatres
  • Any area with excess reverberation

How To Order:

Choose from our convenient sizing options of 24"x24" and 24"x48" and thickness options of 1/2", 1", and 2".  Choose from our extensive Guilford of Maine Color options which are proven to be both acoustically sound and aesthetically pleasing.  For additional fabric selections, please see our C.F. Stinson Color Chart in the Product Data tab.  In addition, custom fabrics may be used once the fabric passes approval in terms of durability and sound transmission.  Standard Panels have hard, straight edges but can be custom ordered with chemically hardened edges as well as with Mitre, Bevel, Radius edge options.  Please note, there is a minimum order amount of 4 panels when ordering through our website, for smaller orders please contact us for a price quote.  For all custom panel ordering, please contact us at 845-388-1200 and we will be happy to assist you.

Please note, images are for illustrative purposes only.  They are not actual photos.  Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product qualifies for FREE SHIPPING, see Shipping and Returns tab to the right for additional information.

For more high-quality soundproofing solutions, please see our selection of Acoustic Wall Panels

For a printable version of Product Data for Fabric Acoustic Wall Panels, please visit.

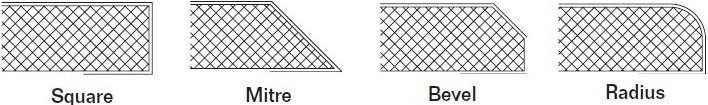

Edge Design Options-

Edge Design for Fabric Acoustic Wall Panels

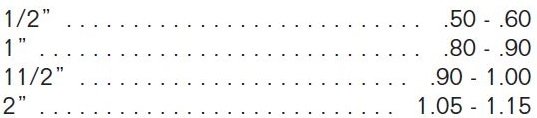

Acoustic Performance for Fabric Acoustic Wall Panel-

Fabric Wall Panel Acoustic Performance

Guilford of Maine Color Options-

For additional color options, see our C.F Stinson Color Chart.

Guilford of Maine Color Options

For a printable version of Installation Instructions for Fabric Acoustic Wall Panels, please visit.

Impaling hooks are the recommended installation method for all locations where panels do not need to be moved.  Impaling hooks are provided with each order of acoustic panels.

Before you begin:

  • Decide on panel layout; inspect mounting surfaces to determine suitability for installing panels.
  • Determine clip locations on the wall using a pencil and straight edge to ensure proper placement of clips.  Clips should be evenly spaced on the back of the panel.
  • Clips should be aligned to meet up with the fiberglass section of the panel past the point where the excess fabric ends.
  • For panels up to 24"X48", 6 impaling clips are recommended.  For larger panels, 6-8 clips are recommended.

Installation:

  • Drill screws into each impaling clip to firmly anchor the clips to the wall.
  • It is recommended that adhesive be used in conjunction with impaling clips to ensure secure attachment of the clips.
  • Apply adhesive to the wall surface as well as the back of the panel.
  • Firmly attach the panel to the wall pressing evenly to ensure complete adhesion.  You can use a clean piece of plywood to firmly distribute pressure on the clip.
  • DO NOT PULL PANEL AWAY FROM THE WALL AT THIS POINT AS THIS WILL BREAK THE BOND BEFORE THE GLUE HAS A CHANCE TO SET.

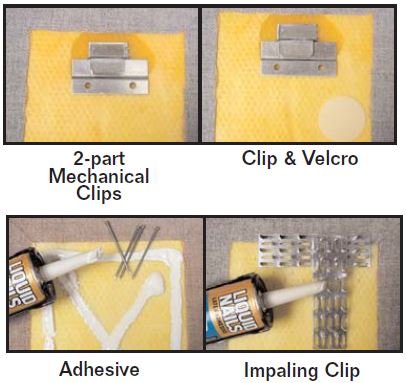

Mounting Options for Fabric Acoustic Wall Panels, www.TMsoundproofing.com


Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • As this product is custom made, please allow 2-3 weeks to ship.
    • FREE SHIPPING on this product - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.

  • Returns:
    • The panels are custom made and NOT eligible for returns.
: *
: *
: *

Send to friend

Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.

Not yet rated. Be the first to Write a Review

Customers Questions and Answers

1) Ron: Would your Fabric Acoustic Wall Panel help prevent Mic/Guitar amplifier 'feedback' in a 10' x 12' practice room?

Trademark Soundproofing Reply: Yes it is. That is what they are designed to do.

2) V: Hi, want to know if you can make custom sizes for the windows? Client wants to use only fabric and not the vinyl

Trademark Soundproofing Reply: Yes we can please give us a call at 845-388-1200
