TM Soundproofing Floor Soundproofing Premium Carpet Underlayment
Premium Carpet Underlayment
Click on arrows to scroll through images
Click on image to enlarge

Premium Carpet Underlayment

Our Premium Carpet Underlayment consists of a foam layer supporting an acoustic mass loaded vinyl barrier.  It is durable and effective at reducing the transmission loss of floor assemblies.

  • Product is 4.5' wide. Quantity = Length. E.g. if you choose "Quantity 12" you will receive a piece 4.5' wide by 12' long. (Note: On larger orders rolls will be cut to managable sizes e.g. 15' long per roll)

Free Shipping!  See Shipping and Returns Tab below for additional information.

Price: $20.57
SKUICP100
Made in USA
Size and Density :
Quantity:

Note: you must order at least 10 items

Premium Carpet Underlayment is durable and effective at reducing both impact noise (higher IIC) and airborne noise (STC).  Product is designed with a mass loaded (MLV) barrier bonded to a high-quality resilient acoustic foam padding.  Barrier layer has excellent damping and stiffness characteristics as well as durability and tear resistance providing optimal sound control at an economic price point.  The foam layer acts to decouple the mass layer from the floor vibrations, creating an effective noise barrier.

For our full lineup of Mass Loaded Vinyls (MLV) without foam attached, click here.

Carpet Underlayment is ideal for treating noise radiating from carpeted floors in residential, commercial and maritime applications.  With the ability to significantly reduce noise at frequencies as low as 250 Hz this product is highly effective at reducing speaking frequencies, home theater noise, mechanical equipment, boat engine noise and other noise sources found in living or working environments.

Installation:

Installing Premium Carpet Underlayment is quick and easy in new or existing applications without any specialty tools required.  Roll out the underlayment with the barrier side face up and fit the carpet directly on top.  In cases where a tack strip is used, stop the underlayment at the inside edge of the tack strip and tack the carpet in place.

Features:

  • Easy to use and install
  • Low cost solution for both noise transmission and privacy issues.
  • No need for additional carpet pad
  • Firm yet comfortable feel
  • Increases both IIC and STC ratings

Applications:

  • Reduces road noise in cars.
  • Can be used in all living areas of a boat to increase comfort and reduce engine noise.
  • Mechanical equipment
  • Homes
  • Offices
  • Meeting Areas
  • Theaters

How To Order:

Under thick and shag carpets, the 1/2" carpet underlayment is suggested for the best noise reduction.  Below firm carpeting such as indoor/outdoor or thin industrial grades, the 1/4" underlayment may be required in order to give the proper feel underfoot.  Product measures 4.5 feet, when figuring out total coverage, multiply the quantity by 4.5 feet.

This product qualifies for FREE SHIPPING.  See Shipping and Returns Tab above for additional information.

For more quality soundproofing ideas for floors and ceilings, see our Owens Corning Fiberglass Insulation.

For a printable version of Product Data for Carpet Underlayment, please visit.

Enhanced Noise Reduction due to Carpet Underlayment:

Comparison Chart for Carpet Underlayment

Physical Properties:

  Foam
  1/4" 1/2"
Thickness (nominal) 5/16" 1/2"
Compression set 7% max <10% max
Indentation Load Deflection (25%) 7.2lb/ft2 80 minimum
Indentation Load Deflection (65%) 37lb/ft2 N/A
Impact Isolation Class (IIC) 78 TBD
R factor (ASTM C 518) 1.1 3
Water Resistance (British spill test method E) Pass  N/A
  Barrier
  1lb. /sq. ft.  2 lb. /sq. ft.
Thickness 1/8" 1/4"
Weight (lb/ft2) 1 1
Specific Gravity ASTM D 798 1.8 2.8
Hardness, Shore A ASTM D 2240  90 Nominal  90 Nominal
Stiffness, MPA ASTM 749 19.6 19.6
Tensile, PSA ASTM D 412 407 407
Elongation, % ASTM D 624 120 120
Tear, lbs/1" ASTM D 524 77
Temp Range (F) -40 - 255F (-40 - 124C) -40 - 255F (-40 - 124C)
STC 26 33
  Fire Rating (composite)

16 CFR Part 1630 - FF1-70/16

Part 1631 FF2-70

2010 Edition

Pass



For a printable version of Installation Instructions for Carpet Underlayment, please visit.

Premium Carpet Underlament is a recycled rubber mat that is meant for installation directly under a hard surface flooring product such as engineered wood, laminate, stone, tile or vinyl.  For floating floors such as engineered wood or laminate, adhesive is not required.

Job Site Requirements:

Before beginning the installation below, all areas to receive underlayment should be weather tight and have a constant temperature of at least 50 degrees Fahrenheit for 48 hours before, during and after installation.

Subfloor Requirements:

Premium Underlayment can be installed over concrete, self-leveling materials, OSB and plywood.  Subfloor should be smooth and free of defects, cracks or moving joints to prevent transmission to flooring.  Surface to be flat to 4mm (3/16") across any 300mm (12") section.  Grind all high spots and fill indentations with approved self-leveling compound to meet flatness requirements.

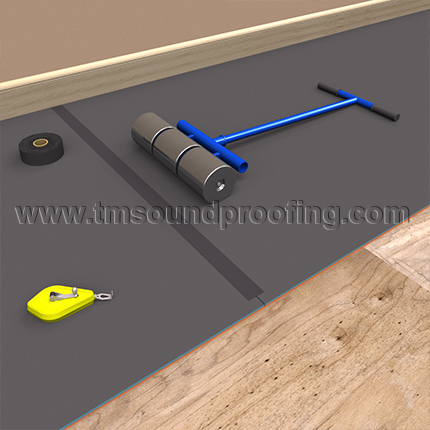

Floating Installation:

1.  Allow Carpet Underlayment to acclimate to the room for one day prior to installation.

2.  Using a chalk line, snap a line perpendicular to the longest wall in the room and establish a straight point of reference for the installation of the underlayment.

3.   Cut the underlayment to the proper length and trim for any penetrations or wall angles.

4.  Place the underlayment along the snap line, cut the adjacent piece, trim it and lay adjacent to the first piece.

5.  Roll with 100 lb. roller to remove any air bubble.

6.  Tape all seams with an Acoustic tape.

Underlayment for Floating Floors

Adhesive or Thin-Set Installation: (not required for floated floor)

1.  Allow carpet underlayment to acclimate to the room for one day prior to installation.

2.  Using a chalk line, snap a line perpendicular to the longest wall in the room and establish a straight point of reference for installation.

3.  Cut the underlayment to the proper length and trim it for any penetrations or wall angles.

4.  Place carpet underlayment along the snap line, cut the adjacent piece, trim it and place it adjacent to the first piece.

5.  Fold each piece in half and apply the mastic to the area under the carpet underlayment using a 0.125" "V" notched trowel.  Apply adhesive perpendicular to the seams.

6.  Place the material so that no bubbles or waves are seen in the area by unfolding the underlayment into the wet mastic.  Assure that no air is trapped below.

7.  Repeat this installation for the second half of the underlayment by folding in the other half sheet; trowel the mastic under and place the second half into the wet adhesive mastic.

8.  Repeat this process until the room is completely covered.  Assure the space around the room is no greater than a 0.25" space between the wall the underlayment.

9.  Assure that all mastic is installed to a uniform thickness as puddles or differences in thickness can telegraph through the sound mat.

10.  Wipe any excess mastic from the topside of seams while working.

11.  Roll with 100 lb. roller to remove any air bubbles or adhesive inconsistencies.

12.  Allow install to cure for 24 hours.

Carpet Underlayment Application

Finished Flooring Installation:

For all flooring types:  Follow the manufacturer's installation instructions.  Use their recommended materials.  Do not use mechanical fasteners through the underlayment as this will negate the acoustical performance of the system.

TILE:

1.  Follow all manufacturer and Tile Council of North America recommendations for installation including adhesives and accessories.

2.  Tile and grout should not be in contact with any wall, penetration and no penetrations should be made through the underlayment to the sub floor, including for expansion joints.

3.  If cement backer board is required, glue it to the underlayment with the recommended adhesive or mortar.

4.  If crack suppression is required, glue it to the underlayment with the recommended adhesive.

ENGINEERED WOOD:

1.  Engineered wood can be floated.  Glue is not required.

2.  For engineered wood that must be glued, follow installation instructions from the manufacturer and from the Hard Wood Flooring Association.

3.   Wood or laminate should not come in contact with any walls or penetrations, and no penetrations should be made through the underlayment to the sub floor.

VINYL:

1.  Follow all manufacturer recommendations for procedures and installation including adhesives.

2.  Apply a thin layer of moisture cure urethane to top of underlayment and allow curing before applying vinyl manufacturer's recommended adhesive.

3.  Apply adhesive to cured thin layer or urethane.  Can be moisture cure urethane with a 1/32" trowel or adhesive recommended by flooring manufacturer.

4.  Follow flooring manufacturer recommendations for installation over a resilient material.

5.  Test all proposed installations to determine if the vinyl flooring/underlayment assembly is able to resist indentation by heavy appliances, furniture etc.  For installations using underlayment in thickness greater than 2 mm, consult with vinyl manufacturer to determine if vinyl installation is permitted.


Carpet Underlayment for Vinyl Floors

Carpet Underlayment for Tiled Floors

Baseboard Installation:

1.   Trim perimeter isolation strip to top of finished flooring.

2.  Install baseboard to wall but do not allow to contact flooring as this will negate the acoustical performance of underlayment.

3.  Seal perimeter with a non-hardening acoustical caulk.



Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • Product usually ships within 3-5 days.
    • FREE SHIPPING on this product - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
  • Returns:
    • This product is NOT eligible for returns.

: *
: *
: *

Send to friend

Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
pros
  • Great Overall Soundproofing (1)
cons
best uses

Reviewed by 1 customers

Displaying reviews 1-1

By mike

from Philadelphia area

Verified buyer
5.0
really blocks sound
07/29/16
pros
  • Great Overall Soundproofing
cons
best uses
Comments about Premium Carpet Underlayment:
We have finished a garage as a bedroom. It is right under wood decking and joists of other bedrooms. Without the underlayment you hear every sound and thump as if in the room with you. With the underlayment, the same noises are heavily muffled - unbelievable difference, and I'm ordering more despite the price. It's also makes walking on the area carpets more comfortable.
Bottom Line Yes, I would recommend this to a friend
Displaying reviews 1-1

Customers Questions and Answers

1) Antonia: Not sure which density is most appropriate for the carpet underlay. I have noise coming from the apartment below me. Noises include: - talking, kids screaming - stereo (mostly drums & bass but also the rest of the music [singing, other instruments] if the volume is high enough] - kids jumping and roughhousing - TV/video games

Trademark Soundproofing Reply: Hi Antonia. The heavier 2 pound density would be better however not twice as good rather more like 20 percent better. The most popular density we sell is the 1 pound with half inch foam. Thank You

2) Mike: Could this be used under outdoor carpet on an elevated deck that sees rain from time to time?

Trademark Soundproofing Reply: Hi Mike, Rain from time to time is OK as this is a closed cell foam product.

3) nancy: Which is most recommended to try and block downstairs noise from coming up? This or MLV? Wall to wall carpeting will be installed over it. The noise coming up through floor is tv, voices and doors. I currently have wall to wall carpeting with a pad underneath, which does not block any noise.

Trademark Soundproofing Reply: Hi Nancy, The premium carpet underlayment will do a better job as it has the absorptive foam decoupling between the floor and the MLV that is bonded to it.

4) Lorraine P: would like more information on premium carpet underlayment and pricing

Trademark Soundproofing Reply:

Hi Lorraine. Here are some PDF links. Let us know if you need any other info. Pricing is on the product page if you would like help with estimating the price please give us a call or email us. Thank you.

http://www.tmsoundproofing.com/products/carpetunderlayment/PRODUCTDATA.pdf

http://www.tmsoundproofing.com/products/carpetunderlayment/UnderlayInstallationInstructions.pdf

5) Dave: I am looking for sound dampening underlay. The unit above our condo replaced carpet with laminate. However now there is an increase in impact noise. They put down area carpets but no proper underlay. Can you suggest something and if have a solution to ship to Canada?

Trademark Soundproofing Reply: Many of our customers use the premium carpet underlayment for area rugs.

6) Chip P: Regarding the premium carpet underlayment. Is the foam closed cell? I want to use it on a boat but can't have something that soaks up water. Thanks!

Trademark Soundproofing Reply: Yes this is a closed cell and is used on boats many times.

7) Juliana T: we have an old house that is split into an upstairs and a downstairs apartment where we do short term rentals. We have hard wood throughout and we are looking to reduce as much sound as possible without doing anything loony and expensive. we have a lot of recess lighting in the apartment below, we also have exposed beams in one area, where there is definitely a lot of traffic above (its the living room). I am thinking about putting an area rug in that living room and wanted to know if this product would reduce some of the noise. I know this wont be 100% but it might reduce it some? how much would i need for a 8x10 area rug, or a 9x12 area rug (i have to go sure up some measurements) could i have prices for both sizes. Also, would you suggest doing something about insulating the recessed lighting as well? will that really make much of a difference if we have many other issues? thank you, Juliana trigoso

Trademark Soundproofing Reply: Hi Juliana, This product comes in 4 foot wide rolls so just choose the quantity which equals the length. There are different variations once you choose them and the size the price will show in your shopping cart. If possible cover the entire floor for better results.

8) Jason B: I have a 322 sq ft L shaped room with wood floors that is above the living room and is used by my 10 year old son. I am looking to soundproof and carpet over the wood floors. How much of this product would I need. 14 x 8; and 20 x 10. Thanks

Trademark Soundproofing Reply: Hi you need 78 feet by 4 feet wide plus 10 percent for waste. So you would choose quantity 85.

9) Jacqueline W: Is this product available in Canada?

Trademark Soundproofing Reply: We ship to Canada. Please email or give us a call. Thank you.

10) Glen L: Does the 2 lb density provide better sound reduction that the 1 lb density

Trademark Soundproofing Reply: Yes it does. About 4-6 STC points

11) Erwin: hello, I am interested in the product 'premium carpet underlayment, but I do not understand that size and density measures. Can you explain this, what is the thickness of the foam and the vinyl barrier ? Many thanks, Erwin

Trademark Soundproofing Reply: 1 pound density is 1/8" thick for the barrier and the 2 pound density is 1/4" thick for the barrier. You can also choose either a 1/4" or 1/2" thickness for the foam. Use the drop down menu on the page to choose your thickness - the total thickness is shown at the end of each line.

12) Karen Chesney: What is the right thickness under an indoor/outdoor carpet for maximum soundproofing?

Trademark Soundproofing Reply: The thicker the better. The most popular one is the half inch foam with the 1/8 barrier.

13) chad: Is the price per linear foot or by roll?

Trademark Soundproofing Reply: Per linear foot.
