TM Soundproofing Floor Soundproofing Rubber Underlayment for Floors
Rubber Underlayment for Floors
Click on arrows to scroll through images
Click on image to enlarge

Rubber Underlayment for Floors

0.0

TMS rubber floor underlayment is a high quality performance acoustic underlayment made from rubber material which is designed to provide a resilient layer to reduce the passage of impact transmission noise. For use under ceramic tile, stone, solid hardwood, engineered hardwood and laminate flooring. Made in the USA.

SOLD PER ROLL

Price: $149.99
SKUSHS200
Made in USA
Dimensions:
Quantity:

High-performance acoustic rubber floor underlayment - designed to minimize impact transmission noise in floors and ceilings. Recycled rubber material provides a resilient layer within the flooring assembly to inhibit impact sound transmission ex: people walking overhead.

For use with: Engineered and solid hardwood, stone, ceramic tile and laminate flooring.

Applications:Can be used in any area where impact noise transmission is a concern ex: Classrooms, hospitals, dormitories and apartments.



Materials: Made from recycled SBR tire rubber. GreenCircle certified can potentially qualify for up to 8 LEED points.

Thicknesses: Available in 2mm, 3 mm, 5mm, 6mm, 10mm and 12 mm thicknesses.

Acoustical properties: IIC rating from IIC 50 to IIC74 range based upon the floor ceiling assembly and choice of floor covering.

LEED Credits: TMS Floor Underlayment can contribute to help floor-ceiling assemblies obtain a minimum STP and IIC rating of 55 with their sound absorption properties.

Features:

  • Easy to install
  • Made in the USA
  • Durable and Resilient
  • Reduces premature wear and sound transmission.
  • Offers superior sound impact insulation under hard surface floors.
  • Made from 100% post-consumer recycled waste
  • Qualifies for LEED credits

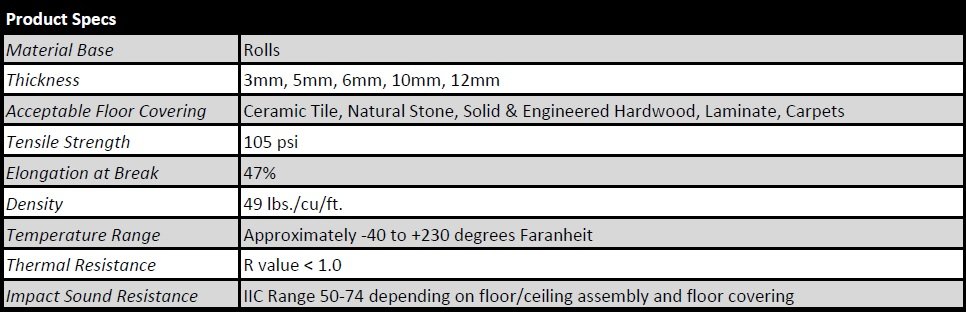

  • See Product Data Tab for additional information

How to Order:

When figuring out how much underlayment is needed, add an additional 5-10% to the area of the room to allow for wastage while installing. Choose from our 5 thickness options of 3mm, 5mm, 6mm, 10mm and 12mm. Available in roll form, 4' wide and 25' feet long (2mm and 3mm thickness is 50' long.)

This product qualifies for FREE SHIPPING! See Shipping and Returns Tab above for additional information.

Click here to view more of our quality Floor Soundproofing products.

Printable Documents:

Click to Print Installation Instructions for Rubber Underlayment for Floors.

Installation Under Hardwood Floors:

Both the underlayment and flooring material need to be left in their packaging before installing for a minimum of 48 hours at a temperature of at least 66 degrees Fahrenheit. Pre-installation, check that the sub floor is dry and free of grease, dirt or other matter. Concrete should be free of efflorescence and have no hydrostatic pressure. Sub floor moisture percentage should not exceed manufacturers recommendations of 5 LB. per 1,000 square feet over 24 hours or RH of 85%.

Installation Under Wood Flooring:

Ensure that sub floor is leveled, sound and clean. Plywood sub flooring should be a good grade. Variations in floor level over 1/8" within 3 ft. span needs to be leveled prior to installation. nails and/or protrusions should be removed or smoothed down. Sub floor should have L360 for deflection.

Installation Under Concrete Slab:

Concrete sub floor must be free of any open cracks and filled with high grade patch. Any excess residue or concrete lumps must be removed as they may interfere with proper installation of underlayment. Concrete slab must be permanently dry. If moisture in slab is too high, a good quality concrete waterproof sealer may be needed.

Glue Down Hardwood Installation:

Underlayment must be adhered properly to the sub floor. Recommended adhesives include PU350, Bostik Best, Sika 255 and Mapei ECO 980. Use 1/8" x 1/8"x3/16" V notched trowel (ensure that adhesive is transferred 100%, if not a larger trowel may be needed.) Rubber underlayment should be installed in the opposite direction to the hardwood floor. Start at one end of the room and roll out underlayment ensuring that it is flush to the walls. Roll up the roll halfway and spread adhesive on exposed area, roll underlayment back over adhesive. Smooth air pockets with a flat trowel. Apply the rest of the underlayment in the same manner until entire area is covered. Ensure that edges are tightly butted together in all areas. Use a 50-100 lb roller to bond underlayment to sub floor. Once adhesive is cured (around 8 hours), install glue down hardwood flooring using the same adhesive as the bond coat and following manufacturer's instructions. It is best to install baseboard slightly off floor to avoid flanking path.

Floated Hardwood Installation:

Rubber should be installed in the opposite direction of the hardwood floor. Start at one end of the room and roll out underlayment ensuring that it is flush to the walls. Repeat the process with all remaining rolls until the area is covered. Seams can be taped but it is not necessary for standard installation. Install the floated engineered hardwood per the manufacturer's instructions. Baseboard should be installed slightly off floor to avoid flanking path.

Installation of Underlayment Under Ceramic Tile:

Underlayment must be adhered to the sub floor with a bond coat adhesive ex: TRUESET. Use a 1/16"x16" square-notched trowel (larger size trowel may be needed in some conditions). Check at intervals for 100% transfer of adhesive. Start at one end and roll out underlayment ensuring that it is flush with the walls. Roll back up the roll halfway and spread adhesive on exposed area. Roll the underlayment over the adhesive. Check for air pockets and remove with a flat trowel. Install remaining underlayment in the same manner until area is covered. Ensure that edges are butted together tightly at all ends. Use a 50-100 lb. roller to ensure proper bonding between underlayment and sub floor. Perimeter isolation strips should be installed vertically on walls. Alternatively, leave a 3/16" gap around all perimeter walls which can then be filled with latex caulk (grout may not be used.) Once adhesive is fully cured (around 8 hours), install stone/tile flooring using a latex modified thin set (Laticrete 254 is recommended). The thin set must be keyed or burned into underlayment for proper bonding. Trim and grout isolation material flush with floor, hold trim board 1/16" off floor to avoid flanking paths.
