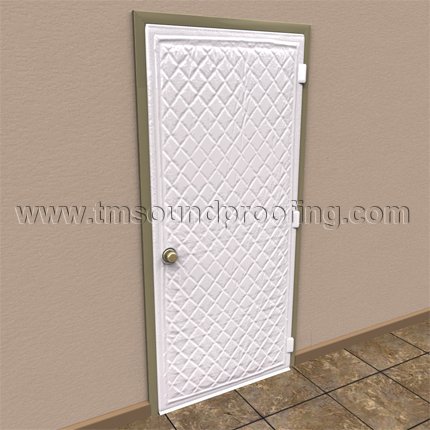

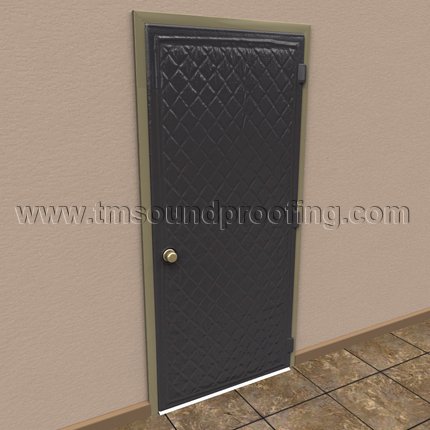

Door Panel Sound Barrier

Easy to install Noise Barrier Panel is Custom fitted to your door and applied directly to your door to greatly enhance soundproofing properties without replacing the door. Noise barrier combines Sound Barrier and Sound Absorption components for maximum soundproofing ability.

Price is for one panel with dimensions up to 48" x 96", with three custom cutouts for hinges and one custom cut for a door knob.

Free Shipping! See shipping and returns below for information.

Price: $549.00
SKUDS_SSBSC25DOOR_Gry
Weight 45.00 lbs
Made in USA
Dimensions:
Facing Color:
Quantity:

This custom made Door Panel Sound Barrier is directly applied to the door surface to greatly enhance soundproofing characteristics of the door.

Price is for one panel with dimensions up to 48" x 96", with three custom cutouts for hinges and one custom cut for a door knob. For additional sizes and cut-outs, contact us at 845-388-1200 for pricing and details.

Product Features:

  • Easily applied panel is ideal for retro-construction, when you are looking to avoid replacing a door, or to improve properties of a sound-rated door
  • This sound barrier is great for use as a divider wall when separating two noisy areas that require absorption, or anywhere where de-coupler, barrier or absorber is needed.
  • Applying a Door Panel Barrier eliminates additional costs for sound reduction products around the perimeter of the door.
  • Panel is easily applied and removed with a strong velcro
  • Material is made of Sound Barrier and Sound Absorption components for maximum effectiveness
  • Available in choice of colors
  • Custom Sized

How to Order:

Once order is placed you will be contacted by our office for exact dimension of door, with template of cut-out locations, see link below. [Note, we add an additional 2" on the top and two sides of the door to overlap the cracks around the door (We include these dimensions on our templates). This ensures a superior seal. If your door is not compatible with the added dimensions please state it on your template].

Custom Cut-Outs

Cut outs are provided for hinges, knobs and stops. Price above is for 3 hinges and a knob. Knob cut-out can also be cut in the field. A thinner material (B10-R), with .090" thickness, is placed by knob location, you put an "X" through it with a razor to allow knob to push through. Click here to view a sample template. Additional cut-outs may change pricing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Sample Template for exact measurements.

Additional Products to Consider:

This product qualifies for FREE SHIPPING, see shipping and returns tab to the right for information.

Click to Print Material Data Sheet

About the Material:



The Barrier Septum Composite (BSC) is a non-reinforced loaded vinyl noise barrier, sandwiched between two layers of fiberglass. Ideally suited as an acoustical liner, the inner layer of the quilted fiberglass decouples the barrier from the surface to improve its noise blocking ability while the outer layer adds sound absorption to the treated environment. Exterior material is a standard industrial vinyl facing, available in gray, tan, white or black.

  • Combines noise barrier and sound absorption
  • STC: 29 (see product data)
  • NRC: .75 (see product data)
  • Fire Rating: safe and low smoke emissions as per Class A flammability rating (per ASTM E-84 )
    • Flame Spread: 22.78
    • Smoke Density: 30.56
  • Temperature Range: -20F to +180F
  • Weight: 1.43 LB / sq ft
  • Resists most chemicals
  • Durable and flexible, conforms to any shape
  • For interior applications
  • Easy installation and removal for cleaning

Acoustical Performace:


Acoustic Performance for BSC-25 Window and Door Panel Barrier

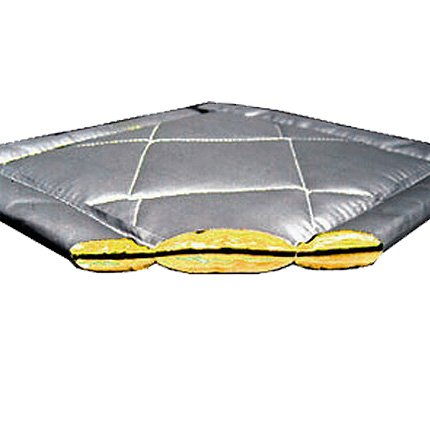

Cross Section of Material:


 Cross Section Image for Door Panel Sound Barrier

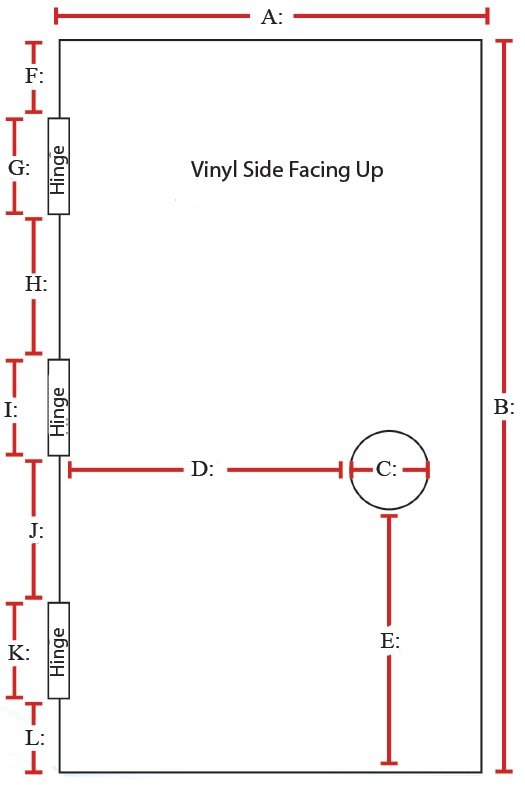

Sample Door Template with Custom-Cutouts:

Note About Handing: Left Handed Template should be used on Left Handed Door if panel is applied to the BACK of the door. If panel will be applied to the front of the door (Push Side), please use Right Handed Template.



Right Handed Template
Click to Download Right Handed Template
Left Handed Template
Click to Download Left Handed Template
Note About Handing:
Right Handed Template should be used on Right Handed Door if panel is applied to the BACK of the door. If panel will be applied to the front of the door (Push Side), please use Left Handed Template.

Note About Handing:
Left Handed Template should be used on Left Handed Door if panel is applied to the BACK of the door. If panel will be applied to the front of the door (Push Side), please use Right Handed Template.

Door Panel Barrier Sample Template for Right Handed Doors Door Panel Barrier Sample Template for Left Handed Doors





Shipping and Return information is specific to this product page only (not for other products on our site).

  • Shipping:
    • As this product is custom cut, please allow 2-3 weeks to ship, after your custom template has been approved.
    • FREE SHIPPING on this product - Applies to orders shipped within the USA (excluding Alaska and Hawaii).
    • Ships FedEx Ground.

  • Returns:
    • This door hardware is custom cut and NOT eligible for returns.
: *
: *
: *

Send to friend

Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
pros
  • Easy To Install (1)
cons
best uses
  • Interior Doors (1)

Reviewed by 1 customers

Displaying reviews 1-1

By Treeks, float lover

from calgary, alberta, canada

About Me Beginner

Verified buyer
5.0
This is what I was looking for!
06/20/16
pros
  • Easy To Install
cons
best uses
  • Interior Doors
Comments about Door Panel Sound Barrier:
This product is incredible. I work in an extremely specialized industry that requires highly effective soundproofing to provide an exceptional experience. This door panel sound barrier was able to enhance the environment, elevating the other soundproofing components to optimized the whole performance of the room. An additional bonus, is it's ability to also block out light around the door encapsulating the space without distractions. The panel was extremely easy to work with and install.
Bottom Line Yes, I would recommend this to a friend
Displaying reviews 1-1

Customers Questions and Answers

1) Rizwan: Hi, what other colours does this product come in and what other styles? How much for shipping to the mainalnd UK. Will it fit round our door frame or does this just fit around the door? Does it cover the gap between the door frame and door and the gap between the door and the floor? Our door is 36 and 3/4 inches wide and 79 and 2/3 inches tall. this mearsurment is just the door and not including the door frame. Regards Riz

Trademark Soundproofing Reply:

Hi Riz, Colors available are, Gray, Tan, Black and White. There is only 1 style available, the one we show on the site. These panels are custom manufactured per order and can be made to any size you wish. Standard practice is to add 2 inches to the sides and top of the panel in order to cover the gap between the door and the frame. You can click and download a Door Template from the "Product Data" tab and fill that out per your specifications. For a shipping quote to the UK please contact sales@tmsoundproofing.com. There is usually a $1,000.00 minimum order required for international shipping.

2) Todd : In regard to your door panel sound barrier: can it be big enough to cover the sides and top and bottom upon closing or? Also if we decide to do more extensive soundproofing of rooms/doors do you have anyone you can reference out here in S CA? thank you Todd

Trademark Soundproofing Reply: Hi Todd. Yes, if you look at the door template we provide you will see that we add 2 inches of material to each side and the top to seal the gaps (we still recommend an automatic door bottom for the gap at the bottom). Please send an email to sales@tmsoundproofing.com with your address and scope of work and we will check our database to see if we have anyone to recommend in your area. Thank you

3) Brad: I've got at least one 29 3/4" X 80" interior door that needs a door panel sound barrier. Can you help? Thank you

Trademark Soundproofing Reply:

Hi Brad, Yes we can help you with that. These are custom made per order so just download and fill out the door template in the description. Give us a call if you need any additional help. Thanks.

4) Ellen: I have two arched shape 2" solid wood doors which need sound proofing to allow privacy for tenants sharing a laundry accessed by the arch doors coming from each apartment. Can your door panel sound barrier be made to fit an arch shaped door?

Trademark Soundproofing Reply: Hi Ellen. Our door panels are custom manufactured per order so we may be able to work with your design. Please send a drawing of the doorway to our sales department sales@tmsoundproofing.com and we will let you know if it can be done and at what cost. Thank You.

5) Brad C: Hello - my door panel sound barrier has just arrived, but without installation instructions. I'm not understanding how to use the velcro strip to apply the panel. Please reply with instructions

Trademark Soundproofing Reply:

Hi Brad, You would peel and stick the roll of commercial Velcro that should have come with your panel and apply it to the perimeter of the entire door. You would then attache the mating Velcro that is sewn onto the back of the panel to the Velcro that you attached to the door. Please give us a call if you need any further help. Thank You.

6) Tara R: fire retardant? Heat resistant?

Trademark Soundproofing Reply:

Hi Tara, Class A fire rated. Fiberglass filling should help with thermal as well. See MSDS sheet here http://www.tmsoundproofing.com/products/DoorPanel/MaterialDataSheet_BSC25.pdf

7) Chester E: Does this panel add an additional STC of 29 to the existing door, i.e. make a door rated an STC of 26 become a door rated an STC of 55? Thanks!

Trademark Soundproofing Reply: Hi Chester, It does not. The STC 29 is as a stand alone product.

8) Chester E: Can these be designed to accommodate both a doorknob and a deadbolt lock? Thanks!

Trademark Soundproofing Reply: Yes you can put those on the template.

9) David N: Do you cut out for a peep hole ? Not a huge loss if not ..

Trademark Soundproofing Reply: Hi David, Yes we can cut out a peep hole, you can put it on the template drawing.

10) Steve B: Good afternoon Sir or Ma'am, Is the product customizable to account for 1) a pair of double doors and the space and mechanisms between them and 2) a pair of external double doors with push-bars that are separated by a keyed mullion? Also, can the product be tailored to account for a window, and are there other options or products available to sound-proof that window and keep it transparent?

Trademark Soundproofing Reply: Hi Steve. Yes this is a customizable product and we can usually do any cut outs needed. We would need you to draw it up on our template and then we would send you a drawing before going to production. We can add a clear heavy duty mass loaded vinyl for the window section.

11) Molly P: Hello, I have level handles on my doors instead of a door knob. Can this door cover still work with those? ~Molly

Trademark Soundproofing Reply: Hi Molly. Yes it can be used for a lever too as there is a patch for the door handle which you cut on site in an X pattern and you you can poke the lever through in the same way as a knob.

12) Tait M: Is it better, in terms of sound blocking, to apply this to the push or pull side of the door? Thanks!

Trademark Soundproofing Reply: Either one is fine, however when you install on the pull side you can overlap the gaps between the door and jambs. We also recommend also soundproofing closer to the "source" of the noise.

13) dr. Stephen M: Can you please tell me the db attenuation of this barrier. My door already has a drop down skirt. thanks steve

Trademark Soundproofing Reply: About 7-15 db reduction over an existing door.

14) duncan: Hi, I wonder if you could tell me the STC rating for this? thanks

Trademark Soundproofing Reply: The panel on its own has an STC rating of 29. Please see the "Product Data" tab below.

15) Catherine K: Hello - I wish there was more than 1 review of this door sound barrier. It seems to be exactly what I want to keep noise out of my music studio. Do you know of any one else's experiences? Since it is made of vinyl, is there a lot of odor to it? This will be used in a residential family home with pets, and I hope that it is constructed with family-friendly materials. Thanks! Cathy Kuna

Trademark Soundproofing Reply:

I agree. Hopefully you will leave a review once you receive yours Laughing. While there are not yet that many reviews we have sold dozens of these door barriers with excellent feedback including many repeat orders. You can read some more reviews on the soundproof window panel which is essentially the same material in a different size and without the cut outs. This product is basically odor free and manufactured here in the US with family friendly materials.

16) TOMOKO Y: Hello, I would like to order this Door Panel Sound Barrier and I have a question. The description says I can get one custom cut for a door nob. However my door has one door and there is one more second lock above that. Are you able to do this custom order ? I will send a photo and exact size if you tell me your email address. Also if I have to pay extra fee, I will pay that of course. Because I live in Hawaii, so the shipping cost will be more than ship to mainland US. I really need one good sound barrier for the entrance door of my unit. Because my apartment's door is so old and it's made by old wood just like almost hollow inside. All the sound go through everyday, no privacy. I want to stop this. Thank you for your help and please let me know. Thank you. Sincerely Tomoko

Trademark Soundproofing Reply: Hi Tomoko. Yes we can do a 2nd cut out as well. If they are very close to each other it can be done with a single patch at no extra cost. Give us a call and we will be glad to assist you.
