Free Flow Acoustical Louver, Cartridge Design-40Y/80Y

THIS PRODUCT HAS BEEN DISCONTIUED. FOR SIMILAR PRODUCT PLEASE VIEW OUR:

ACOUSTIC VISION LITE - 4484

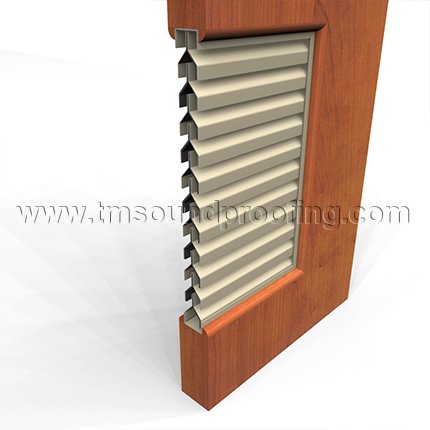

Vision Proof Acoustic Louver - 40YSTC/80YSTC are a 1" deep cartridge design louver for use in doors of any thickness.  Made of cold rolled galvannealed steel with inverted 20 or 24 gauge 'Y' design blades encased in a  20 gauge 'U' surround frame. Product can be fitted straight into a rough opening that is 1/8" wider and higher than order size, molding and installation screws are not provided.  Louver free area is approximately 43% of order size.

40YSTC/80YSTC Louvers are crafted with a layer of STC3003 lining for added acoustic properties.  STC3003 is a light-weight, high performance alternative to standard, conventional, sound-core materials.  It is nearly as effective as solid lead in stopping the transmission of sound between rooms and can dramatically increase STC values.

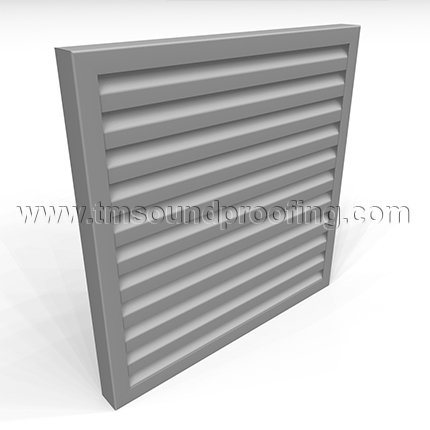

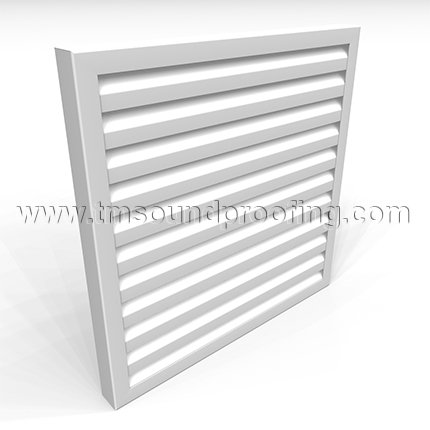

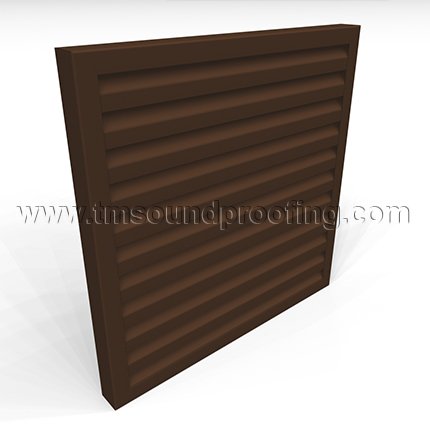

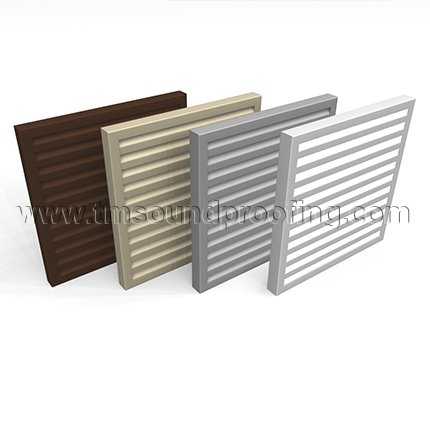

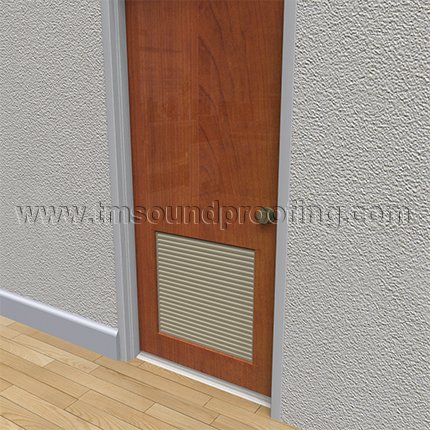

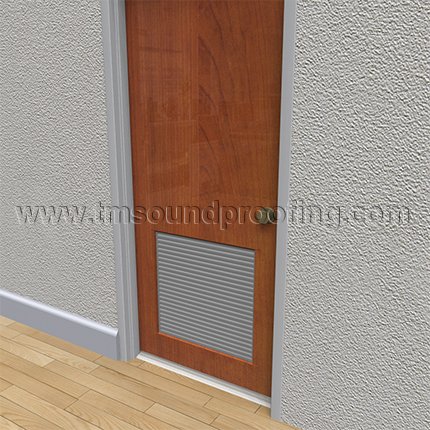

Choose from our four powder-coated finish options: Gray, White, Bronze and Beige.  Additional custom colors are available upon request.  Please contact us or call us at 845-388-1200 for pricing and details.   Insect screens may be ordered and are factory applied to the door louvers.

Features:

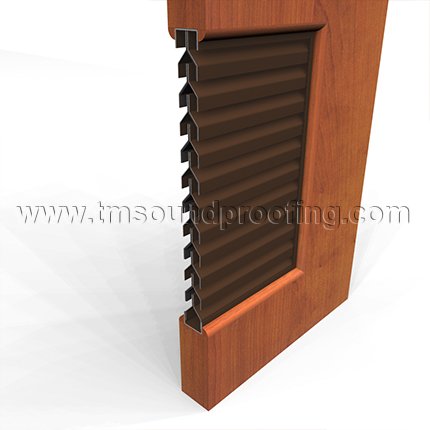

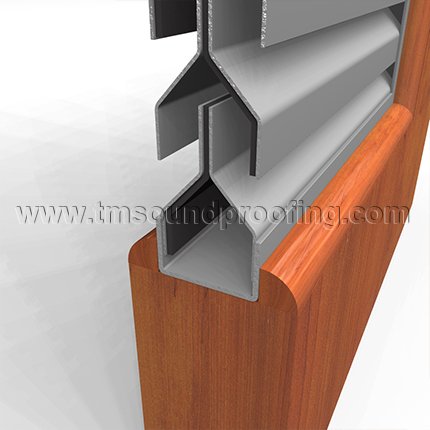

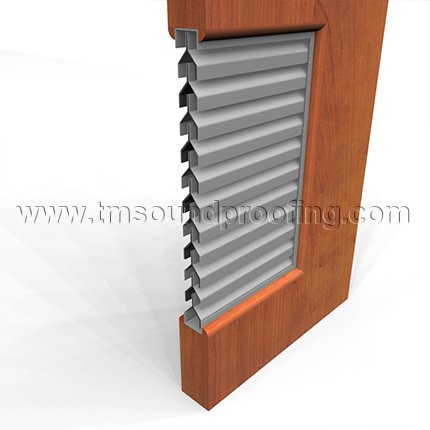

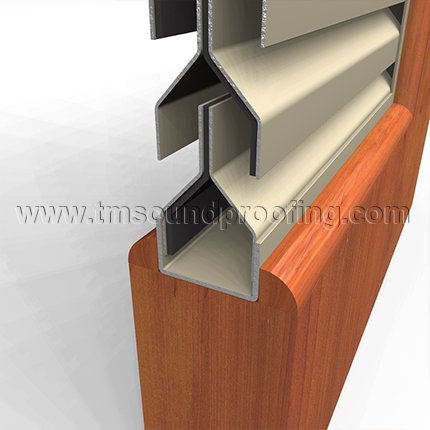

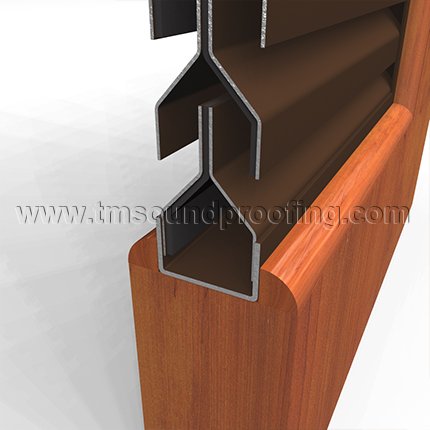

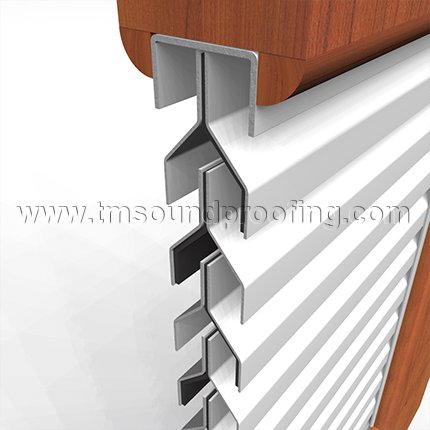

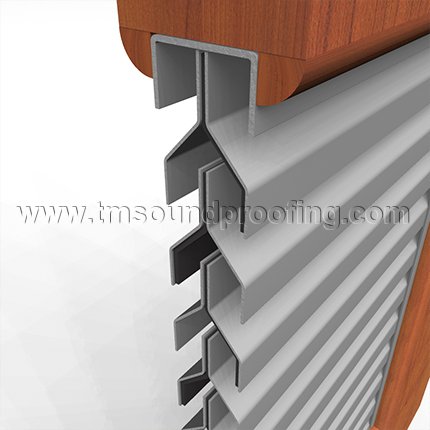

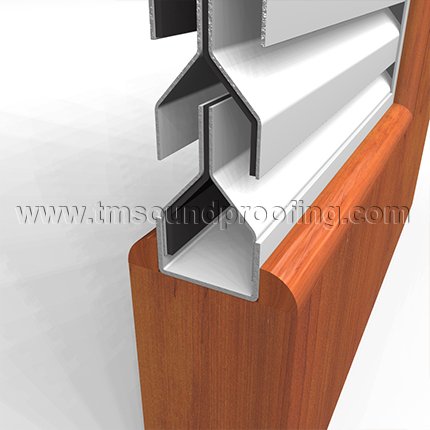

• Vision proof inverted "Y" design, with cold rolled galvannealed steel louver blades, 20 Gauge or 24 Gauge.  20 Gauge "U" channel surround
• Louver blade orientation blocks horizontal line of site for enhanced aesthetic and sound control properties.  Installed STC 3003 increases sound absorption with an STC rating of 19.

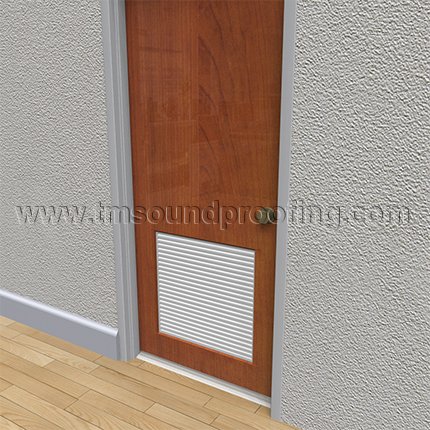

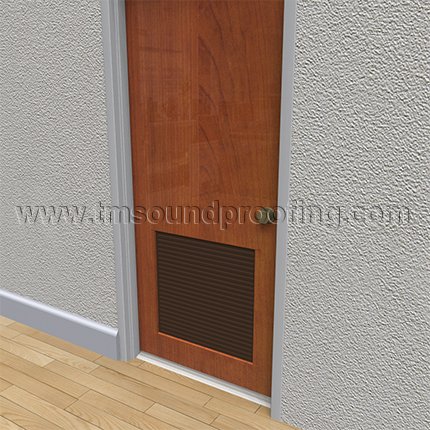

• For use with any metal or wood door.
• Supplied without frame, user supplies molding.
• Aluminum insect screen is available as a factory installed  option.  Screen is trapped between the louver core and the louver back frame.

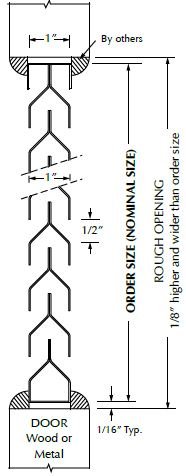

• Rough opening size is 1/8" wider and higher than order size.
• Louver free area is approximately 43% of the order size.
• Minimum order size: 6"x6", maximum order size: 40" x 84".  For sizes other than the listed choices, please contact us.

Order Size: Dimensions are of the nominal size.  See Product Specs for details.

Additional Sizing Available: Sizes available online are stock sizes.  Other sizes can be purchased.  Minimum order size 6"x6".  Maximum order size 40"x84". For details and pricing contact us or call us at 845-388-1200.

Additional Colors Available: Custom colors can be requested.  Please contact us or call us at 845-388-1200.

Addtional Options:  Factory applied insect screen can be applied for an additional charge.

Please note: Images are for illustrative purposes only.  They are not actual photos.  Therefore, actual colors may vary slightly and size may be enlarged to show detail.  See Product Data Tab for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
