THIS PRODUCT HAS BEEN DISCONTIUED. FOR SIMILAR PRODUCT PLEASE VIEW OUR:

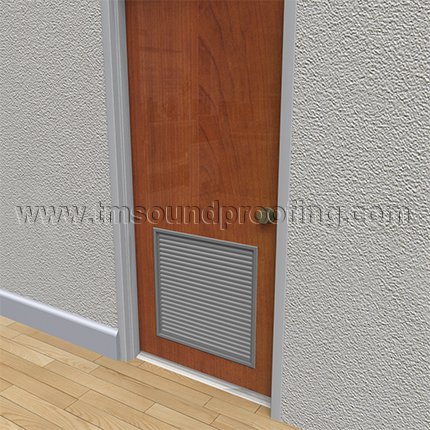

Door louvers provide an elegant finish to doors while allowing air to pass through. With Free Flow Vision Proof Acoustic Louvers, air and light can be introduced between rooms without compromising on soundproofing capabilities.
Free Flow Vision Proof Acoustical Louvers - 200STC are made from galvannealed steel which results fom hot-dipping (galvanizing) steel and then an immediate in-line annealing which gives a very fine, grayish matte finish. Galvannealed steel offers good corrosion resistance, is easy to paint and is rust resistant (great for areas of high moisture).

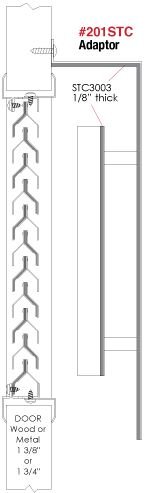

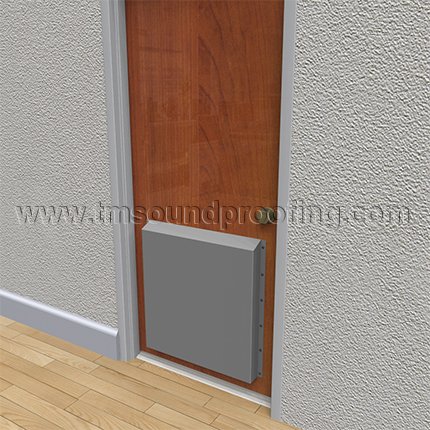

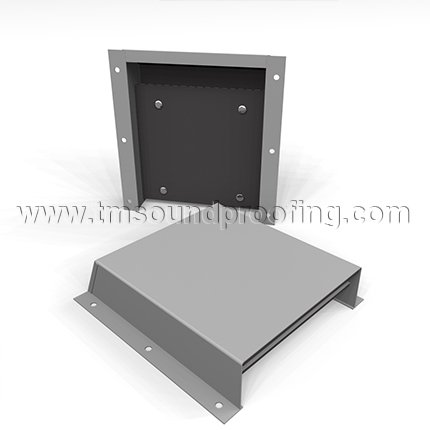

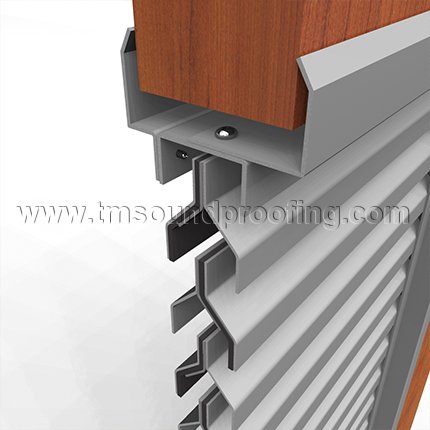

Free Flow Louver -200STC is designed with an inverted Y design. It is a Vision-proof louver made with a 0.062" thick STC 3003 sheet which can add up to 9 STC points. In addition, the 201 STC adaptor can be ordered (at addtional cost) for added soundproofing capabilities for a total of 16 STC points over standard door louvers. 201 STC adaptors attach to the back of a door, covering the back part of the door louver and have a 0.062" thick STC 3003 sheet for added acoustic properties.
Louvers are supplied with Gray Powder Coat. Dark Bronze and Beige are available upon request (at additional charge). The front frame is attached to the lower core with concealed screws, for aesthetic purposes.
Order Size: Dimensions of the nominal size. See Product Specs.
Additional Sizing Available: Sizes available online are stock sizes. Other sizes can be purchased with the following dimensions: Width-6" to 36", Length- 6" to 72". For details and pricing contact us or call us at 845-388-1200.
Additional Colors Available: Custom colors can be requested. Please contact us or call us at 845-388-1200.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Printable Documents |
For a printable version of Product Data for Acoustical Door Louver -200STC |
Acoustic Properties |
Product Specs and Dimensions |
Printable Documents |
For a printable version of Installation Instructions for 200STC Acoustical Louvers, click here. |

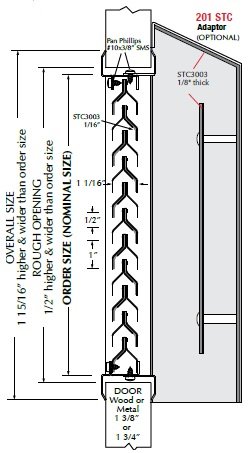

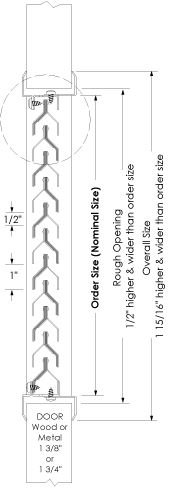

Dimensions |
Installation Instructions |
Step 1: Cut the hole in the door to correspond to the rough opening size of the louvers frame (1/2" higher and wider than the order size). Prepare the cutout if required, per the door manufacturers installation instructions. Step 2: Insert frames in the cutout, the corridor side/exterior first, then the room side/interior. Step 3: Secure with screws provided. Screw in enough to hold frame for alignment then tighten the screws alternately to avoid putting more pressure on one side than the other. |
